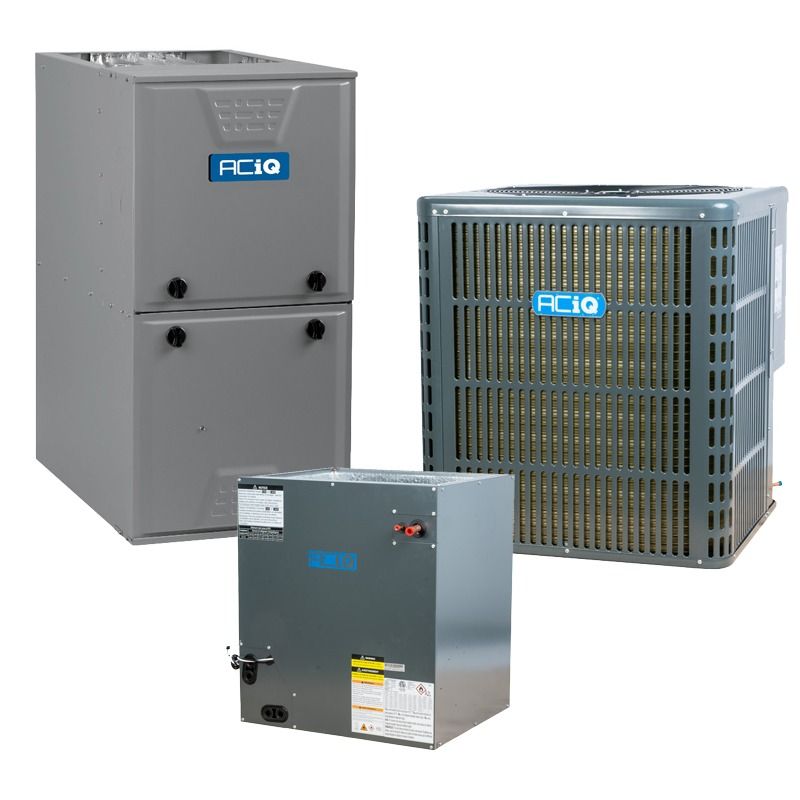

Aciq AC-I-48AC14 4 Ton 14 SEER2 120,000 BTU Furnace and AC System (Multi-Positional) N96MSN1202422A

Product Description

The Aciq AC-I-48AC14 / AC-I-4860ACL-24 / N96MSN1202422A is a matched 4-ton split HVAC system combining a R32 condenser, a 120,000 BTU 96% AFUE single-stage natural gas furnace, and a multi-positional evaporator coil. The condenser is rated near 14 SEER2 with a scroll compressor and a factory refrigerant charge; the furnace features an ECM blower and is field-convertible to propane. The coil includes a factory-installed TXV for refrigerant metering.

• Condenser: 48,000 BTU cooling capacity, 13.8 SEER2, 11.7 EER2, scroll compressor, pre-charged with R32 (91.71 oz), ~60 dBA
• Furnace: 120,000 BTU, 96% AFUE, ECM blower, single-stage, multi-positional (upflow/downflow/horizontal), field-convertible to propane
• Evaporator coil: multi-positional cased coil, all-aluminum construction, factory-installed TXV

Product Highlights

Matched 4-ton R32 split system with multi-positional components and extended component warranties.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: AC-I-48AC14 / AC-I-4860ACL-24 / N96MSN1202422A
• Country of Origin: China

Technical Specifications

• Brand: Aciq
• Model / MPN: AC-I-48AC14 / AC-I-4860ACL-24 / N96MSN1202422A
• System Type: Matched split HVAC system (condenser, evaporator coil, furnace)
• Tonnage: 4 Ton
• SEER2 Rating: 13.8
• EER2: 11.7
• Refrigerant: R32
• Refrigerant Charge: 91.71 oz
• Cooling Capacity: 48,000 BTU
• Heating Capacity: 120,000 BTU
• AFUE: 96%
• Compressor Type: Scroll
• Number of Compressors: 1
• Cooling Stage: Single-stage
• Heating Stage: Single-stage
• Power Phase: 1 Phase
• Condenser Electrical: 208/230V 1 Phase 60 Hz
• Condenser Breaker Size Minimum: 27 Amps
• Condenser Breaker Size Maximum: 40 Amps
• Furnace Input Voltage: 115V
• Furnace Blower Motor: ECM
• Furnace Maximum CFM: 2105
• Furnace Configuration: Multi-positional (upflow/downflow/horizontal)
• Furnace Burner Stages: Single
• Furnace Fuel Type: Natural Gas (field-convertible to Propane)
• Furnace Dimensions (H x W x D): 35 in x 24.5 in x 29.5 in
• Coil Model: AC-I-4860ACL-24
• Coil Tonnage Range: 3.5 to 5 Ton
• Coil Dimensions (H x W x D): 27.8 in x 24.5 in x 21.02 in
• Coil Construction: All-aluminum with factory-installed TXV
• Condenser Sound Level: Approximately 60 dBA
• AHRI Certificate Number: 213148763
• Energy Star Certified: Yes
• Equivalents: Carrier 59SC5B120E24--22; Tempstar TN96MSN1202422A; Bryant 915SB60120E24
