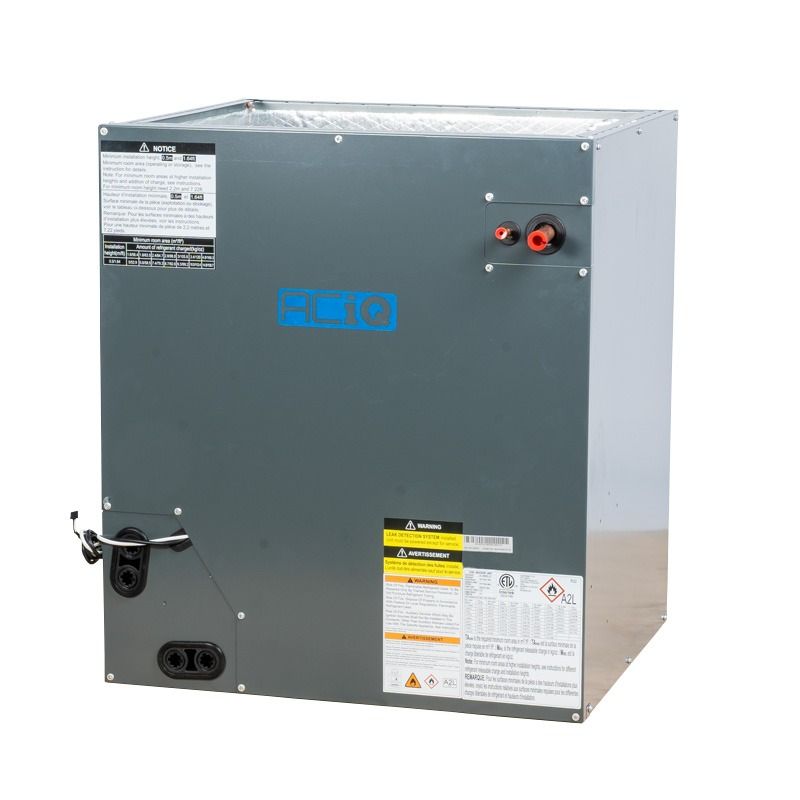

Aciq AC-I-4860ACL-24 3.5 to 5 Ton Evaporator Coil 24.5 Inch Width Multi-Positional

Product Description

The Aciq AC-I-4860ACL-24 is a cased evaporator coil designed for 3.5 to 5 ton systems and supports multi-position installation (upflow, downflow, horizontal). It features all-aluminum construction, a factory-installed thermal expansion valve (TXV), and compatibility with R32 refrigerant. The unit includes a leak mitigation control kit, is AHRI certified, and has a 24.5 inch cabinet width to align with common furnace sizes.

• Multi-position installation for upflow, downflow, and horizontal applications; cased A-coil design.
• All-aluminum construction with factory-installed TXV; compatible with R32 refrigerant and includes leak mitigation control kit.
• 24.5 in cabinet width; liquid line 3/8 in, suction line 3/4 in; dimensions 27.8 x 24.5 x 21.02 in; weight 100 lb; AHRI certified.

Product Highlights

Cased A-coil for 3.5–5 ton systems with all-aluminum construction, factory TXV, R32 compatibility, and multi-position installation.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: AC-I-4860ACL-24

Technical Specifications

• Brand: Aciq
• MPN: AC-I-4860ACL-24
• Product Type: Cased evaporator coil (A-coil)
• Tonnage: 3.5 to 5 Ton
• Mounting Type: Multi-position (upflow, downflow, horizontal)
• Construction: All-aluminum
• Factory-installed valve: Thermal expansion valve (TXV)
• Refrigerant: R32
• Leak mitigation control kit: Included
• Cabinet Width: 24.5 in
• Height: 27.8 in
• Depth: 21.02 in
• Liquid Line Size: 3/8 in
• Suction Line Size: 3/4 in
• Weight: 100 lb
• AHRI Certified: Yes
