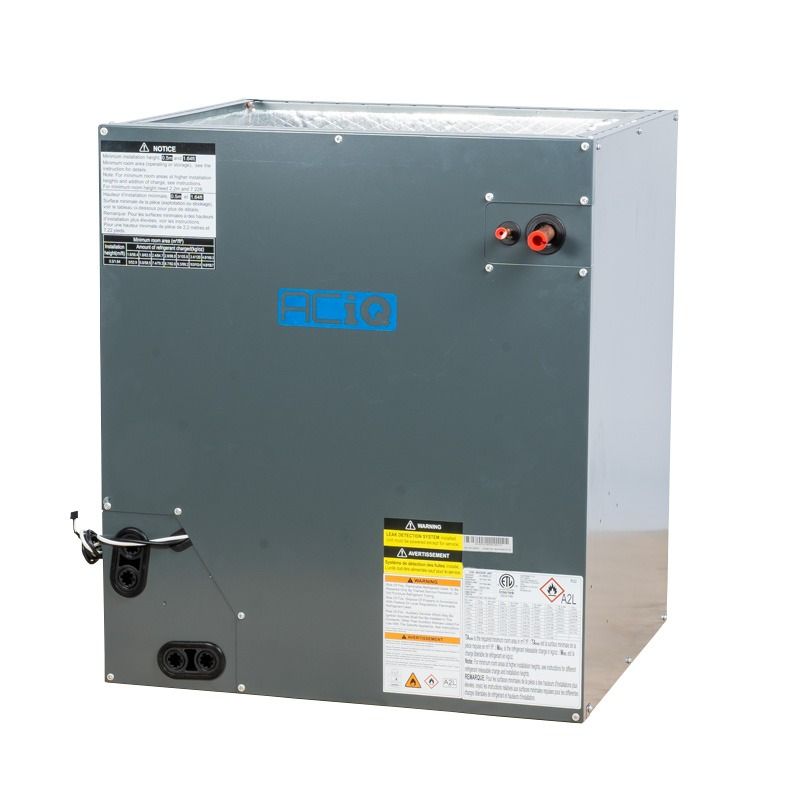

Aciq AC-I-4860ACL-21 Evaporator coil 3.5-5 Ton (21 inches width)

Product Description

The ACiQ AC-I-4860ACL-21 is a cased evaporator coil engineered for 3.5 to 5 ton HVAC systems, providing multi-positional installation for upflow, downflow, and horizontal configurations. It features all-aluminum construction, a factory-installed thermal expansion valve (TXV), compatibility with R32 refrigerant including a leak mitigation control kit, and a 21" cabinet width to fit common furnace sizes. AHRI certification applies when paired with compatible ACiQ equipment.

• Multi-position design supports upflow, downflow, and horizontal installations for 3.5–5 ton systems.
• All-aluminum construction with factory-installed thermal expansion valve (TXV) and R32 compatibility (includes leak mitigation control kit).
• 21" cased A-coil cabinet; dimensions 27.80" x 21" x 21.02" (H x W x D); liquid line 3/8" and suction line 3/4"; weight 87 lb.

Product Highlights

Cased 21" A-coil for 3.5–5 ton systems, factory TXV, R32 compatible.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: AC-I-4860ACL-21

Technical Specifications

• Brand: ACiQ
• Manufacturer Part Number: AC-I-4860ACL-21
• Product Type: Cased evaporator coil
• Style: A-Coil
• Tonnage: 3.5 to 5 Ton
• Cabinet Width: 21"
• Dimensions (H x W x D): 27.80" x 21" x 21.02" (inches)
• Weight: 87 lb
• Refrigerant: R32 (includes leak mitigation control kit)
• Liquid Line Size: 3/8"
• Suction Line Size: 3/4"
• Construction: All-aluminum
• Installation Position: Upflow, downflow, horizontal (multi-position)
• Factory Installed Components: Thermal expansion valve (TXV)
• Certification: AHRI certified when paired with compatible ACiQ equipment
