Aciq AC-I-42AC14 / AC-I-4860ACL-24 / N96MSN1202422A 3.5 Ton 14.3 SEER2 96% AFUE 120,000 BTU Furnace and AC System (Multi-positional)

Product Description

ACiQ AC-I-42AC14 / AC-I-4860ACL-24 / N96MSN1202422A is a matched split-system combining a 3.5 ton 14.3 SEER2 R32 condenser, a 120,000 BTU 96% AFUE multi-positional gas furnace, and a 24.5" cased evaporator coil. The condenser operates on 208/230V single-phase power and is pre-charged for R32; the furnace features an ECM blower, onboard diagnostics, and field conversion to propane. The coil is multi-positional with factory TXV and R32 compatibility.

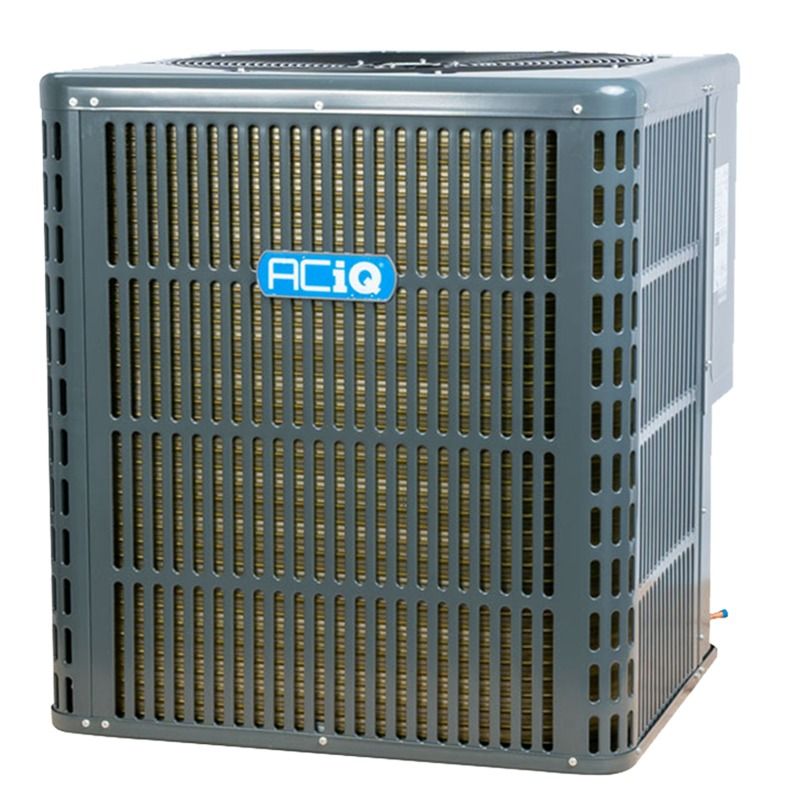

• Condenser: 42,000 BTU (3.5 ton), 14.3 SEER2, R32 refrigerant, rotary compressor, ~60 dBA, 208/230V 1 phase
• Furnace: 120,000 BTU, 96% AFUE, multi-positional (upflow/downflow/horizontal), ECM blower, single-stage burner, max 2105 CFM

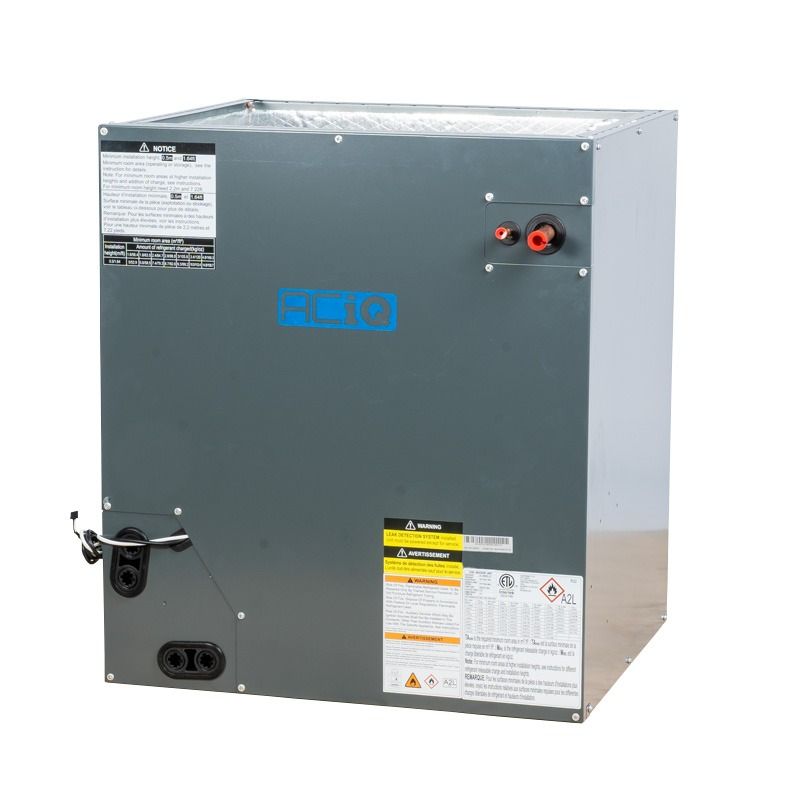

• Evaporator coil: 24.5" cased A-coil, compatible with R32, factory-installed TXV, liquid line 3/8", suction line 3/4"

Product Highlights

Matched 3.5 ton R32 split-system with 96% AFUE gas furnace, ECM blower, multi-positional cased coil, and factory R32 charging.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: AC-I-42AC14 / AC-I-4860ACL-24 / N96MSN1202422A

Technical Specifications

• Brand: ACiQ
• MPN: AC-I-42AC14 / AC-I-4860ACL-24 / N96MSN1202422A
• Model Kit ID: 225583
• System Type: Matched split-system (condenser, evaporator coil, furnace)
• Condenser Cooling Capacity: 42,000 BTU (3.5 Ton)
• Cooling SEER2: 14.3
• Refrigerant Type: R32 (A2L)
• Condenser Refrigerant Charge: 91.71 oz
• Condenser Compressor Type: Rotary
• Condenser Sound Level: 60 dBA (approx.)
• Input Voltage: 208/230V 1 Phase 60 Hz
• Condenser Max Breaker Size: 35 Amps
• Condenser Min Breaker Size: 25 Amps
• Condenser Dimensions: 32.87" H x 29.13" W x 29.13" D
• Condenser Weight: 168 lb
• Coil SKU: AC-I-4860ACL-24
• Coil Type: Cased A-coil, multi-positional
• Coil Cabinet Width: 24.5"
• Coil Compatibility: R32; includes leak mitigation kit; factory-installed TXV
• Coil Liquid Line Size: 3/8"
• Coil Suction Line Size: 3/4"
• Coil Height: 27.8"
• Coil Depth: 21.02"
• Coil Weight: 100 lb
• Furnace SKU: N96MSN1202422A
• Furnace Heating Capacity: 120,000 BTU
• Furnace AFUE: 96%
• Furnace Configuration: Upflow / Downflow / Horizontal (multi-positional)
• Furnace Blower Motor: ECM
• Furnace Maximum CFM: 2105
• Furnace Burner Stages: Single stage
• Furnace Fuel Type: Natural Gas; field-convertible to Propane with LP kit
• Furnace Dimensions: 35" H x 24.5" W x 29.5" D
• Furnace Weight: 179 lb
• Total System Weight: 447 lb
• AHRI Certificate Number: 213148763
• Equivalent Models: Carrier 59SC5B120E24--22; Tempstar TN96MSN1202422A; Bryant 915SB60120E24
• Tonnage Range (components): 3.5 to 5 Ton
• Condenser Tonnage: 3.5 Ton
• Condenser Electrical Phase: 1 Phase
• Energy Star Certification: Yes (furnace)
• Mounting Type: Outdoor condenser, indoor cased coil and multi-positional furnace
