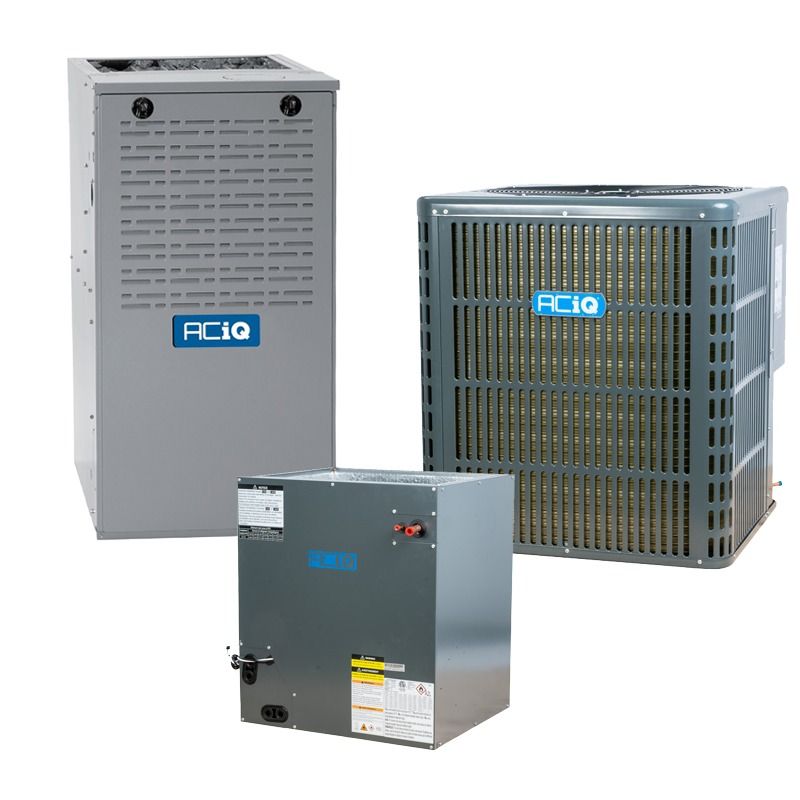

Aciq AC-I-42AC14 / AC-I-4860ACL-24 / N80MSN1552420A 3.5 Ton 14.3 SEER2 Furnace & AC System 154,000 BTU (24.5 in Coil)

Product Description

ACiQ AC-I-42AC14 / AC-I-4860ACL-24 / N80MSN1552420A is a matched furnace and air conditioner system combining a 3.5 ton 14.3 SEER2 R32 condenser, a multi-positional 154,000 BTU 80% AFUE gas furnace, and a cased multi-positional evaporator coil. The condenser is pre-charged with R32 and rated near 60 dBA; the furnace includes a multi 18-speed constant torque blower, direct ignition, and field conversion to propane. The coil includes a factory TXV and 3/8 in liquid and 3/4 in suction lines.

• Matched system: 42,000 BTU (3.5 ton) 14.3 SEER2 condenser, 154,000 BTU input 80% AFUE furnace, and cased multi-positional evaporator coil
• Condenser pre-charged with R32, operating near 60 dBA; electrical 208/230V 1 ph 60 Hz with 25–35 A breaker range
• Furnace multi-positional configuration with multi 18-speed constant torque blower, direct silicon nitride hot surface ignition, 115V electrical, and field-convertible to propane

Product Highlights

Matched 3.5 ton R32 condenser, cased multi-positional coil with factory TXV, and a 154,000 BTU 80% AFUE multi-positional gas furnace with multi-speed blower.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: AC-I-42AC14 / AC-I-4860ACL-24 / N80MSN1552420A

Technical Specifications

• Brand: ACiQ
• Model / MPN: AC-I-42AC14 / AC-I-4860ACL-24 / N80MSN1552420A
• System Type: Matched Furnace & Air Conditioner System (Condenser + Furnace + Evaporator Coil)
• Condenser SKU: AC-I-42AC14
• Condenser Cooling Capacity: 42,000 BTU
• Condenser Tonnage: 3.5 Ton
• Condenser SEER2: 14.3
• Condenser EER2: 11.7
• Condenser Refrigerant: R32 (pre-charged)
• Condenser Sound Level: 60 dBA (approximate)
• Condenser Electrical: 208/230V 1 Phase 60 Hz
• Condenser Min Breaker Size: 25 Amps
• Condenser Max Breaker Size: 35 Amps
• Condenser Dimensions (H x W x D): 32.87 in x 29.13 in x 29.13 in
• Coil SKU: AC-I-4860ACL-24
• Coil Style: Cased multi-positional evaporator coil (A-coil)
• Coil Tonnage Range: 3.5 to 5 Ton (compatible with listed condenser)
• Coil Cabinet Width: 24.5 in
• Coil Height: 27.8 in
• Coil Depth: 21.02 in
• Coil Liquid Line Size: 3/8 in
• Coil Suction Line Size: 3/4 in
• Furnace SKU / Model: N80MSN1552420A
• Furnace Heating BTU (Input): 154,000 BTU
• Furnace AFUE: 80%
• Furnace Approximate Output BTU: 123,200 BTU
• Furnace Configuration: Upflow / Downflow / Horizontal (multi-positional)
• Furnace Width: 24.5 in
• Furnace Height: 33.333333333333336 in
• Furnace Depth: 29 in
• Furnace Blower Motor: Multi 18-Speed Constant Torque (MCT)
• Furnace Max CFM: 1965
• Furnace Electrical: 115V 1 Phase 60 Hz
• Furnace Max Breaker Size: 15 Amps
• Furnace Burner Stages: Single
• Ignition Type: Direct ignition with silicon nitride hot surface ignitor
• Fuel Type: Natural Gas (field-convertible to propane with optional kit)
• Exhaust Flue Requirement: Metal
• Coil Feature: Factory-installed TXV for refrigerant metering
• AHRI Certificate Number (Furnace): 213146216
• Equivalent Models: Carrier 58SB0A155E24--20; Tempstar TN80ESN1552420A; Bryant 810SA60155E24
