Aciq AC-I-42AC14 / AC-I-4860ACL-24 / N80MSN1352420A 3.5 Ton 14.3 SEER2 80% AFUE 132,000 BTU Furnace and AC System (Multi-positional) N80MSN1352420A

Product Description

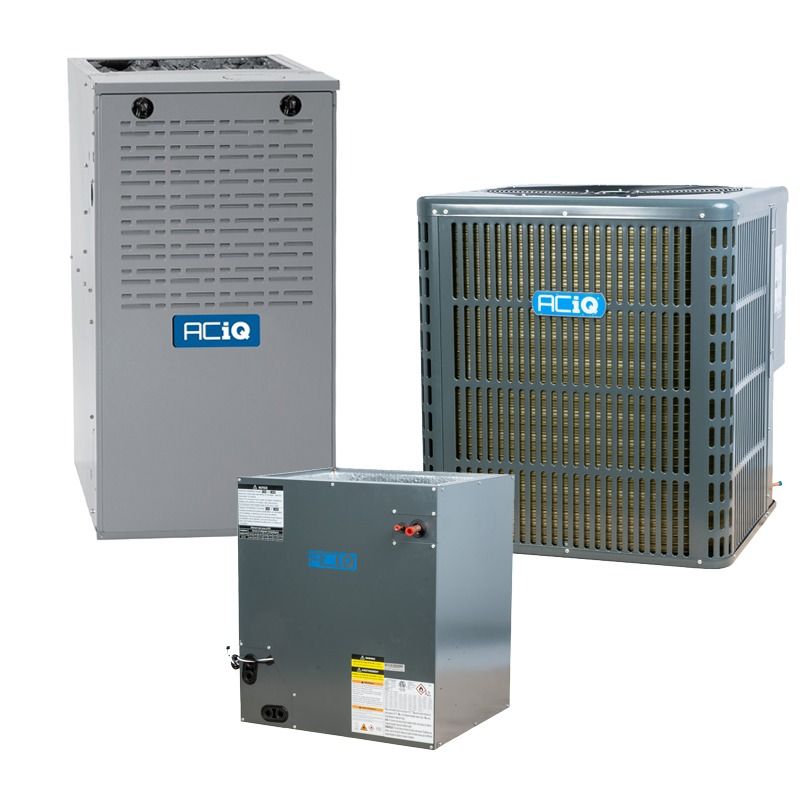

AciQ AC-I-42AC14 / AC-I-4860ACL-24 / N80MSN1352420A is a matched split system combining a 3.5 ton 14.3 SEER2 R32 outdoor condenser, a multi-positional 80% AFUE natural gas furnace, and a cased evaporator coil. The condenser is single-stage with a rotary compressor and requires 208/230V 1-phase power; the furnace uses a multi-speed ECM blower, direct ignition with a silicon nitride hot surface ignitor, and 115V power. The coil is all-aluminum with a factory-installed TXV and supports upflow, downflow, and horizontal installations.

• Matched 3.5 ton system: 42,000 BTU condenser (14.3 SEER2) with 91.71 oz. R32 refrigerant, single-stage rotary compressor
• Furnace: 80% AFUE, 132,000 BTU input, multi-speed ECM blower, direct silicon nitride hot surface ignition, 115V single-phase
• Evaporator coil: cased A-coil, all-aluminum construction, factory-installed TXV, 3.5–5 ton compatibility; condenser requires 208/230V, 25–35 A breaker

Product Highlights

Matched R32 split system with multi-positional furnace and coil, single-stage condenser, and extended component warranties

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: AC-I-42AC14 / AC-I-4860ACL-24 / N80MSN1352420A
• Country of Origin: China

Technical Specifications

• Brand: AciQ
• Model / MPN: AC-I-42AC14 / AC-I-4860ACL-24 / N80MSN1352420A
• System type: Matched split system (condenser + furnace + cased evaporator coil)
• Tonnage: 3.5 Ton
• Cooling capacity: 42,000 BTU
• SEER2: 14.3
• EER2: 11.7
• Condenser compressor type: Rotary (single-stage)
• Condenser refrigerant: R32 (A2L) - pre-charged
• Condenser refrigerant charge: 91.71 oz.
• Condenser electrical (Voltage): 208/230V 1 Phase 60 Hz
• Condenser min breaker size: 25 Amps
• Condenser max breaker size: 35 Amps
• Condenser sound level (approx.): 60 dBA
• Heating capacity (Furnace input BTU): 132,000
• AFUE: 80%
• Furnace fuel type: Natural Gas (field-convertible to Propane with optional kit)
• Furnace ignition type: Direct ignition with silicon nitride hot surface ignitor
• Furnace blower motor: Multi-speed ECM
• Furnace drive type: Direct
• Furnace maximum CFM: 1810
• Furnace motor RPM: 1050
• Furnace horsepower: 0.75 HP
• Furnace electrical (Voltage): 115V 1 Phase 60 Hz
• Furnace max breaker size: 15 Amps
• Furnace burner stages: Single
• Furnace configuration: Upflow / Downflow / Horizontal (multi-positional)
• Furnace dimensions (H x W x D): 33 1/3" x 24 1/2" x 29"
• Furnace weight: 167 lbs
• Furnace AHRI certificate number: 213146146
• Furnace exhaust flue requirement: Metal
• Evaporator coil SKU: AC-I-4860ACL-24
• Coil type: Cased A-coil (multi-positional)
• Coil material: All-aluminum
• Coil factory TXV: Factory-installed TXV
• Coil liquid line size: 3/8"
• Coil suction line size: 3/4"
• Coil tonnage range: 3.5 to 5 Ton
• Coil dimensions (H x W x D): 27.8" x 24.5" x 21.02"
• Coil weight: 100 lbs
• Condenser dimensions (H x W x D): 32.87" x 29.13" x 29.13"
• Condenser weight: 168 lbs
• Certifications: AHRI certified (system combinations available)
• System notes: Pre-charged with R32; R32 leak mitigation kit included; condenser must be paired with compatible R32 indoor equipment and leak detection per A2L requirements
