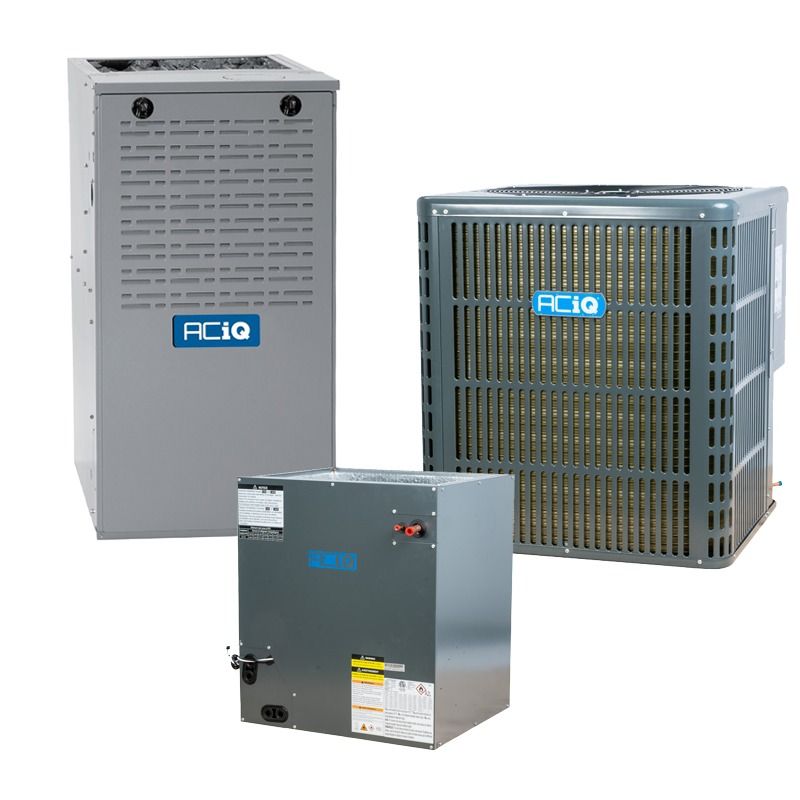

Aciq AC-I-42AC14 / AC-I-4860ACL-24 / G80CTL1352422 3.5 Ton 14.3 SEER2 Multi-Positional HVAC System

Product Description

The Aciq AC-I-42AC14 / AC-I-4860ACL-24 / G80CTL1352422 matched system combines a 3.5 ton, 14.3 SEER2 outdoor condenser, a cased multi-positional evaporator coil, and an 80% AFUE two-stage gas furnace. The condenser is pre-charged with R32 refrigerant (91.71 oz) and operates on 208/230 V 1Ø 60 Hz with a 25–35 A recommended breaker. The furnace uses a variable speed ECM blower, two-stage burner and silicon nitride hot surface ignitor.

• Matched 3.5 ton condenser (42,000 BTU) with 14.3 SEER2, R32 refrigerant, rotary compressor and ~60 dBA sound level
• Multi-positional 80% AFUE two-stage gas furnace with variable speed ECM blower, direct ignition and field-convertible to propane
• Cased A-coil with factory-installed TXV, 24.5 inch cabinet width, compatible with R32 refrigerant

Product Highlights

Matched 3.5 ton R32 system with cased A-coil and multi-positional furnace; 14.3 SEER2 cooling and 80% AFUE heating; condenser pre-charged and includes leak mitigation kit.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: AC-I-42AC14 / AC-I-4860ACL-24 / G80CTL1352422

Technical Specifications

• Brand: Aciq
• Model / System: AC-I-42AC14 / AC-I-4860ACL-24 / G80CTL1352422
• Product ID: 225545
• Condenser SKU: AC-I-42AC14
• Condenser Cooling Capacity: 42,000 BTU
• Condenser Tonnage: 3.5 Ton
• Condenser SEER2: 14.3
• Condenser EER2: 11.7
• Refrigerant Type: R32
• Refrigerant Charge: 91.71 oz
• Condenser Sound Level: 60 dBA
• Compressor Type: Rotary
• Liquid Line Size: 3/8"
• Suction Line Size: 3/4"
• Input Voltage: 208/230 V 1 Phase 60 Hz
• Recommended Breaker Size: 25–35 Amps
• Condenser Dimensions (H x W x D): 32.87" x 29.13" x 29.13"
• Condenser Weight: 168 lbs
• Coil SKU: AC-I-4860ACL-24
• Coil Tonnage Range: 3.5 to 5 Ton
• Coil Style: Cased A-coil
• Coil Liquid Line Size: 3/8"
• Coil Suction Line Size: 3/4"
• Coil Dimensions (H x W x D): 27.8" x 24.5" x 21.02"
• Coil Weight: 100 lbs
• Coil Features: All-aluminum construction with factory-installed TXV; includes leak mitigation kit
• Furnace SKU: G80CTL1352422
• Furnace Input BTU: 132,000 BTU
• Furnace Output BTU: 107,000 BTU
• Furnace AFUE: 80%
• Furnace Blower Motor: Variable speed ECM
• Furnace Burner Stages: Two-stage
• Furnace Ignition Type: Direct ignition with silicon nitride hot surface ignitor
• Furnace Fuel Type: Natural gas (field-convertible to propane with optional LP kit)
• Furnace Configuration: Upflow / Downflow / Horizontal (multi-positional)
• Furnace Dimensions (H x W x D): 33.33" x 24.5" x 29"
• Furnace Weight: 163 lbs
