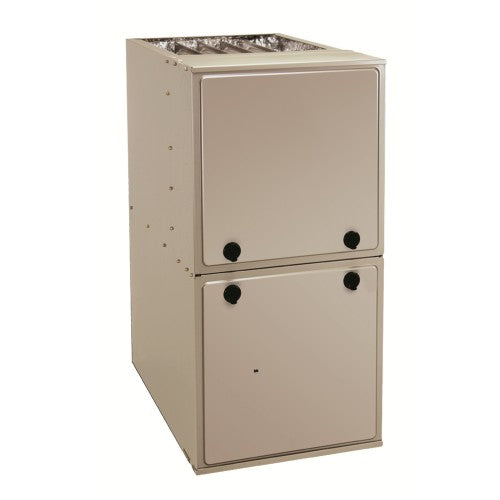

Aciq AC-I-42AC14 / AC-I-4860ACL-21 / R92MSN1002120A 3.5 Ton 14.3 SEER2 100,000 BTU Furnace & AC System (Multi-Positional)

Product Description

Aciq AC-I-42AC14 / AC-I-4860ACL-21 / R92MSN1002120A is a 3.5 ton split HVAC system that pairs a 14.3 SEER2 R32 condenser, a multi-positional cased evaporator coil with factory-installed TXV, and a 100,000 BTU 92% AFUE multi-positional gas furnace. The condenser is pre-charged with R32, rated near 60 dBA and designed for 208/230V power; the furnace uses a multi-speed ECM blower on 115V. The system supports upflow, downflow, or horizontal installations.

• Condenser: 42,000 BTU (3.5 ton), 14.3 SEER2, R32 refrigerant, pre-charged, rotary compressor, 208/230V 1Ph
• Evaporator coil: cased A-coil, multi-positional, factory-installed TXV, compatible with R32, 21" cabinet width
• Furnace: 100,000 BTU input, 92% AFUE, single-stage gas burner, multi-speed ECM blower, 115V, field-convertible to propane with optional kit

Product Highlights

Bundle includes condenser, cased multi-positional coil with TXV, and 100,000 BTU 92% AFUE multi-positional furnace; condenser pre-charged with R32.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: AC-I-42AC14 / AC-I-4860ACL-21 / R92MSN1002120A
• Country of Origin: China

Technical Specifications

• Brand / Manufacturer: ACiQ
• Model / MPN: AC-I-42AC14 / AC-I-4860ACL-21 / R92MSN1002120A
• Condenser Cooling BTU: 42,000 BTU
• Tonnage: 3.5 Ton
• Condenser SEER2: 14.3
• Condenser EER2: 11.7
• Condenser Refrigerant: R32
• Condenser Refrigerant Charge: 91.71 oz.
• Condenser Decibel Level: 60 dBA (approximate)
• Condenser Compressor Type: Rotary
• Condenser Liquid Line Size: 3/8"
• Condenser Suction Line Size: 3/4"
• Condenser Input Voltage: 208/230V 1 Phase 60 Hz
• Condenser Max Breaker Size: 35 Amps
• Condenser Min Breaker Size: 25 Amps
• Condenser Dimensions (H x W x D): 32.87" x 29.13" x 29.13"
• Coil SKU: AC-I-4860ACL-21
• Coil Tonnage Range: 3.5 to 5 Ton
• Coil Style: Cased A-coil, multi-positional
• Coil Liquid Line Size: 3/8"
• Coil Suction Line Size: 3/4"
• Coil Dimensions (H x W x D): 27.80" x 21" x 21.02"
• Coil Construction: All-aluminum, factory-installed TXV
• Furnace SKU: R92MSN1002120A
• Furnace Heating BTU (Input): 100,000 BTU
• Furnace AFUE: 92%
• Furnace Blower Motor: Multi-speed ECM
• Furnace Maximum CFM: 2000
• Furnace Configuration: Upflow / Downflow / Horizontal (multi-positional)
• Furnace Input Voltage: 115V 1 Phase 60 Hz
• Furnace Burner Stages: Single
• Furnace Ignition Type: Direct ignition with silicon nitride hot surface ignitor
• Furnace Fuel Type: Natural gas (field-convertible to propane with optional LP kit)
• Furnace Exhaust Flue Requirement: Plastic / PVC
• Furnace Dimensions (H x W x D): 35" x 21" x 29-1/2"
• System Notes - Electrical Requirements: Condenser requires 208/230V 1Ph 60Hz; furnace requires 115V 1Ph 60Hz
• Compatibility Note: Condenser must be paired with compatible R32 evaporator coil or air handler and R32 leakage detection for safety and warranty compliance
