Aciq AC-I-42AC14 / AC-I-4860ACL-21 / N80MSN0902120A 3.5 ton 14.3 SEER2 80% AFUE furnace & AC system (3.5 ton)

Product Description

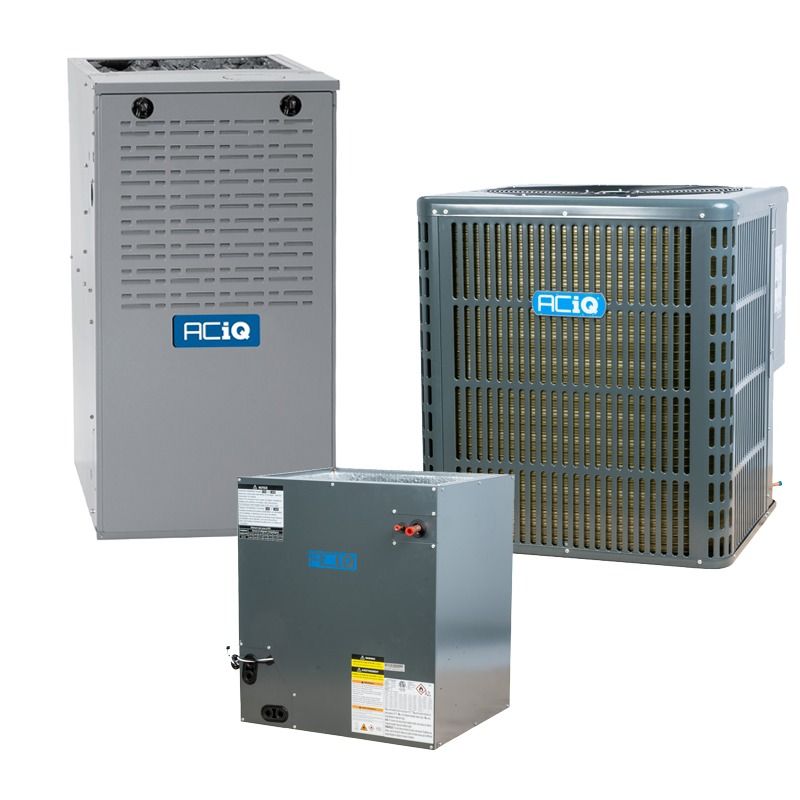

Aciq AC-I-42AC14 / AC-I-4860ACL-21 / N80MSN0902120A is a combined split HVAC package including a 3.5-ton R32 condenser (42,000 BTU), a 21-inch cased A-coil evaporator with factory-installed TXV, and an 88,000 BTU 80% AFUE multi-positional furnace. The condenser is precharged for R32 and rated 14.3 SEER2 (11.7 EER); the furnace operates on 115V, uses a multi-speed MCT blower, and is field-convertible to propane.

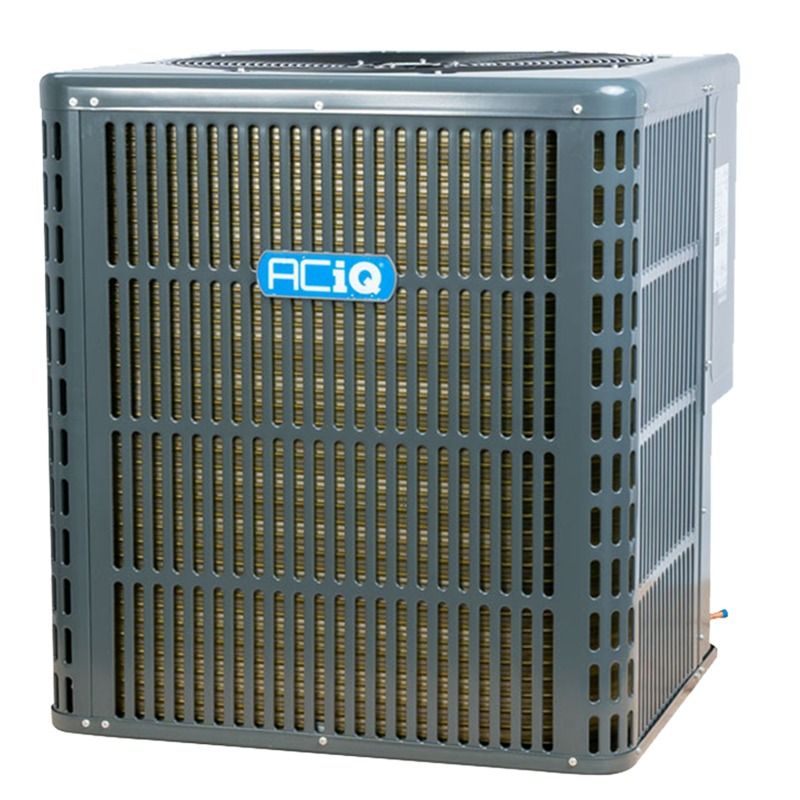

• Condenser: 3.5 Ton (42,000 BTU) R32 outdoor unit, precharged for R32, 14.3 SEER2, rotary compressor, 208/230V 1 phase, 60 dBA sound level.

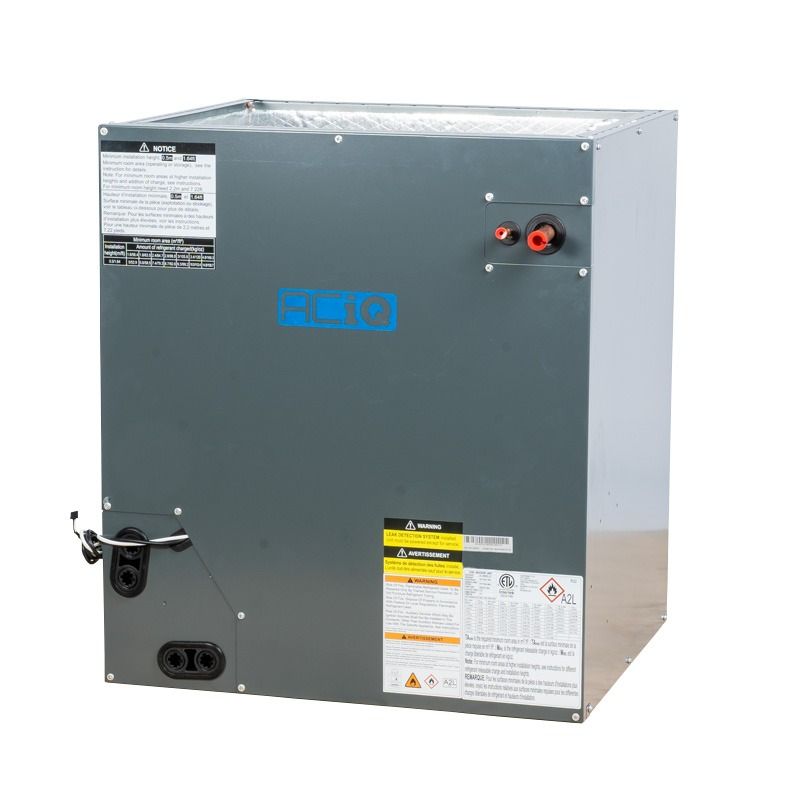

• Evaporator coil: AC-I-4860ACL-21 cased A-coil, 21" cabinet width, all-aluminum construction, factory-installed TXV, AHRI-certified, includes leak mitigation control kit.

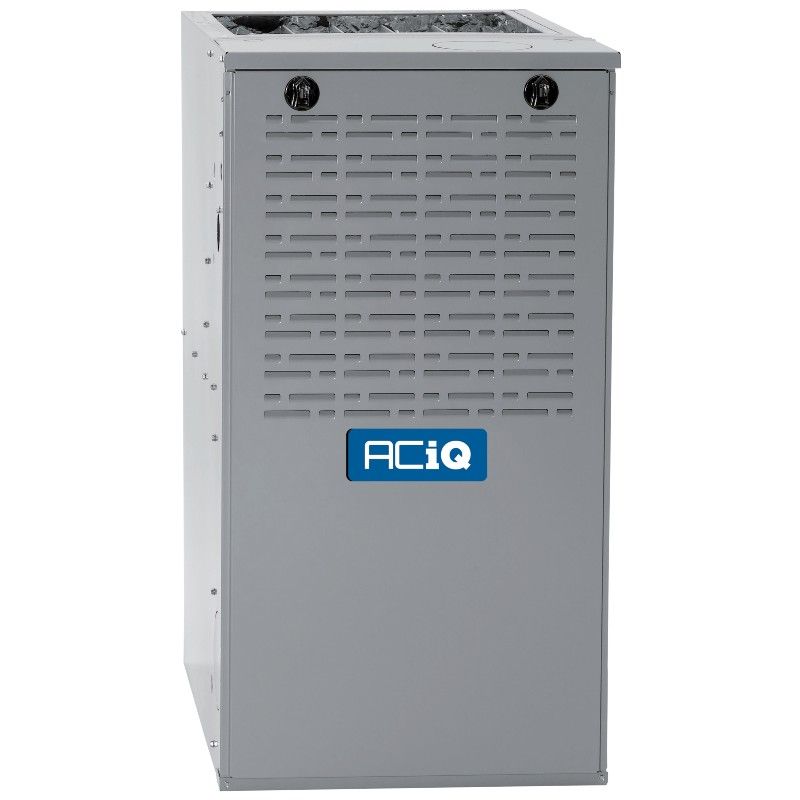

• Furnace: N80MSN0902120A 88,000 BTU input, 70,400 BTU output at 80% AFUE, multi-positional (upflow/downflow/horizontal), multi 18-speed constant torque blower, direct ignition with silicon nitride hot surface ignitor.

Product Highlights

3.5 Ton R32 split system; 14.3 SEER2 / 11.7 EER cooling; 80% AFUE multi-positional furnace; AHRI-certified components.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: AC-I-42AC14 / AC-I-4860ACL-21 / N80MSN0902120A
• Country of Origin: China

Technical Specifications

• Brand: Aciq
• Model / MPN: AC-I-42AC14 / AC-I-4860ACL-21 / N80MSN0902120A
• System type: Split AC and Furnace System
• Refrigerant type: R32 (A2L)
• SEER2 rating: 14.3
• EER: 11.7
• Cooling capacity: 42,000 BTU (3.5 Ton)
• Condenser tonnage: 3.5 Ton
• Condenser refrigerant charge: 91.71 oz.
• Condenser sound level: 60 dBA
• Condenser compressor type: Rotary
• Condenser Input Voltage: 208/230V 1 Phase 60 Hz
• Condenser max breaker size: 35 Amps
• Condenser min breaker size: 25 Amps
• Condenser liquid line size: 3/8"
• Condenser suction line size: 3/4"
• Condenser dimensions (H x W x D): 32.87 x 29.13 x 29.13 inches
• Condenser weight: 168.00 lbs
• Coil model: AC-I-4860ACL-21
• Coil style: A-coil (cased)
• Coil cabinet width: 21 inches
• Coil dimensions (H x D): 27.80 x 21.02 inches
• Coil weight: 87.00 lbs
• Coil liquid line size: 3/8"
• Coil suction line size: 3/4"
• Coil features: All-aluminum construction, factory-installed TXV, AHRI-certified, leak mitigation control kit
• Furnace model: N80MSN0902120A
• Furnace input BTU: 88,000 BTU
• Furnace output BTU: 70,400 BTU (88,000 input at 80% AFUE)
• Furnace AFUE: 80% AFUE
• Furnace configuration: Upflow / Downflow / Horizontal (multi-positional)
• Furnace blower motor: Multi 18-Speed Constant Torque (MCT)
• Furnace maximum CFM: 1980
• Furnace Input Voltage: 115V 1 Phase 60 Hz
• Furnace max breaker size: 15 Amps
• Ignition type: Direct ignition with silicon nitride hot surface ignitor
• Fuel type: Natural Gas; field-convertible to Propane
• Exhaust flue requirement: Metal
• AHRI certified: Yes (furnace certificate number 213146211)
• Power phase: 1 Phase
• Number of compressors: 1
• Number of cooling speeds: Single-stage
• Number of heat stages: Single-stage
• Number of fan motors: 1
• Country of origin: China
• California Proposition 65 warning: This product may contain a chemical known to the State of California to cause cancer or birth defects or other reproductive harm.
