Aciq AC-I-42AC14 / AC-I-4860ACL-21 / G96CTN1002122 3.5 Ton 14.3 SEER2 96% AFUE 100,000 BTU multi-positional HVAC system

Product Description

ACiQ AC-I-42AC14 / AC-I-4860ACL-21 / G96CTN1002122 is a matched 3.5 ton HVAC system combining a 14.3 SEER2 R32 condenser, a 96% AFUE 100,000 BTU two-stage gas furnace, and a 21-inch cased multi-positional evaporator coil. The condenser is pre-charged with R32 and provides 42,000 BTU cooling; the furnace includes a variable-speed ECM blower and supports upflow, downflow, and horizontal installations.

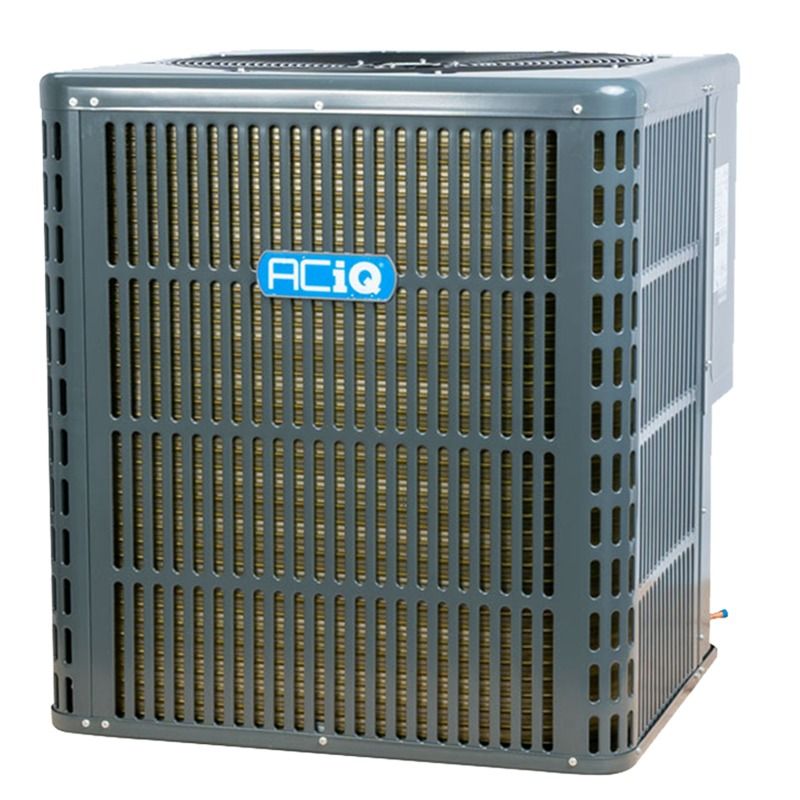

• Condenser: 3.5 ton, 14.3 SEER2, 42,000 BTU cooling, pre-charged R32, rotary compressor, 208/230V 1 Phase 60 Hz, ~60 dBA.
• Furnace: 100,000 BTU, 96% AFUE, two-stage burner, variable-speed ECM blower, 120 V 1 Phase 60 Hz, 21-inch cabinet, multi-positional.

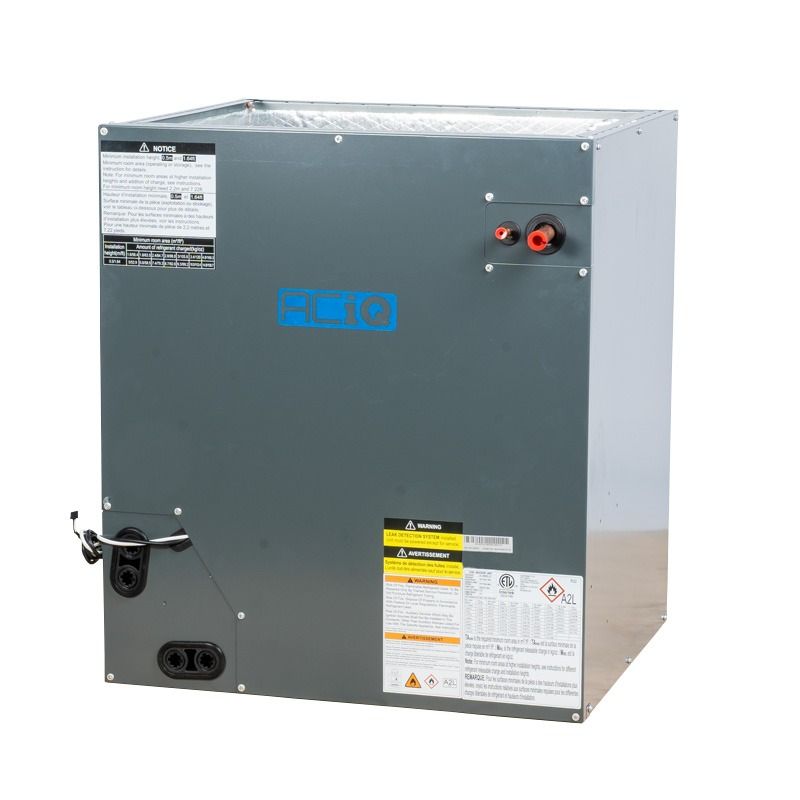

• Evaporator coil: cased A-coil, 21-inch cabinet width, compatible with R32, factory-installed TXV, sized for 3.5–5 ton systems.

Product Highlights

Matched 3.5 ton R32 condenser, 100,000 BTU 96% AFUE two-stage furnace, and 21-inch cased multi-positional evaporator coil; component-specific electrical requirements.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: AC-I-42AC14 / AC-I-4860ACL-21 / G96CTN1002122

Technical Specifications

• Brand: ACiQ
• MPN: AC-I-42AC14 / AC-I-4860ACL-21 / G96CTN1002122
• Condenser model: AC-I-42AC14
• Evaporator coil model: AC-I-4860ACL-21
• Furnace model: G96CTN1002122
• System Tonnage: 3.5 Ton
• SEER2 rating: 14.3
• EER2 rating: 11.7
• Cooling capacity: 42,000 BTU (3.5 Ton)
• Heating capacity: 100,000 BTU
• AFUE: 96%
• Refrigerant type: R32 (pre-charged)
• Condenser refrigerant charge: 91.71 oz
• Compressor type: Rotary
• Condenser decibel level: 60 dBA
• Condenser electrical: 208/230V 1 Phase 60 Hz
• Condenser max breaker: 35 Amps
• Condenser min breaker: 25 Amps
• Condenser liquid valve size: 3/8"
• Condenser suction valve size: 3/4"
• Condenser dimensions (H x W x D): 32.87" x 29.13" x 29.13"
• Condenser weight: 168 lbs
• Furnace stages: Two-stage
• Furnace blower motor: Variable speed ECM
• Furnace maximum CFM: 2160
• Furnace electrical: 120 V 1 Phase 60 Hz
• Furnace cabinet width: 21"
• Furnace dimensions (H x W x D): 35" x 21" x 29.5"
• Furnace weight: 179 lbs
• Evaporator coil type: Cased A-coil
• Evaporator coil cabinet width: 21"
• Evaporator coil dimensions (H x W x D): 27.80" x 21" x 21.02"
• Evaporator coil tonnage range: 3.5 to 5 Ton
• Evaporator coil refrigerant: R32
• Evaporator coil features: Factory-installed TXV, all-aluminum construction
• Fuel type: Natural Gas (convertible to Propane with kit)
• Installation orientations: Upflow / Downflow / Horizontal (multi-positional)
• AHRI certificate number: 213148727
• Exhaust flue requirement: Plastic / PVC
