Aciq AC-I-42AC14 / AC-I-4860ACL-21 / G96CTN0802120 3.5 Ton 14.3 SEER2 96% AFUE 80,000 BTU Furnace & AC System Multi-positional

Product Description

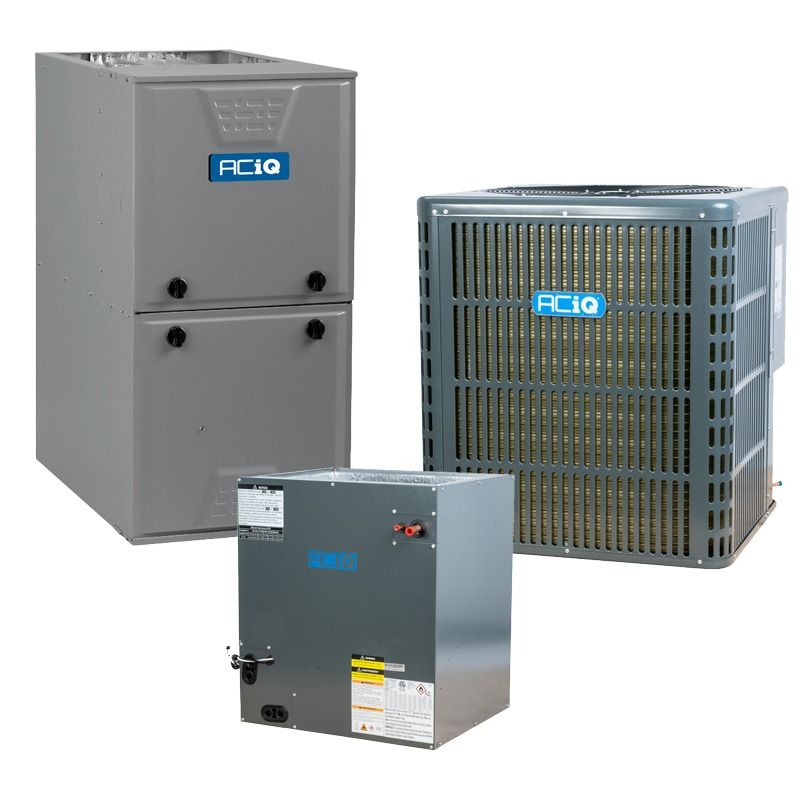

The ACIQ AC-I-42AC14 / AC-I-4860ACL-21 / G96CTN0802120 is a matched split heating and cooling system that combines a 3.5 ton 14.3 SEER2 R32 condenser, a 96% AFUE 80,000 BTU two-stage gas furnace, and a 21" multi-positional cased evaporator coil. The condenser is pre-charged with 91.71 oz of R32, rated 11.7 EER and approximately 60 dBA; the furnace uses a variable-speed ECM blower and requires 120 V electrical supply.

• Condenser: 3.5 ton, 42,000 BTU cooling, 14.3 SEER2, 11.7 EER, R32 refrigerant, 91.71 oz charge, ~60 dBA, 208/230V 1 phase
• Furnace: 80,000 BTU heating capacity, 96% AFUE, two-stage, variable speed ECM blower, upflow/downflow/horizontal multi-positional, 120 V
• Evaporator coil: 21" cased A-coil, supports 3.5 to 5 ton, all-aluminum construction with factory-installed TXV, AHRI certified

Product Highlights

Matched ACiQ system with R32 pre-charged condenser, high-efficiency 96% AFUE two-stage furnace, and 21" multi-positional cased evaporator coil for upflow/downflow/horizontal installation.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: AC-I-42AC14 / AC-I-4860ACL-21 / G96CTN0802120
• Country of Origin: China

Technical Specifications

• Brand: ACiQ
• Model / MPN: AC-I-42AC14 / AC-I-4860ACL-21 / G96CTN0802120
• Condenser Cooling Capacity: 42,000 BTU (3.5 Ton)
• SEER2: 14.3
• EER: 11.7
• Condenser Refrigerant: R32
• Condenser Refrigerant Charge: 91.71 oz.
• Condenser Noise Level: 60 dBA
• Condenser Electrical: 208/230V, 1 Phase, 60 Hz
• Condenser Max Breaker: 35 Amps
• Condenser Min Breaker: 25 Amps
• Condenser Dimensions (H x W x D): 32.87" x 29.13" x 29.13"
• Condenser Weight: 168 lbs
• Compressor Type: Rotary
• Liquid Valve Size: 3/8"
• Suction Valve Size: 3/4"
• Furnace Heating Capacity: 80,000 BTU
• Furnace AFUE: 96%
• Furnace Stages: Two-stage
• Furnace Motor: Variable speed ECM blower motor
• Furnace Configuration: Upflow / Downflow / Horizontal (multi-positional)
• Furnace Fuel Type: Natural Gas (convertible to Propane with kit)
• Furnace Electrical: 120V, 1 Phase, 60 Hz
• Furnace Dimensions (H x W x D): 35" x 21" x 29.5"
• Furnace Weight: 152.5 lbs
• Coil SKU: AC-I-4860ACL-21
• Coil Tonnage Range: 3.5 to 5 Ton
• Coil Style: Cased A-coil
• Coil Refrigerant: R32
• Coil Cabinet Width: 21"
• Coil Dimensions (H x W x D): 27.80" x 21" x 21.02"
• Coil Weight: 87 lbs
• Coil Features: All-aluminum construction, factory-installed TXV, AHRI certified
• AHRI Certificate Number (furnace): 213148726
• Exhaust Flue Requirement (furnace): Plastic / PVC
• Power Phase: 1 Phase
• Country of Origin: China
