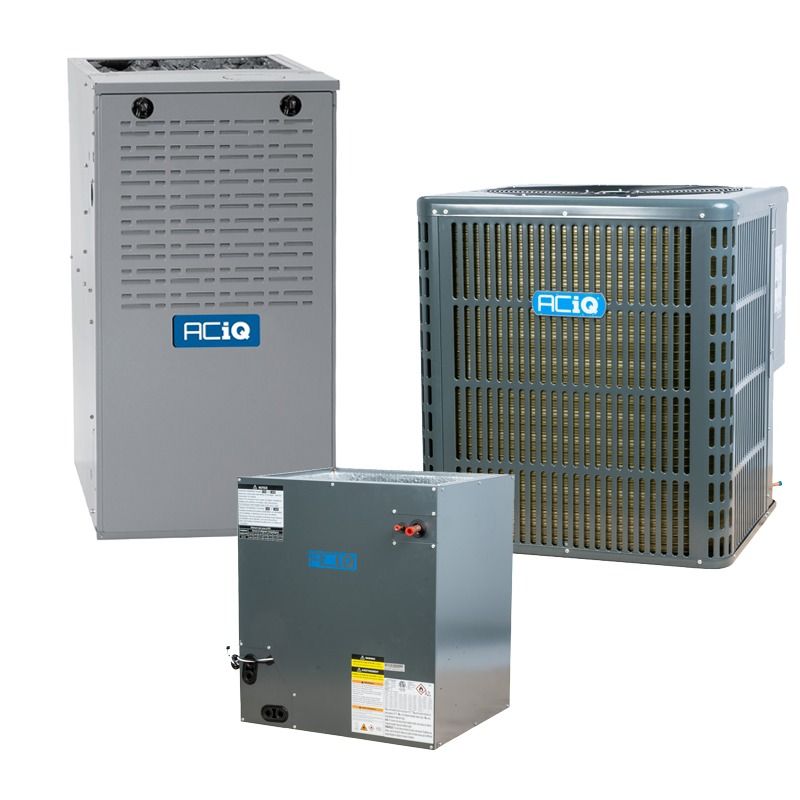

Aciq AC-I-42AC14 / AC-I-4860ACL-21 / G80CTL0902120 3.5 Ton 14.3 SEER2 80% AFUE 80,000 BTU Furnace and AC System (Multi-positional)

Product Description

Aciq AC-I-42AC14 / AC-I-4860ACL-21 / G80CTL0902120 is a matched residential HVAC system combining a 3.5 ton 14.3 SEER2 R32 outdoor condenser, a multi-positional 80,000 BTU 80% AFUE two-stage gas furnace, and a 21 inch cased evaporator coil with factory-installed TXV. The system is pre-charged with R32 refrigerant and includes an R32 refrigerant leak mitigation kit for installation. Typical applications include residential cooling and heating where multi-positional installation is required.

• Condenser: 3.5 ton (42,000 BTU), 14.3 SEER2, R32 refrigerant, rotary compressor
• Furnace: 80,000 BTU input, 80% AFUE, two-stage burner, variable speed ECM blower, multi-positional
• Evaporator coil: 21 inch cased A-coil with factory-installed TXV, compatible with 3.5 to 5 ton systems

Product Highlights

Matched 3.5 ton R32 condenser, multi-positional 80,000 BTU furnace, and 21 inch cased TXV coil

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: AC-I-42AC14 / AC-I-4860ACL-21 / G80CTL0902120

Technical Specifications

• Model: AC-I-42AC14 / AC-I-4860ACL-21 / G80CTL0902120
• Brand: ACiQ
• Product ID: 225550
• Condenser SKU: AC-I-42AC14
• Condenser Tonnage: 3.5 Ton
• Condenser Cooling BTU: 42,000 BTU
• Condenser SEER2: 14.3
• Condenser EER2: 11.7
• Condenser Refrigerant: R32
• Condenser Compressor Type: Rotary
• Condenser Decibel Level (dBA): 60
• Condenser Electrical: 208/230V 1 Phase 60 Hz
• Condenser Max Breaker Size: 35 Amps
• Condenser Min Breaker Size: 25 Amps
• Condenser Liquid Valve Size: 3/8"
• Condenser Suction Valve Size: 3/4"
• Condenser Height: 32.87"
• Condenser Width: 29.13"
• Condenser Depth: 29.13"
• Condenser Weight: 168.00 lbs
• Coil SKU: AC-I-4860ACL-21
• Coil Style: A-coil (cased)
• Coil Width: 21"
• Coil Height: 27.80"
• Coil Depth: 21.02"
• Coil Weight: 87.00 lbs
• Coil Refrigerant: R32
• Coil Liquid Line: 3/8"
• Coil Suction Line: 3/4"
• Coil Tonnage Range: 3.5 to 5 Ton
• Coil Feature: Factory-installed TXV
• Furnace SKU: G80CTL0902120
• Furnace Heating BTU (input): 88,000
• Furnace Rated BTU: 80,000 BTU
• Furnace AFUE: 80%
• Furnace Fuel Type: Natural Gas (field-convertible to Propane with LP kit)
• Furnace Blower Motor: Variable Speed - ECM
• Furnace Maximum CFM: 2330
• Furnace Configuration: Upflow/Downflow/Horizontal (multi-positional)
• Furnace Electrical: 115V 1 Phase 60 Hz
• Furnace Burner Stages: Two
• Furnace Ignition Type: Direct ignition with silicon nitride hot surface ignitor
• Furnace Exhaust Flue Requirement: Metal
• Furnace Height: 33.333"
• Furnace Width: 21"
• Furnace Depth: 29"
• Furnace Weight: 146.00 lbs
• Furnace AHRI Certificate Number: 213148664
• System Features: Matched condenser, evaporator coil, and furnace designed to work together; pre-charged condenser; R32 refrigerant leak mitigation kit included
• System Typical Use: Residential heating and cooling
