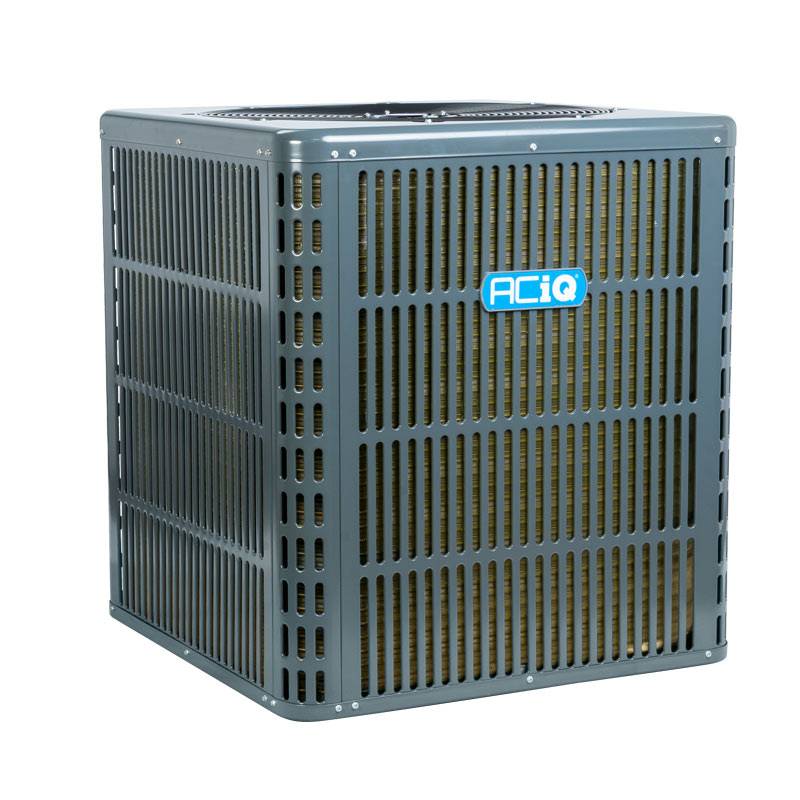

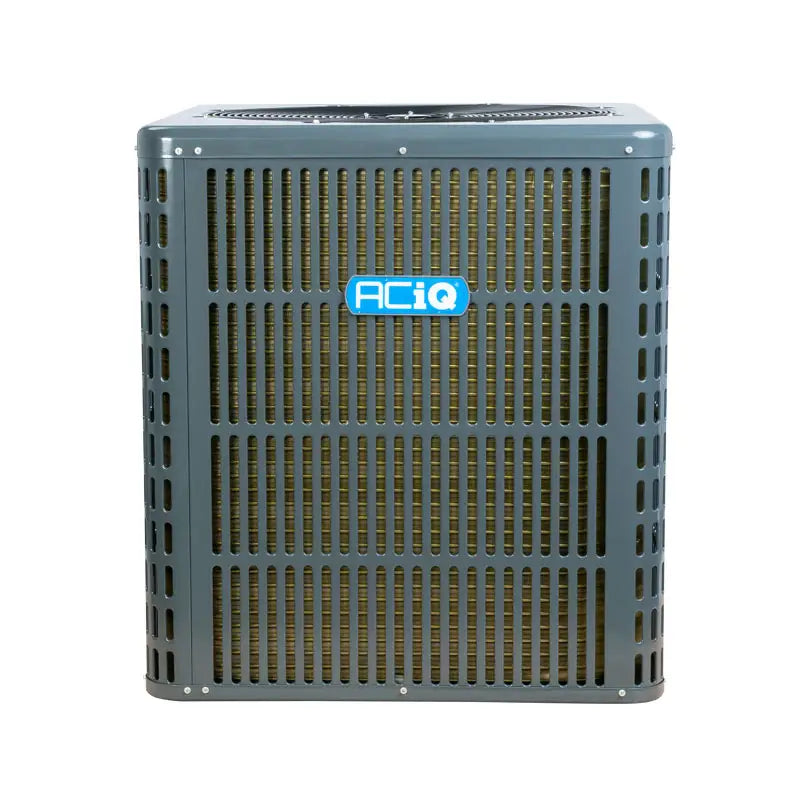

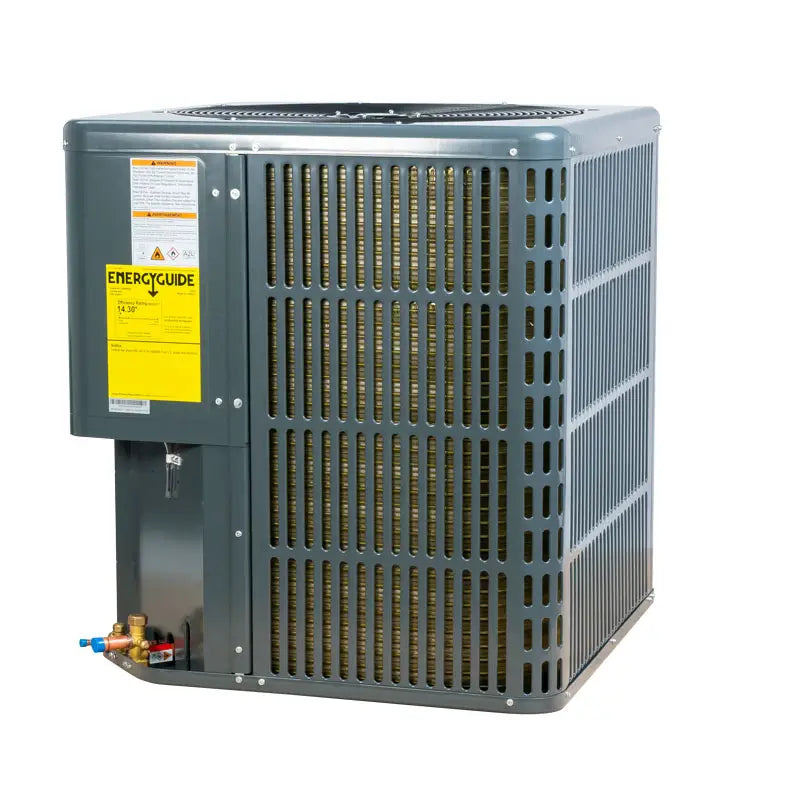

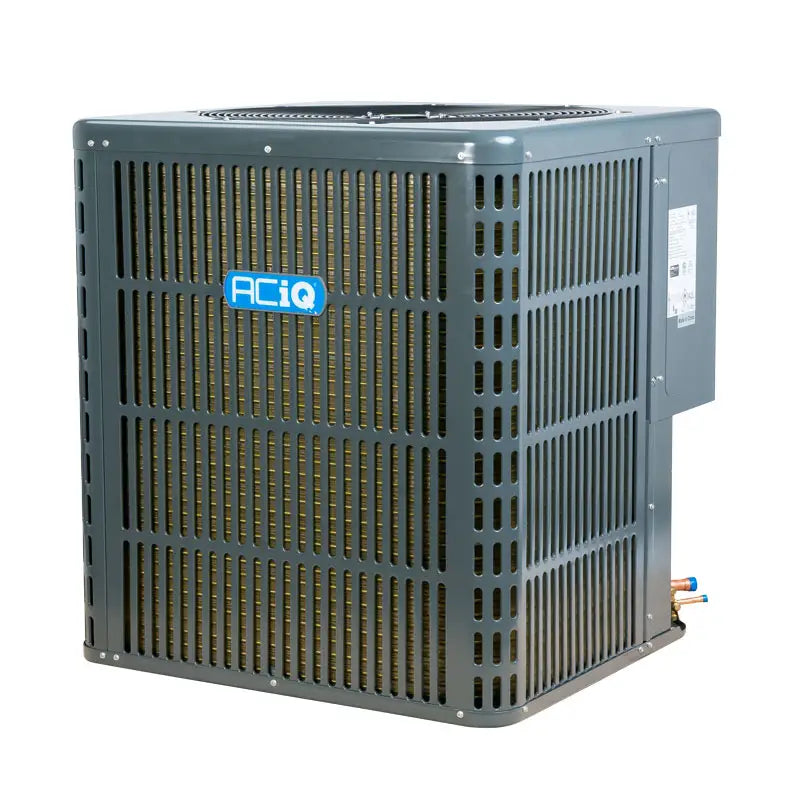

Aciq AC-I-42AC14 3.5 Ton 14.3 SEER2 central air conditioner condenser 42,000 BTU (3.5 Ton)

Product Description

Aciq AC-I-42AC14 is a 3.5 ton central air conditioner condenser rated at 42,000 BTU and 14.3 SEER2. The unit uses a scroll compressor and is pre-charged with R32A refrigerant, designed for 208-230 V, single-phase, 60 Hz electrical systems. It is corrosion resistant, rated for outdoor operation with a sound level around 58 dB(A), and operates across a 5 to 131 F ambient range.

• 42,000 BTU cooling capacity, 3.5 ton, 14.3 SEER2 efficiency
• Scroll compressor, pre-charged with R32A refrigerant, single-stage cooling
• 208-230 V, 1 phase, 60 Hz electrical; liquid line 3/8 inch and suction/gas line 3/4 inch

Product Highlights

Outdoor condenser, 42,000 BTU (3.5 ton), 14.3 SEER2, scroll compressor, pre-charged R32A

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: AC-I-42AC14
• Country of Origin: China

Technical Specifications

• Brand: Aciq
• Model: AC-I-42AC14
• MPN: AC-I-42AC14
• Type: Central air conditioner condenser
• Tonnage: 3.5 Ton
• Cooling Capacity: 42,000 BTU
• SEER Rating: 14.3 SEER2
• EER: 11.7
• Compressor Type: Scroll
• Number of Compressors: 1
• Number of Cool Speeds: Single stage
• Input Voltage: 208-230 V, 1 Phase, 60 Hz
• Power Source: Corded electric
• Refrigerant Type: R32A
• Liquid Line Size: 3/8 inch
• Suction/Gas Line Size: 3/4 inch
• Sound Level: 58 dB(A)
• Dimensions (W x D x H): 29.13 in x 29.13 in x 32.87 in
• Weight: 157 lbs
• Operating Range: 5 to 131 F
• Max Breaker Size: 35 Amps
• Min Breaker Size: 25 Amps
• Country of Origin: China
• California Prop 65 Warning: This product may contain a chemical known to the state of California to cause cancer or birth defects or other reproductive harm
