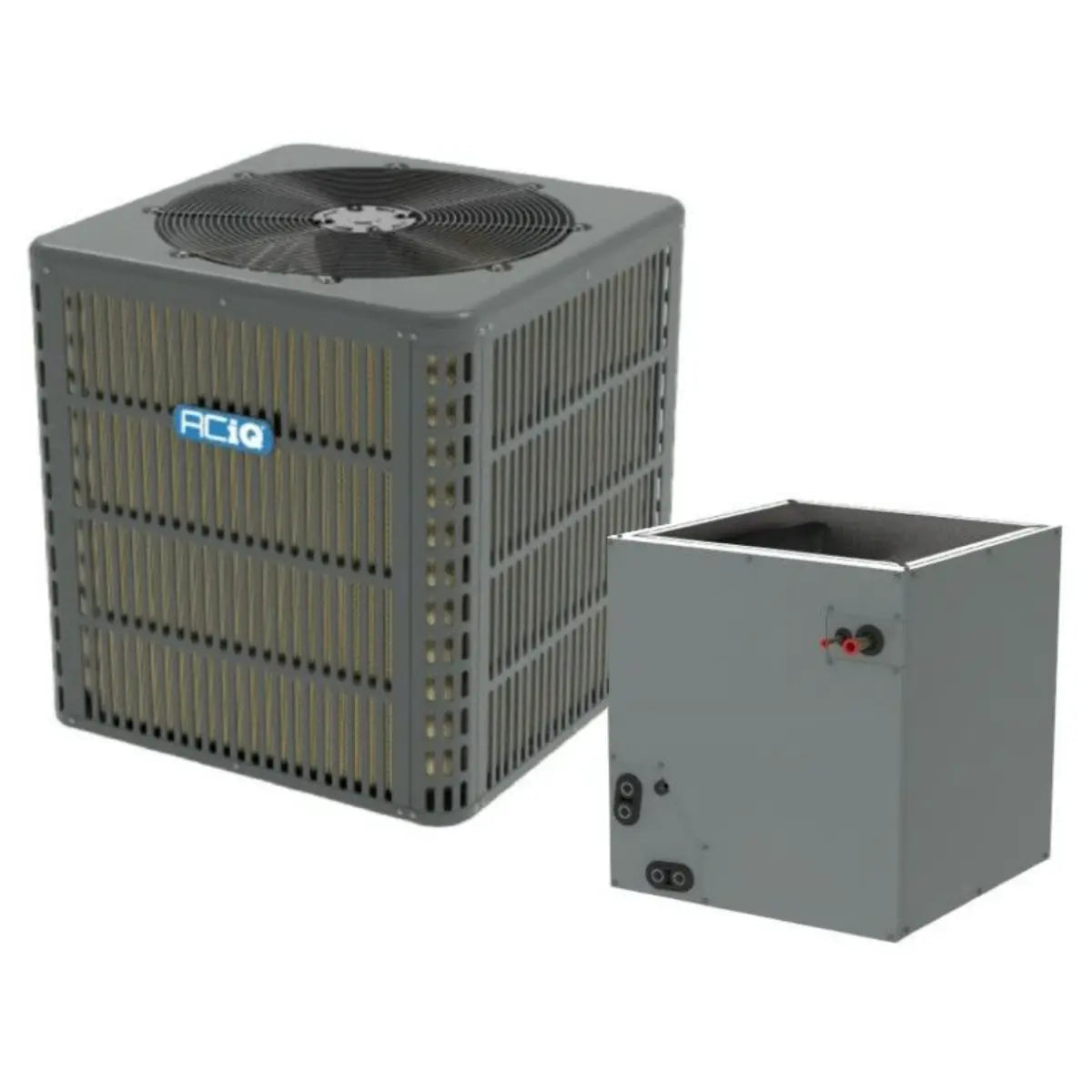

Aciq AC-I-42AC14 3.5 ton 14.3 SEER2 air conditioner (24.5 in cased evaporator coil) AC-I-4860ACL-24

Product Description

ACiQ AC-I-42AC14 is a 3.5 ton (42,000 BTU) 14.3 SEER2 outdoor air conditioner condenser paired with the AC-I-4860ACL-24 24.5 in multi-positional cased evaporator coil. The split system uses R32 refrigerant, features a rotary single-stage compressor, and operates on 208/230V 1-phase 60 Hz electrical supply. The coil includes a factory-installed TXV and an R32 leak mitigation kit and supports upflow, downflow, and horizontal installations.

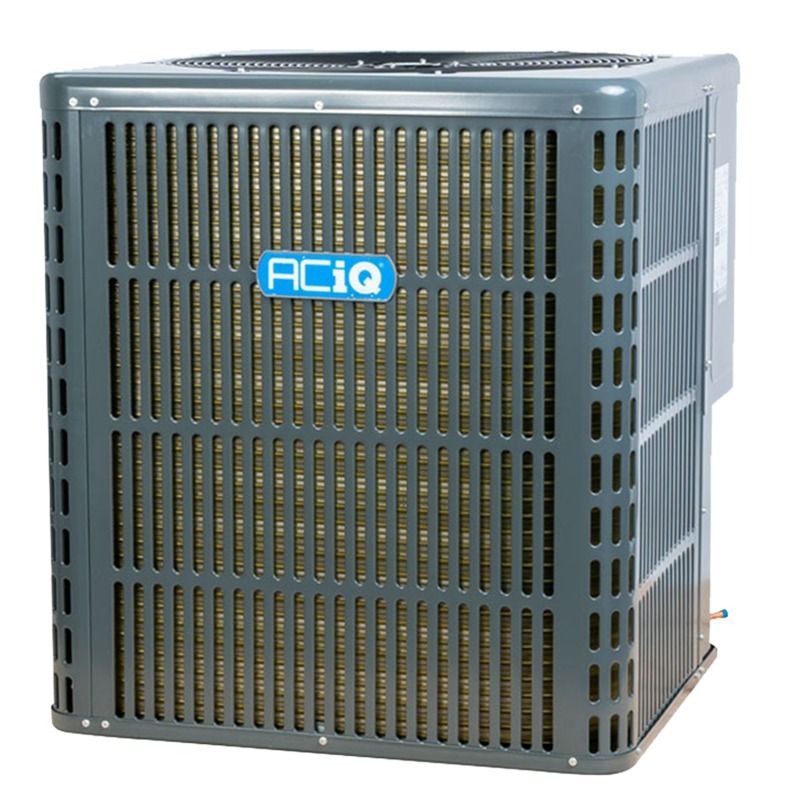

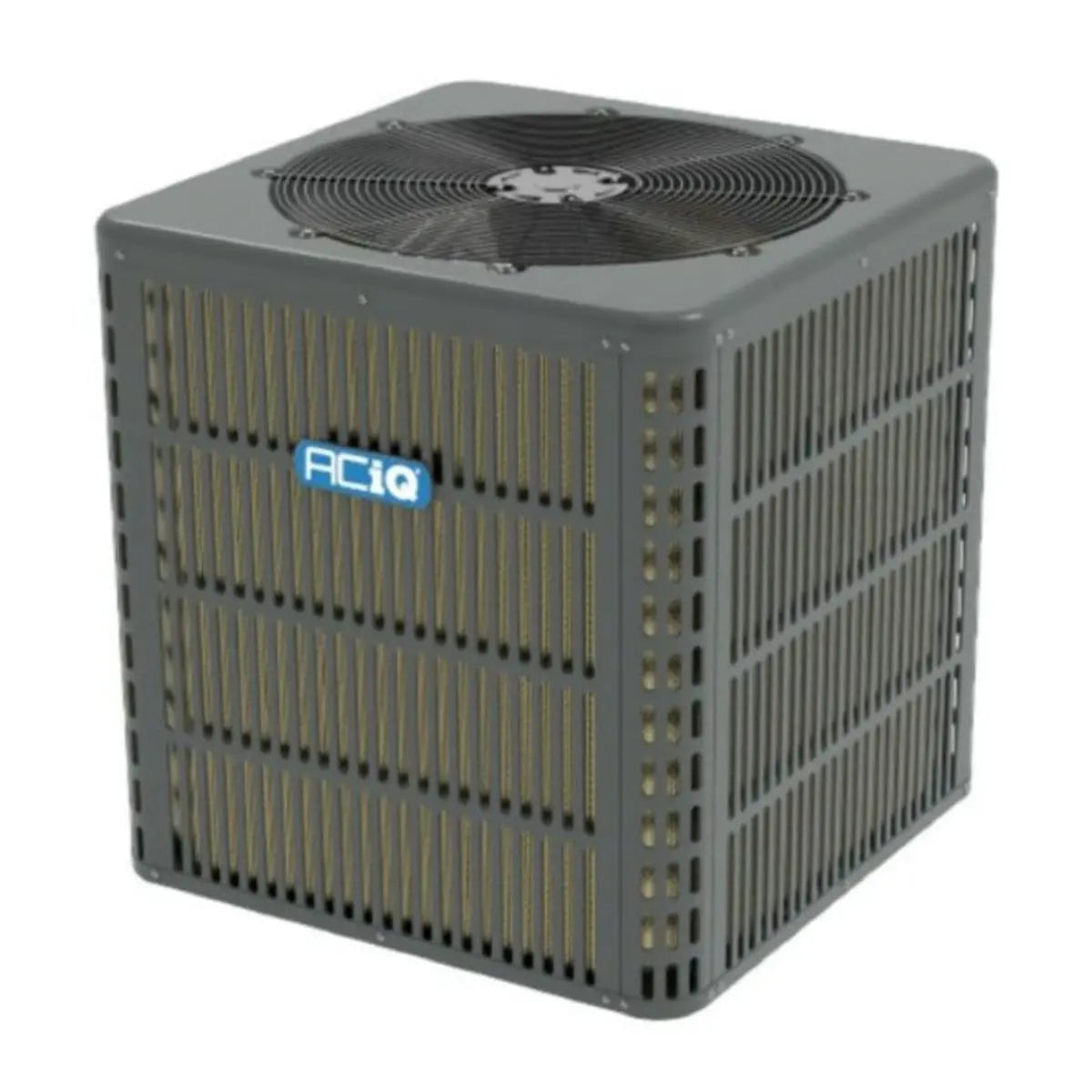

• 3.5 ton (42,000 BTU) condenser with 14.3 SEER2 efficiency and rotary single-stage compressor; sound rating approximately 60 dBA

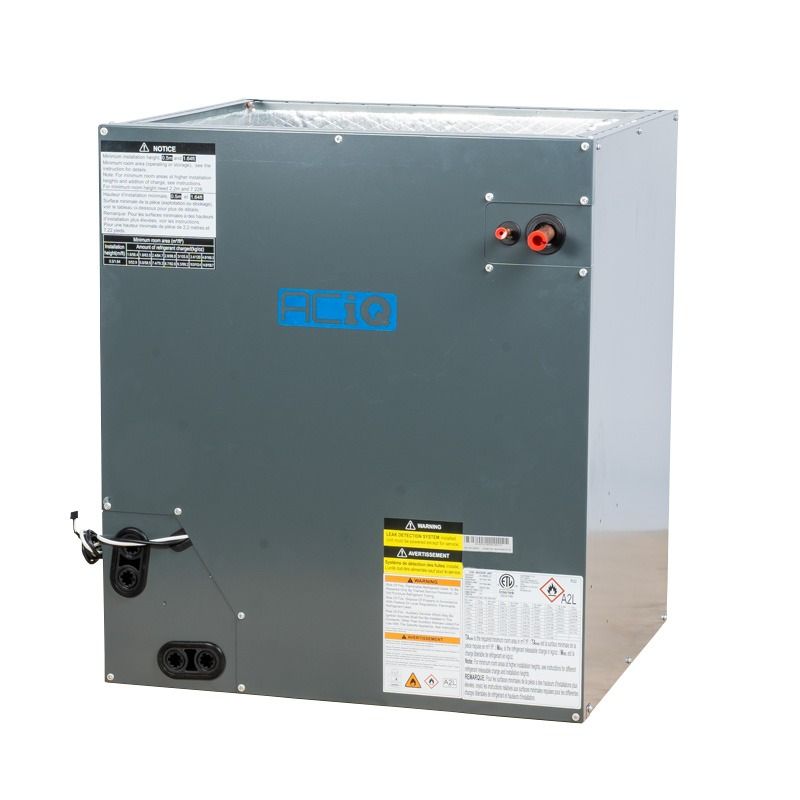

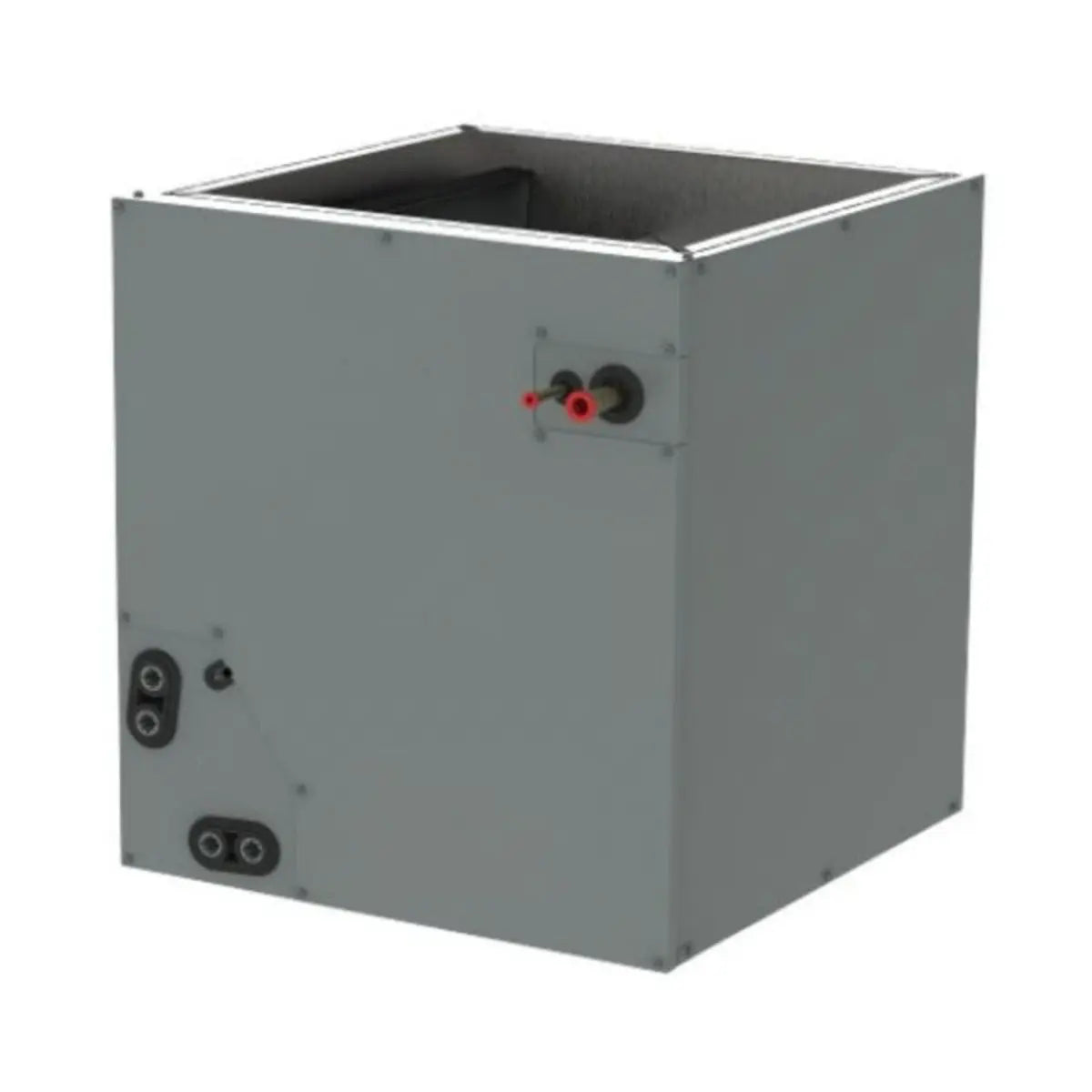

• 24.5 in multi-positional all-aluminum cased evaporator coil with factory-installed TXV and R32 leak mitigation kit; AHRI certified when paired with compatible equipment
• System uses R32 (A2L) refrigerant; electrical 208/230V 1 Phase 60 Hz; condenser refrigerant charge 91.71 oz.; breaker range 25–35 Amps

Product Highlights

3.5 ton 42,000 BTU split system, 14.3 SEER2, R32 refrigerant, 24.5 in multi-positional cased coil with factory TXV

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: AC-I-42AC14 / AC-I-4860ACL-24

Technical Specifications

• Brand: ACiQ
• Model (Condenser): AC-I-42AC14
• Model (Coil): AC-I-4860ACL-24
• Combined model/MPN: AC-I-42AC14 / AC-I-4860ACL-24
• Cooling capacity: 42,000 BTU
• Tonnage: 3.5 Ton
• Coil tonnage range: 3.5 to 5 Ton
• SEER2: 14.3
• EER2: 11.7
• Refrigerant: R32 (A2L)
• Condenser refrigerant charge: 91.71 oz.
• Compressor type: Rotary
• Compressor stages: Single stage
• Sound level: 60 dBA
• Liquid line size: 3/8"
• Suction line size: 3/4"
• Input Voltage: 208/230V 1 Phase 60 Hz
• Max breaker size: 35 Amps
• Min breaker size: 25 Amps
• Condenser dimensions (H x W x D): 32.87 in x 29.13 in x 29.13 in
• Condenser weight: 168 lbs
• Coil dimensions (H x W x D): 27.8 in x 24.5 in x 21.02 in
• Coil construction: All-aluminum (corrosion resistant)
• Coil features: Factory-installed TXV; multi-positional (upflow, downflow, horizontal); R32 leak mitigation kit included
• AHRI certified: Yes (coil when paired with compatible ACiQ equipment)
• Included items: ACiQ outdoor condenser and 24.5 in multi-positional cased evaporator coil
