Aciq AC-I-42AC14 3.5 Ton 14.3 SEER2 Air Conditioner (21 in Coil) AC-I-4860ACL-21

Product Description

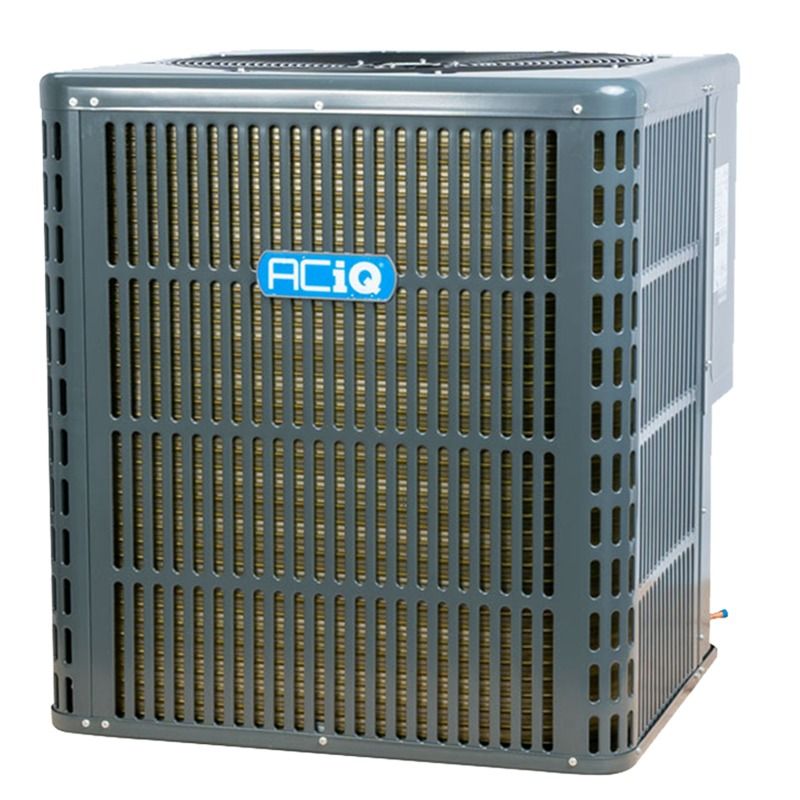

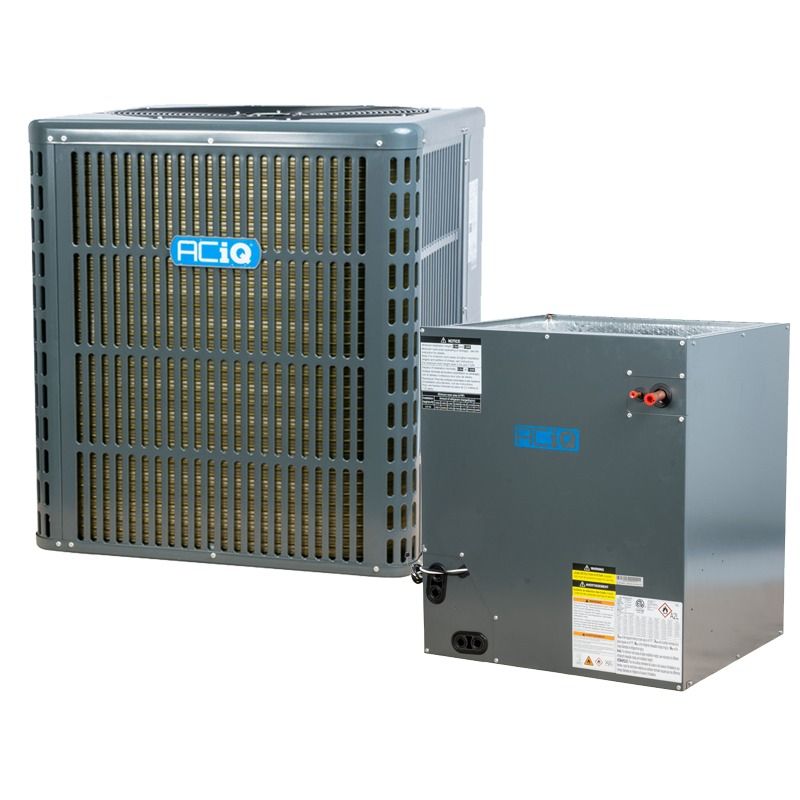

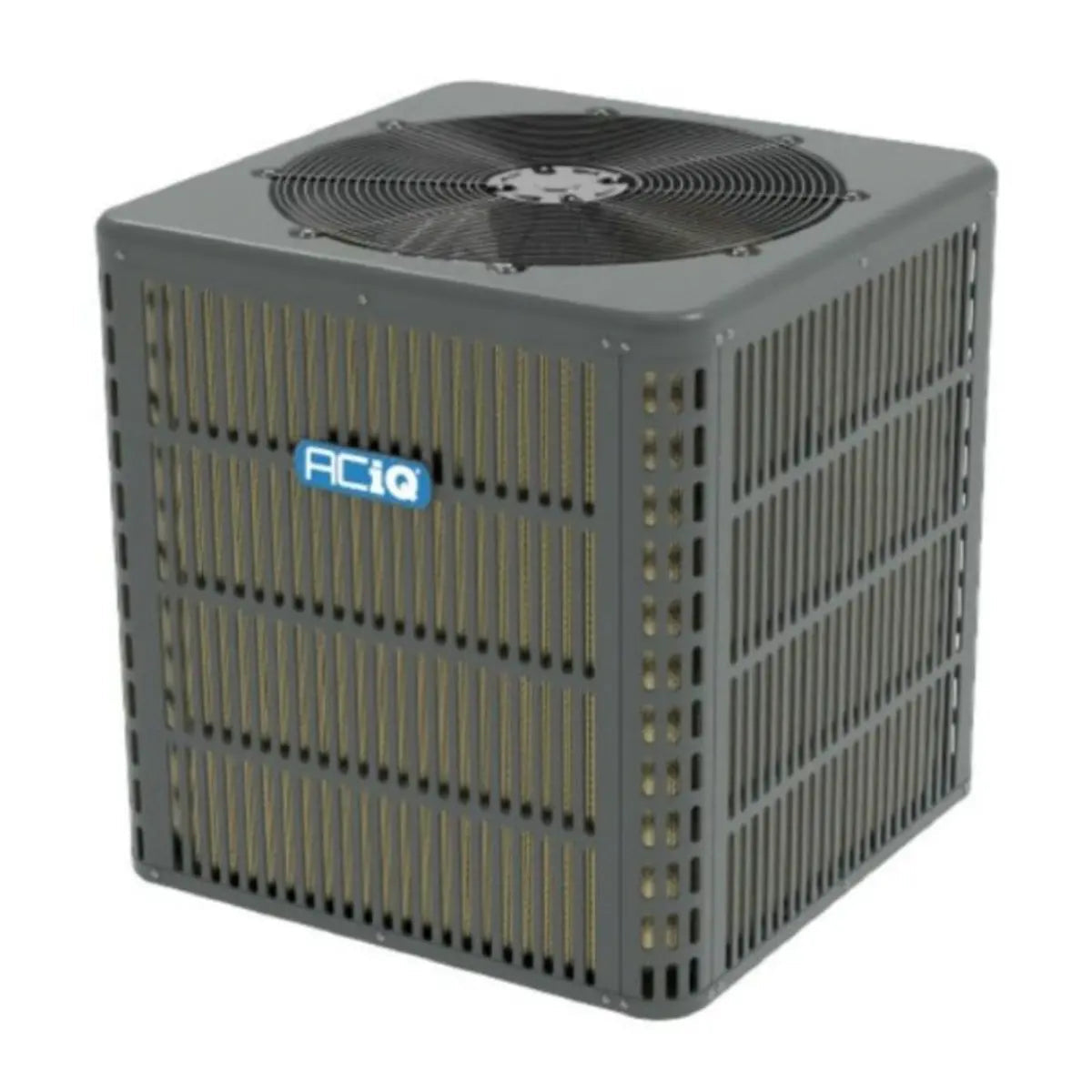

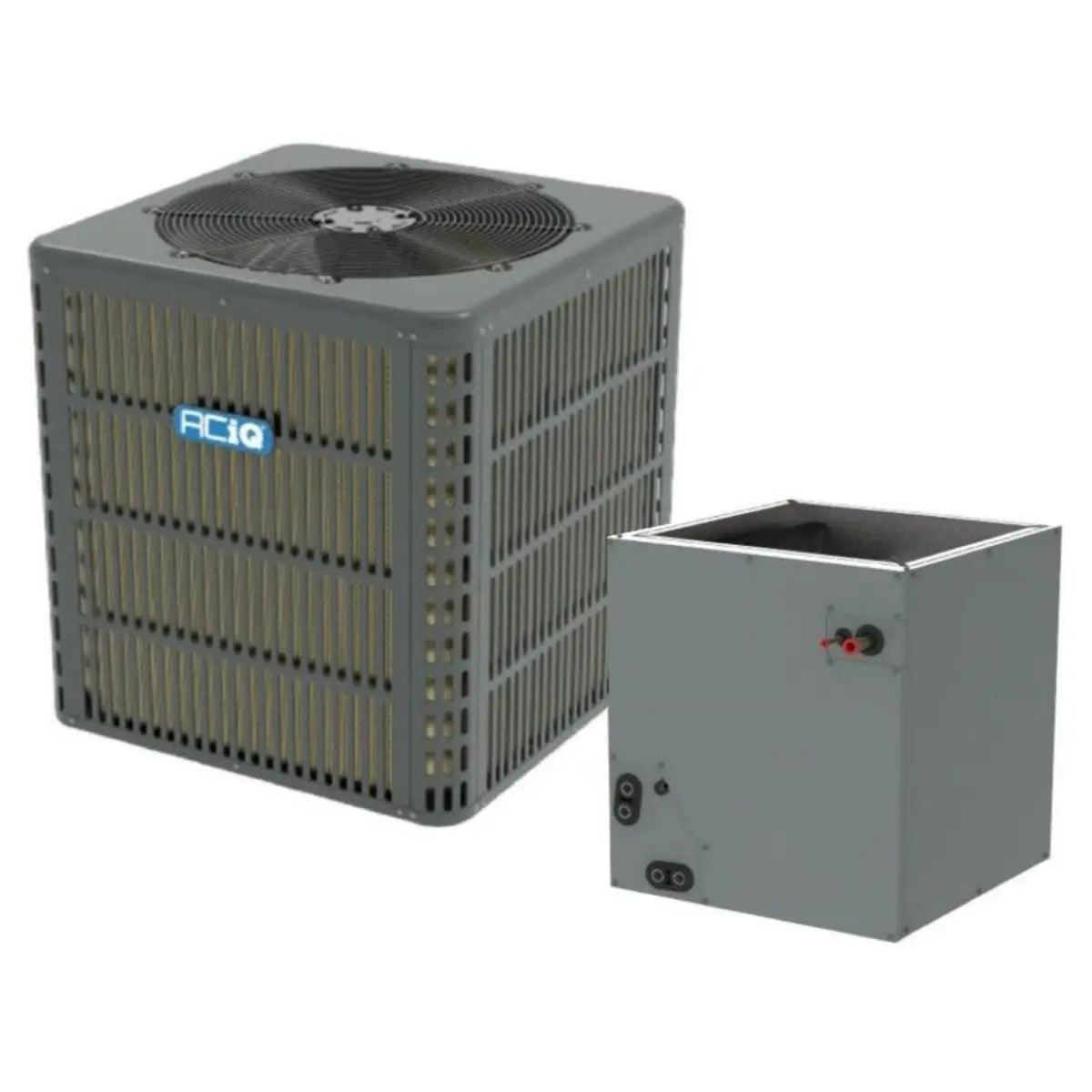

ACiQ AC-I-42AC14 paired with AC-I-4860ACL-21 is a matched 3.5 ton (42,000 BTU) air conditioning system featuring a 14.3 SEER2 outdoor condenser pre-charged with R32 and a 21 in multi-positional cased evaporator coil. The condenser is a top-discharge, single-stage rotary unit operating on 208/230V 1 phase 60 Hz. The coil includes a factory-installed TXV, all-aluminum construction, and an R32 leak mitigation kit for upflow, downflow, or horizontal installation.

• 3.5 ton (42,000 BTU) condenser, 14.3 SEER2, pre-charged with R32 (91.71 oz)

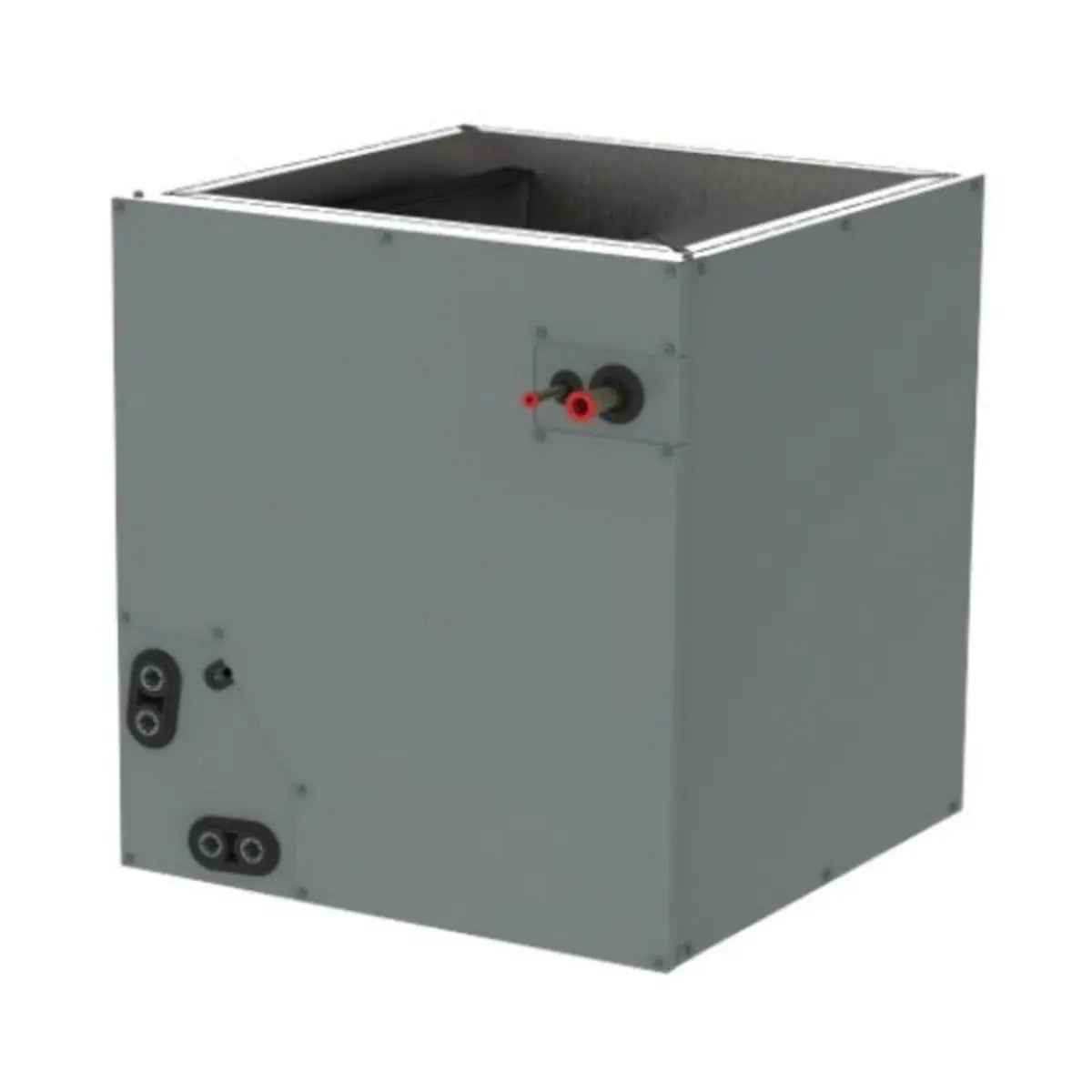

• 21 in multi-positional cased A-coil with factory-installed TXV, all-aluminum construction, and R32 leak mitigation kit
• Condenser: top-discharge rotary compressor, 208/230V 1Ph 60 Hz, sound ~60 dBA, breaker range 25–35 A

Product Highlights

Matched R32 3.5 ton condenser and 21 in multi-positional A-coil; 14.3 SEER2; factory TXV; R32 leak mitigation.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: AC-I-42AC14 / AC-I-4860ACL-21

Technical Specifications

• Brand: ACiQ
• Condenser MPN: AC-I-42AC14
• Coil MPN: AC-I-4860ACL-21
• Cooling Capacity: 42,000 BTU
• Tonnage: 3.5 Ton
• SEER2: 14.3
• Refrigerant: R32 (A2L)
• Refrigerant Charge: 91.71 oz
• Compressor Type: Rotary (single stage)
• Condenser Sound Level: 60 dBA
• Electrical: 208/230V 1 Phase 60 Hz
• Max Breaker Size: 35 Amps
• Min Breaker Size: 25 Amps
• Condenser Dimensions (H x W x D): 32.87 in x 29.13 in x 29.13 in
• Condenser Weight: 168 lbs
• Coil Type: 21 in multi-positional cased A-coil (upflow/downflow/horizontal)
• Coil Dimensions (H x W x D): 27.80 in x 21.00 in x 21.02 in
• Coil Weight: 87 lbs
• Coil Tonnage Range: 3.5 to 5 Ton
• Liquid Line Size: 3/8 in
• Suction Line Size: 3/4 in
• Coil Features: Factory-installed TXV; all-aluminum construction; includes R32 leak mitigation kit; AHRI certified when paired with compatible equipment
• Pre-charged: Pre-charged with R32 refrigerant
• Mounting Type: Top discharge (condenser)
• Application: Residential cooling
• Pairing Requirement: Requires indoor coil or air handler and equipment that supports R32 leak detection
