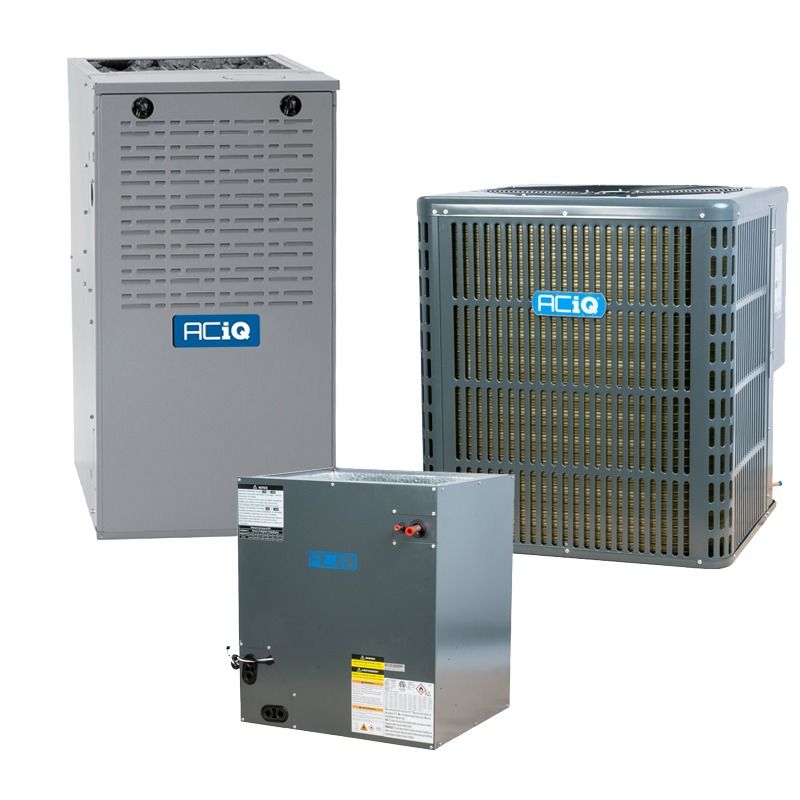

Aciq AC-I-42AC14 3.5 Ton 14.3 SEER2 60,000 BTU Furnace and AC System (Multi-positional) AC-I-4860ACL-21 / G80CTL0702120

Product Description

ACiQ AC-I-42AC14 / AC-I-4860ACL-21 / G80CTL0702120 is a matched 3.5 ton central HVAC system that pairs a 14.3 SEER2 outdoor condenser pre-charged with R32 refrigerant and a multi-positional 80% AFUE two-stage 60,000 BTU gas furnace with variable-speed blower. The system includes a cased A-coil compatible with R32 and supports upflow, downflow, and horizontal installations with separate electrical requirements for condenser and furnace.

• Matched system: 3.5 ton condenser (14.3 SEER2, rotary compressor) + 80% AFUE two-stage furnace + cased multi-positional evaporator coil
• Condenser pre-charged with R32 refrigerant (includes leak mitigation kit); condenser electrical 208/230V 1Ø 60 Hz
• Furnace features variable speed ECM blower, silicon nitride hot surface ignitor, direct ignition, and supports upflow/downflow/horizontal configurations

Product Highlights

Matched 3.5 ton R32 condenser and 80% AFUE two-stage furnace with multi-positional cased coil

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: AC-I-42AC14 / AC-I-4860ACL-21 / G80CTL0702120

Technical Specifications

• Brand: ACiQ
• Model / MPN: AC-I-42AC14 / AC-I-4860ACL-21 / G80CTL0702120
• Product ID: 225548
• System tonnage: 3.5 Ton
• Condenser model: AC-I-42AC14
• Condenser SEER2: 14.3
• Condenser EER2: 11.7
• Condenser cooling capacity: 42,000 BTU
• Refrigerant: R32 (pre-charged, 91.71 oz.)
• Condenser compressor type: Rotary (single stage)
• Condenser sound level: Approximately 60 dBA
• Condenser input voltage: 208/230V 1 Phase 60 Hz
• Condenser breaker size (min/max): 25 Amps min / 35 Amps max
• Furnace model: G80CTL0702120 (ACiQ G80CTL0702120A)
• Furnace input BTU: 66,000 BTU
• Furnace output BTU: 53,000 BTU (approximate)
• Furnace AFUE: 80%
• Furnace configuration: Upflow / Downflow / Horizontal (multi-positional)
• Furnace blower motor: Variable speed ECM (communicating)
• Furnace burner stages: Two-stage
• Furnace ignition: Direct ignition with silicon nitride hot surface ignitor
• Furnace fuel type: Natural Gas (field-convertible to Propane with LP kit)
• Furnace exhaust flue requirement: Metal
• Furnace input voltage: 115V 1 Phase 60 Hz
• Evaporator coil model: AC-I-4860ACL-21
• Coil style: Cased A-coil, multi-positional
• Coil tonnage range: 3.5 to 5 Ton
• Coil refrigerant compatibility: R32 (includes leak mitigation control kit)
• Electrical requirements: Condenser 208/230V 1ø 60 Hz; Furnace 115V 1ø 60 Hz
• Accessories / recommended: Line set, condenser installation kit, condenser installation accessories listed on product page
• AHRI certificate number (furnace): 213148662
• Equivalent models: Carrier 58TN0A070C21--20; Tempstar F80CTL0702120A; Bryant 880TA60070C21
