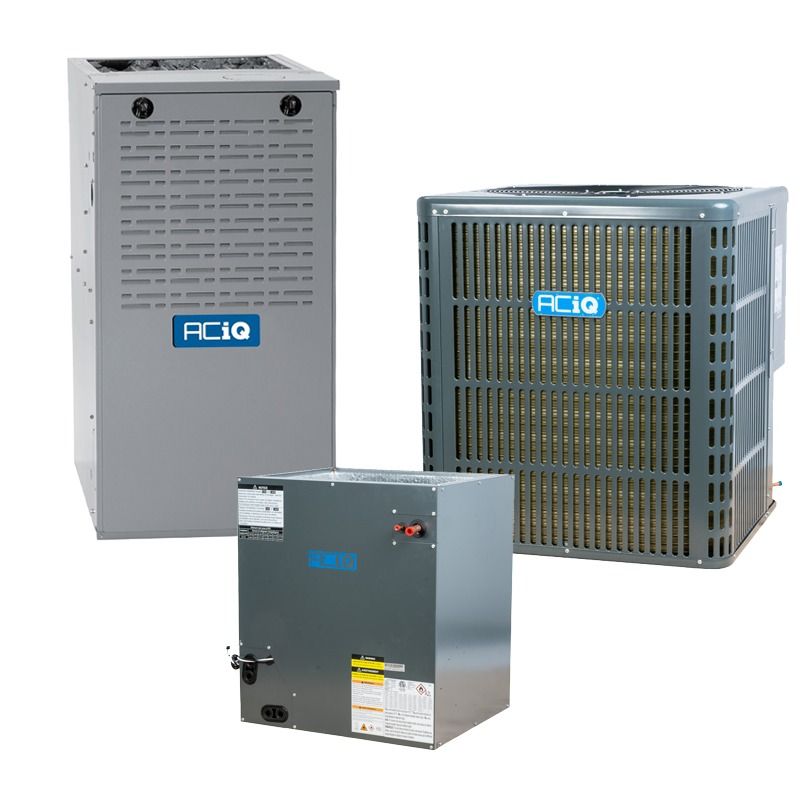

Aciq AC-I-42AC14 3.5 Ton 14.3 SEER2 110,000 BTU System (21 in Coil) AC-I-4860ACL-21 / N80MSN1102120A

Product Description

Aciq AC-I-42AC14 / AC-I-4860ACL-21 / N80MSN1102120A is a matched 3.5 ton HVAC system combining a 14.3 SEER2 R32 condenser, a 21 inch multi-positional cased evaporator coil, and a 110,000 BTU 80% AFUE multi-positional furnace. The condenser is pre-charged with 91.71 oz of R32 and requires 208/230 V 1 phase power; the furnace uses 115 V power with a multi 18-speed ECM blower and direct ignition.

• Condenser: 3.5 ton, 14.3 SEER2, 42,000 BTU cooling, rotary compressor, 208/230 V 1 Phase 60 Hz, 91.71 oz R32 charge, ~60 dBA
• Furnace: 110,000 BTU input, 80% AFUE, multi-positional (upflow/downflow/horizontal), multi 18-speed constant torque ECM blower, direct ignition with silicon nitride hot surface ignitor, 115 V
• Evaporator coil: 21 inch cased A-coil, multi-positional, 3/8 in liquid line, 3/4 in suction line, factory-installed TXV; system includes R32 refrigerant leak mitigation kit

Product Highlights

Matched 3.5 ton system using R32 refrigerant with multi-positional coil and furnace, rotary compressor condenser.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: AC-I-42AC14 / AC-I-4860ACL-21 / N80MSN1102120A

Technical Specifications

• Brand: ACiQ
• Manufacturer Part Number: AC-I-42AC14 / AC-I-4860ACL-21 / N80MSN1102120A
• Product ID: 225534
• System Tonnage: 3.5 Ton
• Cooling Capacity (BTU): 42,000 BTU
• Condenser SEER2: 14.3
• Condenser EER2: 11.7
• Refrigerant: R32
• Refrigerant Charge: 91.71 oz.
• Condenser Compressor Type: Rotary
• Condenser Sound Level: ~60 dBA
• Condenser Input Voltage: 208/230 V 1 Phase 60 Hz
• Condenser Breaker Size Min: 25 Amps
• Condenser Breaker Size Max: 35 Amps
• Condenser Liquid Valve Size: 3/8 in
• Condenser Suction Valve Size: 3/4 in
• Coil Style: Cased A-coil, multi-positional
• Coil Width: 21 in
• Coil Height: 27.80 in
• Coil Depth: 21.02 in
• Coil Tonnage Range: 3.5 to 5 Ton
• Coil Liquid Line: 3/8 in
• Coil Suction Line: 3/4 in
• Coil Features: All-aluminum construction with factory-installed TXV
• Furnace Heating Input (BTU): 110,000 BTU
• Furnace Approximate Output (BTU): 88,000 BTU (approx.)
• Furnace AFUE: 80%
• Furnace Configuration: Upflow / Downflow / Horizontal (multi-positional)
• Furnace Blower Motor: Multi 18-Speed Constant Torque ECM
• Furnace Ignition: Direct ignition with silicon nitride hot surface ignitor
• Furnace Fuel Type: Natural Gas (field-convertible to propane with optional LP kit)
• Furnace Input Voltage: 115 V 1 Phase 60 Hz
• Furnace Breaker Size Max: 15 Amps
• Furnace AHRI Certificate Number: 213146143
• Furnace Exhaust Flue Requirement: Metal
• Condenser Dimensions (H x W x D): 32.87 in x 29.13 in x 29.13 in
• Coil Dimensions (H x W x D): 27.80 in x 21 in x 21.02 in
• Furnace Dimensions (H x W x D): 33.25 in x 21 in x 29 in
• Notes: Requires compatible indoor equipment for R32 (A2L) refrigerant; includes R32 refrigerant leak mitigation kit and may require leak detection system for compliance
