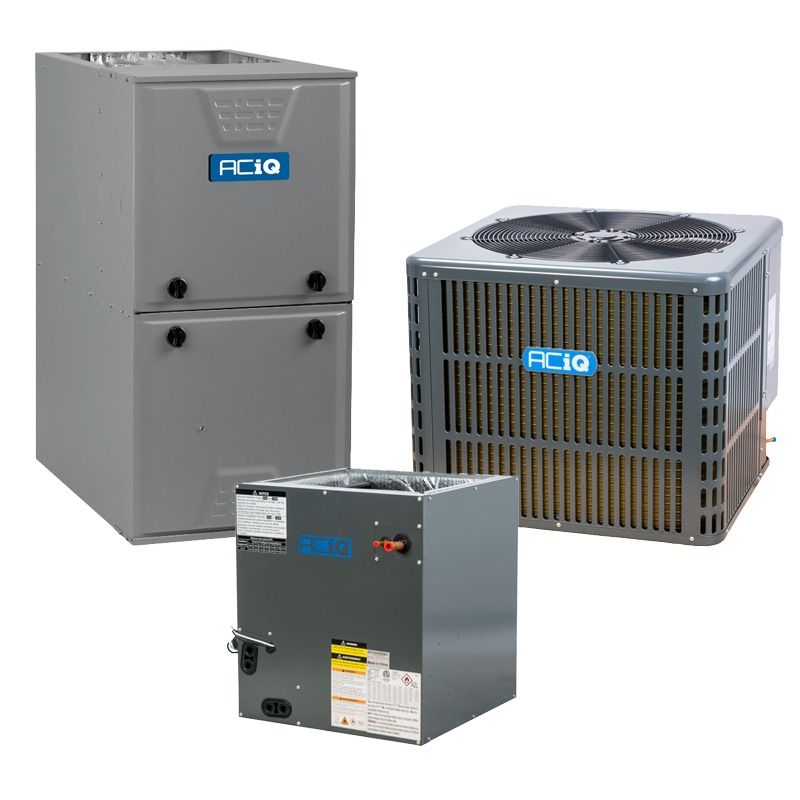

Aciq AC-I-36AC14 Matched Furnace & AC System 3 Ton 14.3 SEER2 96% AFUE (60,000 BTU) Replacement AC-I-3036ACL-17 / N96MSN0601716A

Product Description

ACiQ AC-I-36AC14 / AC-I-3036ACL-17 / N96MSN0601716A is a matched 3 ton split system that includes a 14.3 SEER2 R32 condenser, a cased A-coil with factory-installed TXV, and a 60,000 BTU 96% AFUE multi-positional gas furnace. The condenser is pre-charged with R32 and rated for 36,000 BTU cooling; the furnace features an ECM blower and single-stage burner for upflow, downflow, or horizontal installation in whole-house split configurations.

• Matched system: 3 ton condenser (36,000 BTU), cased evaporator coil, and 60,000 BTU furnace
• Condenser pre-charged with R32 (A2L); condenser rated 14.3 SEER2 and ~59 dBA sound level
• Multi-positional furnace with ECM blower, single-stage burner, 96% AFUE

Product Highlights

3 ton matched split system: 14.3 SEER2 condenser (R32), cased A-coil with TXV, 60,000 BTU 96% AFUE multi-positional furnace.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: AC-I-36AC14 / AC-I-3036ACL-17 / N96MSN0601716A
• Country of Origin: China

Technical Specifications

• Brand: ACiQ
• MPN: AC-I-36AC14 / AC-I-3036ACL-17 / N96MSN0601716A
• Product type: Matched furnace and AC system (condenser + coil + furnace)
• Tonnage: 3 Ton
• Cooling capacity (BTU): 36,000 BTU
• SEER2: 14.3
• EER2: 11.7
• Refrigerant: R32 (A2L)
• Condenser noise level: 59 dBA
• Condenser input voltage: 208/230V 1 Phase 60 Hz
• Condenser recommended breaker: 24 Amps min / 30 Amps max
• Condenser dimensions (H x W x D): 25 in x 29.13 in x 29.13 in
• Condenser weight: 154 lb
• Furnace SKU: N96MSN0601716A
• Heating capacity (BTU): 60,000 BTU
• AFUE: 96%
• Furnace fuel type: Natural Gas (field-convertible to propane with optional kit)
• Furnace configuration: Multi-positional (upflow, downflow, horizontal)
• Furnace blower motor: ECM
• Furnace maximum CFM: 1330
• Furnace burner stages: Single-stage
• Furnace input voltage: 115V
• Furnace dimensions (W x H x D): 17.5 in x 35 in x 29.5 in
• Furnace weight: 138 lb
• Coil SKU: AC-I-3036ACL-17
• Coil tonnage range: 2.5 to 3 Ton
• Coil style: Cased A-coil
• Coil refrigerant: R32
• Coil liquid line: 3/8 in
• Coil suction line: 3/4 in
• Coil cabinet width: 17.5 in
• Coil dimensions (H x W x D): 23.58 in x 17.5 in x 21.02 in
• Coil weight: 60 lb
• Compressor type: Scroll
• Number of compressors: 1
• Number of fan motors: 1
• Power phase: 1 Phase
• AHRI certificate number (furnace): 213148506
• Notes on refrigerant: Contains R32 (A2L) refrigerant; requires leak detection system and compatible indoor equipment
