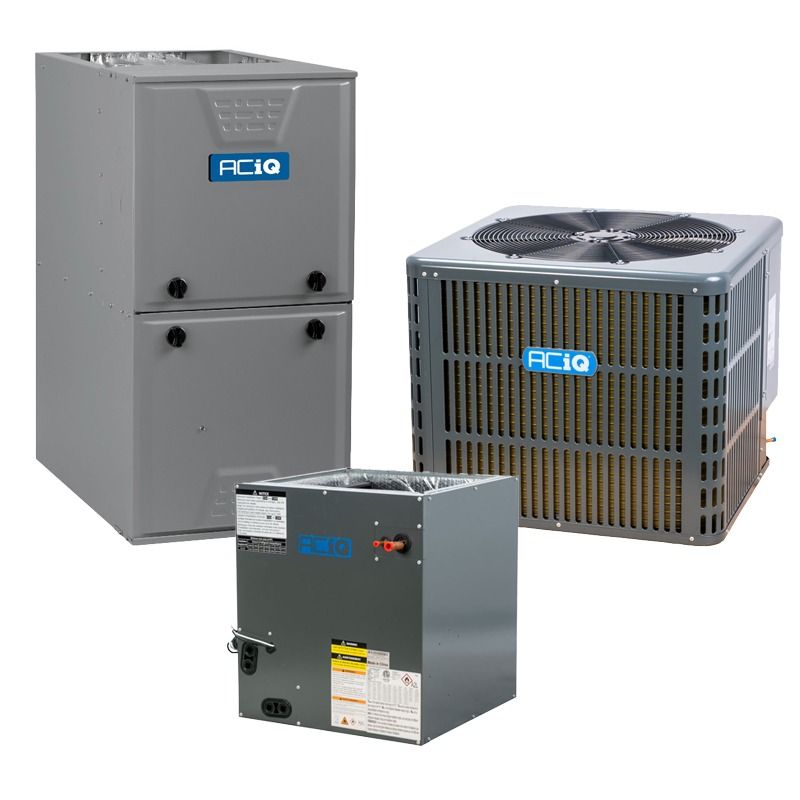

Aciq AC-I-36AC14 / AC-I-3036ACL-21 / N96MSN1002120A 3 Ton 14.3 SEER2 96% AFUE 100,000 BTU Multi-Positional System Replaces N95ESN1002120A

Product Description

The Aciq AC-I-36AC14 / AC-I-3036ACL-21 / N96MSN1002120A is a matched split residential HVAC system including a 3 ton 14.3 SEER2 R32 condenser, a 21-inch multi-positional cased A-coil, and a 100,000 BTU 96% AFUE multi-positional gas furnace. The system supports upflow, downflow, and horizontal installation, and the condenser requires 208/230V single-phase power with 24–30A breaker sizing.

• Condenser: 36,000 BTU (3 ton), 14.3 SEER2, rotary compressor, R32 refrigerant, approx. 59 dBA, 208/230V 1ø 60 Hz, 24–30A breaker
• Evaporator coil: 2.5–3 ton cased A-coil, 21" cabinet width, factory-installed TXV, all-aluminum construction, 3/8" liquid and 3/4" suction line sizes
• Furnace: 100,000 BTU input, 96% AFUE, single-stage gas burner, ECM blower (up to 2,125 CFM), multi-positional cabinet (35" H x 21" W x 29.5" D)

Product Highlights

Matched 3-ton R32 split system for residential central HVAC replacement with multi-positional installation.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: AC-I-36AC14 / AC-I-3036ACL-21 / N96MSN1002120A
• Country of Origin: China

Technical Specifications

• Brand: ACiQ
• Model / MPN: AC-I-36AC14 / AC-I-3036ACL-21 / N96MSN1002120A
• System type: Matched split air conditioner, evaporator coil, and gas furnace system
• Cooling capacity: 36,000 BTU (3 Ton)
• SEER2: 14.3
• EER2: 11.7
• Refrigerant type: R32 (A2L)
• Refrigerant charge: 79.37 oz.
• Condenser compressor type: Rotary
• Condenser stages: Single stage
• Condenser electrical: 208/230V 1 Phase 60 Hz
• Condenser breaker size (min/max): 24 Amps / 30 Amps
• Condenser dimensions (H x W x D): 25" x 29.13" x 29.13"
• Condenser weight: 154 lb
• Condenser noise level: 59 dBA (approx.)
• Evaporator coil tonnage: 2.5 to 3 Ton
• Evaporator coil type: Cased A-coil, multi-positional
• Evaporator coil cabinet width: 21"
• Evaporator coil dimensions (H x W x D): 23.58" x 21.02" x 21.02"
• Evaporator coil liquid line size: 3/8"
• Evaporator coil suction line size: 3/4"
• Evaporator coil features: Factory-installed TXV, all-aluminum construction, compatible with R32, AHRI certified
• Evaporator coil weight: 73 lb
• Furnace heating input (BTU): 100,000 BTU
• Furnace heating output (BTU): 96,000 BTU (at 96% AFUE)
• AFUE: 96%
• Furnace fuel type: Natural gas (field-convertible to propane with optional LP kit)
• Furnace configuration: Upflow / Downflow / Horizontal (multi-positional)
• Furnace blower motor: ECM (multi-speed)
• Furnace maximum CFM: 2,125
• Furnace burner stages: Single stage
• Furnace dimensions (H x W x D): 35" x 21.02" x 29.5"
• Furnace weight: 164 lb
• AHRI certificate (furnace): 213148762
• Safety / compliance notes: Condenser uses R32 (A2L) refrigerant; furnace not Ultra Low NOx compliant in some jurisdictions
• Country of origin: China
• Replaces / equivalents: Replaces N95ESN1002120A; Carrier equivalent 59SC5B100E21--20; Tempstar TN96MSN1002120A; Bryant 915SB60100E21
