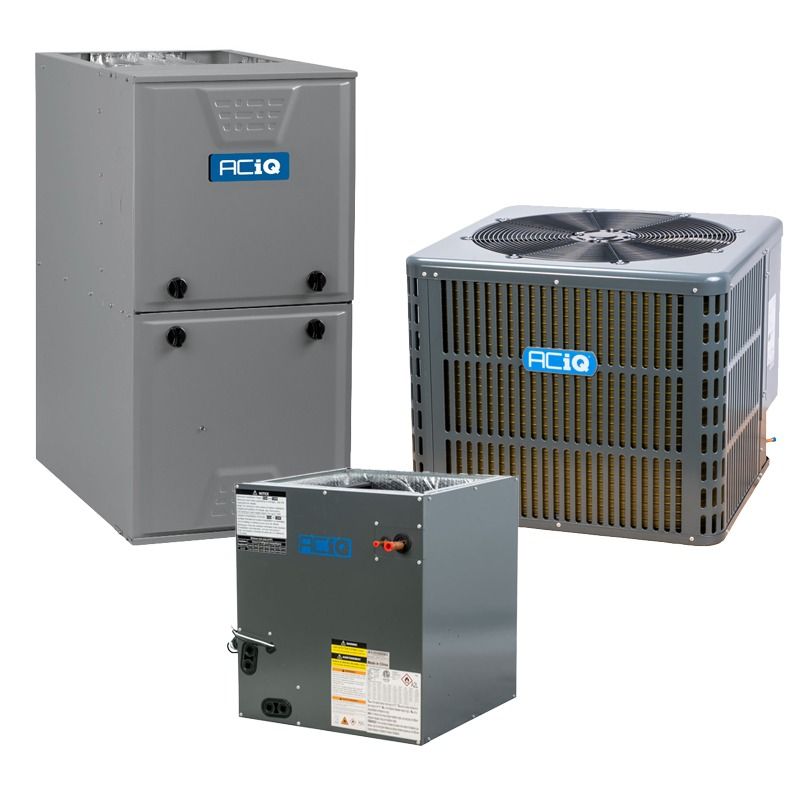

Aciq AC-I-36AC14 / AC-I-3036ACL-21 / N96MSN0802120A 3 Ton 14.3 SEER2 80,000 BTU System (Multi-Positional)

Product Description

The ACiQ AC-I-36AC14 / AC-I-3036ACL-21 / N96MSN0802120A is a matched central HVAC split system that combines a 36,000 BTU (3 ton) 14.3 SEER2 R32 outdoor condenser, a 21-inch multi-positional cased evaporator coil, and an 80,000 BTU 96% AFUE multi-positional gas furnace. The condenser is pre-charged with R32 refrigerant and the furnace features an ECM blower and on-board diagnostics for operational monitoring.

• Condenser: 36,000 BTU (3 ton), 14.3 SEER2, rotary compressor, pre-charged R32 refrigerant, approx. 59 dBA
• Furnace: 80,000 BTU, 96% AFUE, single-stage burner, ECM blower, multi-positional (upflow/downflow/horizontal)
• Evaporator coil: 21" cased A-coil, all-aluminum construction, factory-installed TXV, R32 compatible with leak mitigation kit

Product Highlights

Matched 3-ton R32 split system with multi-positional furnace and cased all-aluminum coil

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: AC-I-36AC14 / AC-I-3036ACL-21 / N96MSN0802120A

Technical Specifications

• Brand: ACiQ
• Model / MPN: AC-I-36AC14 / AC-I-3036ACL-21 / N96MSN0802120A
• System Type: Furnace and air conditioner matched split system
• Furnace SKU: N96MSN0802120A
• Furnace Heating BTU: 80,000
• Furnace Efficiency (AFUE): 96%
• Furnace Fuel Type: Natural gas (field convertible to propane with optional LP kit)
• Furnace Blower Motor: ECM
• Furnace Maximum CFM: 1855
• Furnace Configuration: Upflow / Downflow / Horizontal (multi-positional)
• Furnace Burner Stages: Single stage
• Furnace Dimensions (H x W x D): 35" x 21" x 29.5"
• Furnace AHRI Certificate Number: 213148761
• Condenser SKU: AC-I-36AC14
• Condenser Cooling BTU: 36,000 BTU (3 Ton)
• Condenser SEER2: 14.3
• Condenser EER2: 11.7
• Condenser Compressor Type: Rotary
• Condenser Refrigerant: R32 (pre-charged)
• Condenser Noise Level: Approx. 59 dBA
• Condenser Electrical (Input Voltage): 208/230V 1 Phase 60 Hz
• Condenser Max Breaker Size: 30 Amps
• Condenser Min Breaker Size: 24 Amps
• Condenser Liquid Valve Size: 3/8"
• Condenser Suction Valve Size: 3/4"
• Condenser Dimensions (H x W x D): 25" x 29.13" x 29.13"
• Coil SKU: AC-I-3036ACL-21
• Coil Tonnage: 2.5 to 3 Ton
• Coil Style: Cased A-coil, multi-positional
• Coil Dimensions (H x W x D): 23.58" x 21.02" x 21.02" (21" cabinet width)
• Coil Features: All-aluminum construction, factory-installed TXV, corrosion resistant, R32 compatible with leak mitigation kit
• Requirements: Compatible indoor equipment required; condenser must be paired with compatible R32 coil or air handler and a refrigerant leakage detection system for A2L refrigerant
