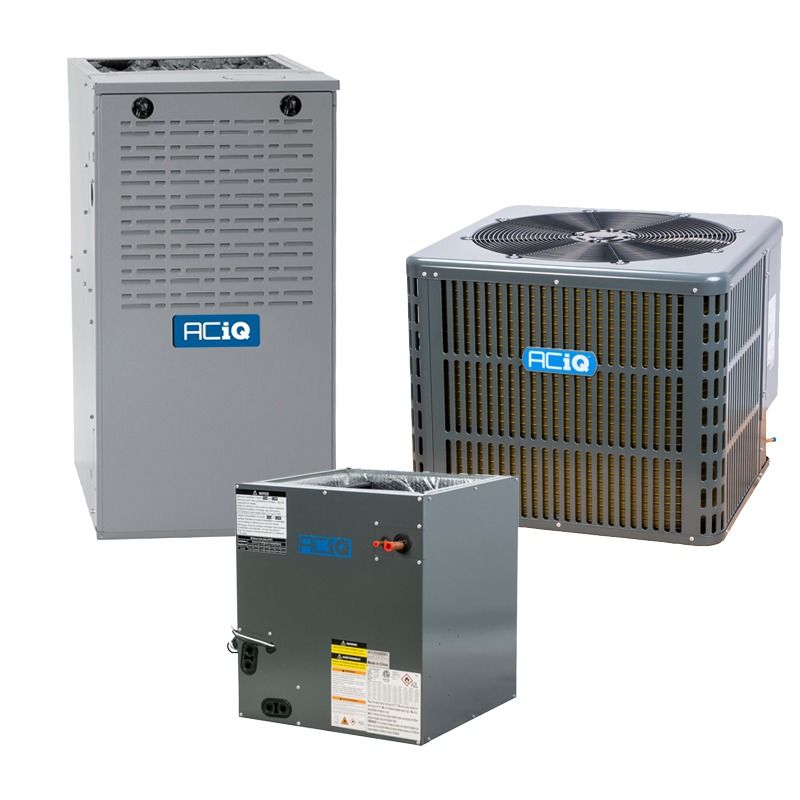

Aciq AC-I-36AC14 / AC-I-3036ACL-21 / N80MSN0902120A 3 Ton 14.3 SEER2 80% AFUE Multi-Positional HVAC System

Product Description

ACiQ AC-I-36AC14 / AC-I-3036ACL-21 / N80MSN0902120A is a matched 3-ton HVAC system combining a 36,000 BTU R32 condenser (14.3 SEER2), a 21-inch cased A-coil with factory-installed TXV, and an 88,000 BTU single-stage multi-positional gas furnace rated 80% AFUE (70,400 BTU output). The condenser uses a rotary compressor pre-charged with R32 (79.37 oz) on 208/230V 1Ph power; the furnace operates on 115V with a Multi 18-Speed Constant Torque blower and silicon nitride hot surface ignitor.

• Matched 3-ton system: AC-I-36AC14 condenser (36,000 BTU, 14.3 SEER2), AC-I-3036ACL-21 cased A-coil (factory TXV), N80MSN0902120A furnace (88,000 BTU input, 80% AFUE).
• Refrigerant and compressor: Pre-charged R32 (79.37 oz) with leak mitigation kit; rotary compressor; condenser electrical 208/230V 1Ph, 30A max breaker.
• Furnace features: Single-stage natural gas burner, Multi 18-Speed Constant Torque blower, direct ignition with silicon nitride hot surface ignitor, field-convertible to propane with optional LP kit.

Product Highlights

Matched 3-ton R32 system with 14.3 SEER2 condenser, 21" cased A-coil with TXV, and 80% AFUE multi-positional gas furnace; components configured for residential central HVAC replacement or system builds.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: AC-I-36AC14 / AC-I-3036ACL-21 / N80MSN0902120A

Technical Specifications

• Brand: ACiQ
• Model / MPN: AC-I-36AC14 / AC-I-3036ACL-21 / N80MSN0902120A
• System tonnage: 3 Ton (condenser); 2.5-3 Ton (coil)
• Cooling capacity: 36,000 BTU
• SEER2 rating: 14.3
• EER2 rating: 11.7
• Refrigerant type: R32 (A2L)
• Refrigerant charge: 79.37 oz
• Compressor type: Rotary
• Condenser decibel level: 59 dBA (approx.)
• Condenser input voltage: 208/230V 1 Phase 60 Hz
• Condenser max breaker size: 30 Amps (note: check nameplate / local code for exact MCA/MOP)
• Condenser liquid valve size: 3/8"
• Condenser suction valve size: 3/4"
• Furnace input BTU: 88,000 BTU
• Furnace output BTU: 70,400 BTU (at 80% AFUE)
• Furnace AFUE: 80%
• Furnace configuration: Multi-positional (upflow, downflow, horizontal)
• Furnace blower: Multi 18-Speed Constant Torque (MCT)
• Furnace ignition type: Direct ignition with silicon nitride hot surface ignitor
• Furnace input voltage: 115V 1 Phase 60 Hz
• Furnace max breaker size: 15 Amps
• Furnace fuel type: Natural gas (field-convertible to propane with optional LP kit)
• Coil model: AC-I-3036ACL-21
• Coil style: Cased A-coil, 21" cabinet width
• Coil construction: All-aluminum (corrosion resistant)
• Coil pre-installed TXV: Yes
• Coil compatibility: R32 (compatible)
• Maximum CFM: 1980
• Furnace motor horsepower: 1 HP
• Furnace motor RPM: 1050
• AHRI certificate number: 213146211
• Exhaust flue requirement: Metal flue required (80% AFUE furnace)
• Notes on refrigerant safety: R32 is A2L; requires leak mitigation and compatible components
