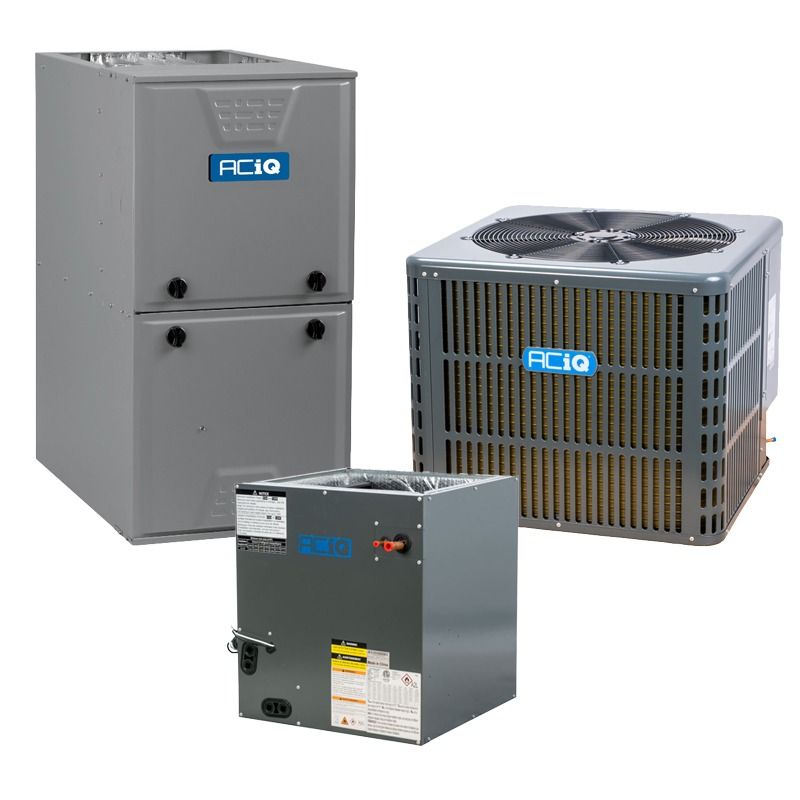

Aciq AC-I-36AC14 / AC-I-3036ACL-21 / G96VTN0802120 3 ton 14.3 SEER2 96% AFUE 80,000 BTU furnace and AC system (multi-positional)

Product Description

The Aciq AC-I-36AC14 / AC-I-3036ACL-21 / G96VTN0802120 is a matched residential HVAC system that pairs a 36,000 BTU 14.3 SEER2 condenser (pre-charged with R32) with a 2.5–3 ton cased evaporator coil and an 80,000 BTU 96% AFUE two-stage variable-speed gas furnace. The components are multi-positional for upflow, downflow, or horizontal installation and include factory-installed TXV and leak mitigation provisions for R32 (A2L) service.

• Condenser: 36,000 BTU cooling capacity, 14.3 SEER2, 11.7 EER2, rotary compressor, sound level ~59 dBA, pre-charged with R32
• Furnace: 80,000 BTU input, 96% AFUE, variable speed ECM blower, two-stage burner, multi-positional cabinet, electrical 120 V 1 phase 60 Hz
• Coil: 2.5–3 ton cased A-coil, factory-installed TXV, liquid line 3/8 in, suction line 3/4 in, corrosion-resistant all-aluminum construction

Product Highlights

Matched 3-ton residential system with R32 refrigerant, multi-positional furnace, and factory TXV coil.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: AC-I-36AC14 / AC-I-3036ACL-21 / G96VTN0802120

Technical Specifications

• Brand: Aciq
• Manufacturer Part Number: AC-I-36AC14 / AC-I-3036ACL-21 / G96VTN0802120
• Package Components: Condenser (AC-I-36AC14), Evaporator coil (AC-I-3036ACL-21), Furnace (G96VTN0802120)
• System Type: Matched residential HVAC system
• Condenser Cooling Capacity: 36,000 BTU
• Condenser SEER2: 14.3
• Condenser EER2: 11.7
• Condenser Refrigerant: R32 (A2L), pre-charged
• Condenser Compressor Type: Rotary
• Condenser Sound Level: 59 dBA
• Condenser Liquid Valve Size: 3/8 in
• Condenser Suction Valve Size: 3/4 in
• Condenser Electrical: 208/230 V 1 phase 60 Hz
• Condenser Max Breaker: 30 Amps
• Condenser Min Breaker: 24 Amps
• Condenser Height: 25 in
• Condenser Width: 29.13 in
• Condenser Depth: 29.13 in
• Condenser Weight: 154 lbs
• Furnace Heating Capacity: 80,000 BTU
• Furnace AFUE: 96%
• Furnace Blower Motor: Variable speed ECM
• Furnace Burner Stages: Two-stage
• Furnace Configuration: Multi-positional (upflow, downflow, horizontal)
• Furnace Fuel Type: Natural gas (field-convertible to propane with optional kit)
• Furnace Max CFM: 2005
• Furnace Electrical: 120 V 1 phase 60 Hz
• Furnace Height: 35 in
• Furnace Width: 21 in
• Furnace Depth: 29.5 in
• Furnace Weight: 156 lbs
• Coil Tonnage: 2.5 to 3 ton
• Coil Style: Cased A-coil
• Coil Liquid Line: 3/8 in
• Coil Suction Line: 3/4 in
• Coil Height: 23.58 in
• Coil Width: 21.02 in
• Coil Depth: 21.02 in
• Coil Weight: 73 lbs
• Coil Features: All-aluminum construction with factory-installed TXV, corrosion resistance
• AHRI Certificate Number: 213148556
• Exhaust Flue Requirement: Plastic or PVC
