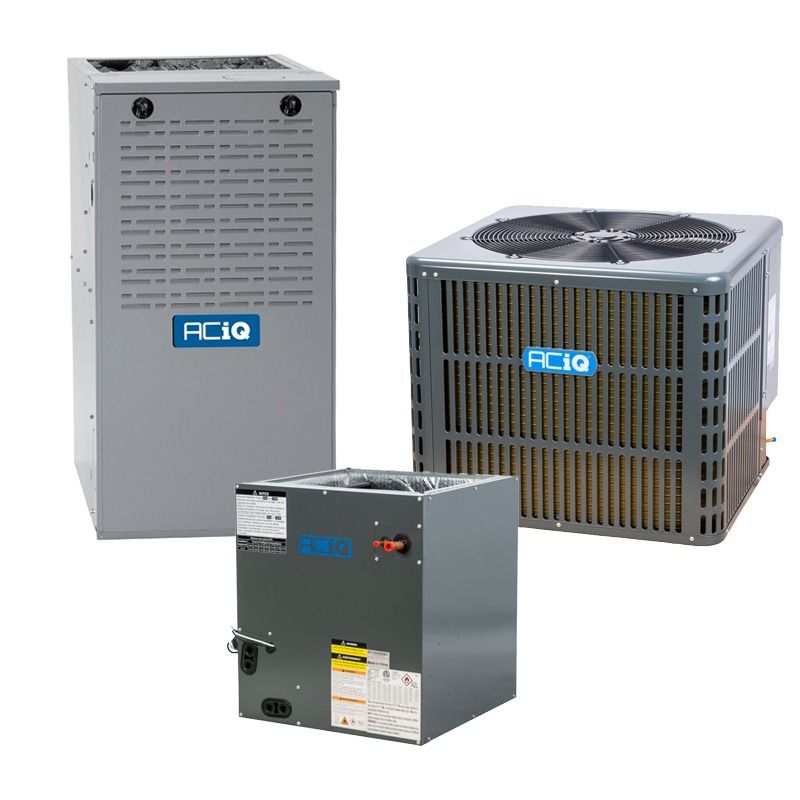

Aciq AC-I-36AC14 / AC-I-3036ACL-21 / G80CTL1102120 3 ton 14.3 SEER2 80% AFUE 110,000 BTU furnace and ac system (multi-positional)

Product Description

Aciq AC-I-36AC14 / AC-I-3036ACL-21 / G80CTL1102120 is a matched central HVAC system that pairs a 3 ton 14.3 SEER2 condenser with an R32 pre-charged 2.5–3 ton cased evaporator coil and a multi-positional 80% AFUE 110,000 BTU two-stage gas furnace. The furnace uses a communicating variable-speed ECM blower and direct silicon nitride hot surface ignition; the condenser is a single-stage rotary compressor rated at ~59 dBA and requires 208/230V power.

• Condenser: 3 ton, 14.3 SEER2, R32 refrigerant, rotary compressor, 79.37 oz charge, 208/230V 1Ø electrical
• Furnace: 80% AFUE, 110,000 BTU input, two-stage gas burner, variable-speed ECM blower, upflow/downflow/horizontal configuration
• Coil: 2.5–3 ton cased A-coil, R32 compatibility, 3/8" liquid and 3/4" suction connections

Product Highlights

Matched 3 ton R32 system with 14.3 SEER2 condenser, 80% AFUE two-stage furnace, multi-positional cased coil.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: AC-I-36AC14 / AC-I-3036ACL-21 / G80CTL1102120

Technical Specifications

• Brand: Aciq
• Model / MPN: AC-I-36AC14 / AC-I-3036ACL-21 / G80CTL1102120
• Product ID: 225437
• Condenser MPN: AC-I-36AC14
• Coil MPN: AC-I-3036ACL-21
• Furnace MPN: G80CTL1102120
• Condenser Tonnage: 3 Ton
• Condenser SEER2: 14.3
• Condenser EER2: 11.7
• Condenser Cooling BTU: 36,000 BTU
• Condenser Refrigerant: R32
• Condenser Refrigerant Charge: 79.37 oz.
• Condenser Compressor Type: Rotary
• Condenser Stages: Single Stage
• Condenser Liquid Valve Size: 3/8"
• Condenser Suction Valve Size: 3/4"
• Condenser Electrical (Input Voltage): 208/230V 1 Phase 60 Hz
• Condenser Max Breaker Size: 30 Amps
• Condenser Min Breaker Size: 24 Amps
• Condenser Dimensions (H x W x D): 25" x 29.13" x 29.13"
• Condenser Weight: 154 lbs
• Condenser Sound Level: 59 dBA
• Coil Tonnage: 2.5 to 3 Ton
• Coil Style: A-coil (cased)
• Coil Refrigerant: R32
• Coil Liquid Line Size: 3/8"
• Coil Suction Line Size: 3/4"
• Coil Dimensions (H x W x D): 23.58" x 21.02" x 21.02"
• Coil Weight: 73 lbs
• Furnace Efficiency (AFUE): 80%
• Furnace Heating BTU (input): 110,000
• Furnace Blower Motor: Variable speed ECM
• Furnace Maximum CFM: 2155
• Furnace Configuration: Upflow / Downflow / Horizontal (multi-positional)
• Furnace Electrical (Input Voltage): 115V 1 Phase 60 Hz
• Furnace Burner Stages: Two
• Furnace Ignition Type: Direct ignition with silicon nitride hot surface ignitor
• Furnace Fuel Type: Natural gas (field-convertible to propane with optional LP kit)
• Furnace Dimensions (H x W x D): 33 1/3" x 21" x 29"
• Furnace Weight: 152 lbs
• Furnace AHRI Certificate Number: 213148665
• Furnace Exhaust Flue Requirement: Metal
• Furnace Equivalent Models: Carrier 58TP0A110V21--22; Tempstar F80CTL1102120A; Bryant 880TA60100C21
