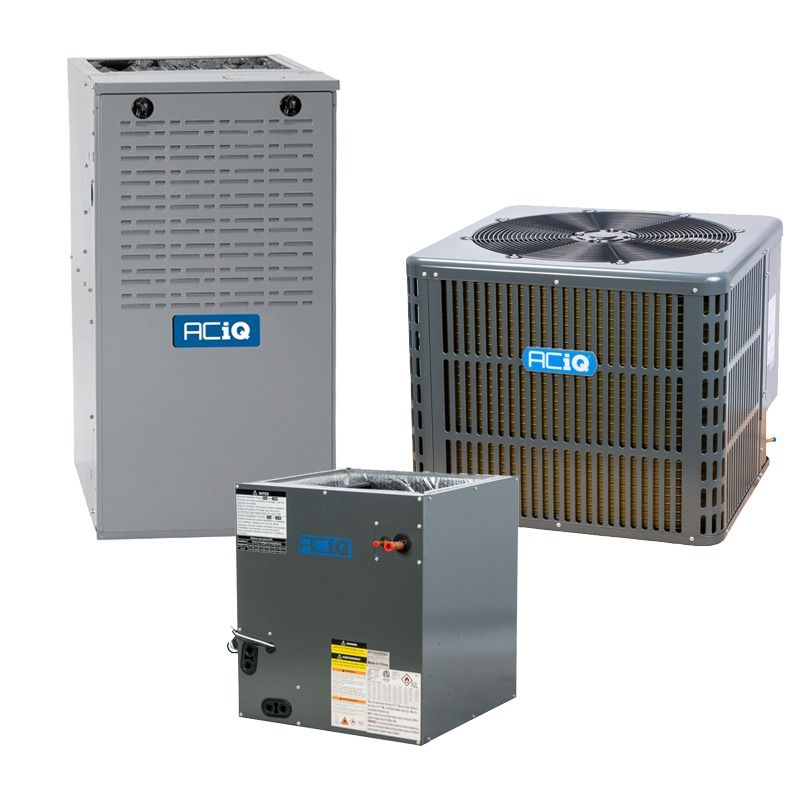

Aciq AC-I-36AC14 / AC-I-3036ACL-21 / G80CTL0902120 Packaged 3 Ton 14.3 SEER2 80% AFUE System (3 Ton)

Product Description

AciQ AC-I-36AC14 / AC-I-3036ACL-21 / G80CTL0902120 is a matched packaged HVAC system that includes a 3 ton 14.3 SEER2 R32 condenser, a multi-positional 80% AFUE two-stage gas furnace, and a 21-inch cased evaporator coil rated for 2.5–3 ton applications. The condenser is pre-charged with R32 and the furnace features a variable-speed ECM blower and silicon nitride hot surface ignitor for staged heating.

• Matched system: 3 ton 14.3 SEER2 R32 condenser (pre-charged) with 2.5–3 ton 21" cased evaporator coil and factory TXV; includes R32 refrigerant leak mitigation kit.
• Furnace G80CTL0902120: two-stage natural gas burner, 88,000 BTU input (~71,000 BTU output), 80% AFUE, variable-speed ECM blower, silicon nitride hot surface ignitor; multi-positional (upflow/downflow/horizontal).
• Electrical and installation: condenser 208/230V 1 phase 60 Hz (24–30 A breaker range), condenser sound ~59 dBA; furnace 115V 1 phase 60 Hz; requires metal exhaust flue and pairing with compatible R32 coil or air handler.

Product Highlights

Matched 3 ton R32 condenser, 80% AFUE two-stage furnace, 21" cased evaporator coil; multi-positional configurations; condenser 208/230V, furnace 115V; R32 pre-charged with leak mitigation.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: AC-I-36AC14 / AC-I-3036ACL-21 / G80CTL0902120

Technical Specifications

• Brand: ACiQ
• Model / MPN: AC-I-36AC14 / AC-I-3036ACL-21 / G80CTL0902120
• System Description: 3 ton 14.3 SEER2 condenser (R32) + 80% AFUE two-stage furnace + 2.5-3 ton 21" cased evaporator coil
• Condenser MPN: AC-I-36AC14
• Condenser Cooling Capacity: 36,000 BTU
• Condenser SEER2: 14.3
• Condenser EER2: 11.7
• Condenser Refrigerant: R32
• Condenser Sound Level: 59 dBA
• Condenser Input Voltage: 208/230V 1 Phase 60 Hz
• Condenser Breaker Requirements: 30 Amps max / 24 Amps min
• Condenser Liquid Valve Size: 3/8"
• Condenser Suction Valve Size: 3/4"
• Furnace MPN: G80CTL0902120
• Furnace Heating Input BTU: 88,000 BTU (input)
• Furnace AFUE: 80%
• Furnace Output BTU: Approx. 71,000 BTU (output at 80% AFUE)
• Furnace Blower Motor: Variable Speed - ECM
• Furnace Burner Stages: Two
• Furnace Ignition Type: Direct ignition with silicon nitride hot surface ignitor
• Furnace Fuel Type: Natural Gas (field-convertible to Propane with optional LP kit)
• Furnace Configuration: Upflow / Downflow / Horizontal (multi-positional)
• Furnace Input Voltage: 115V 1 Phase 60 Hz
• Furnace Exhaust Flue Requirement: Metal
• Coil MPN: AC-I-3036ACL-21
• Coil Tonnage: 2.5 to 3 Ton
• Coil Style: Cased A-coil (21" width)
• Coil Refrigerant: R32
• Coil Liquid Line: 3/8"
• Coil Suction Line: 3/4"
• Coil Features: Factory-installed TXV, all-aluminum construction
• AHRI Certificate Number (Furnace): 213148664
• Requirements / Notes: Condenser must be paired with compatible R32 evaporator coil or air handler and an R32 leakage detection system; professional installation recommended
