Aciq AC-I-36AC14 / AC-I-3036ACL-17 / R92MSN0801716A 80,000 BTU 3 Ton Multi-Positional System R92ESN0801716A

Product Description

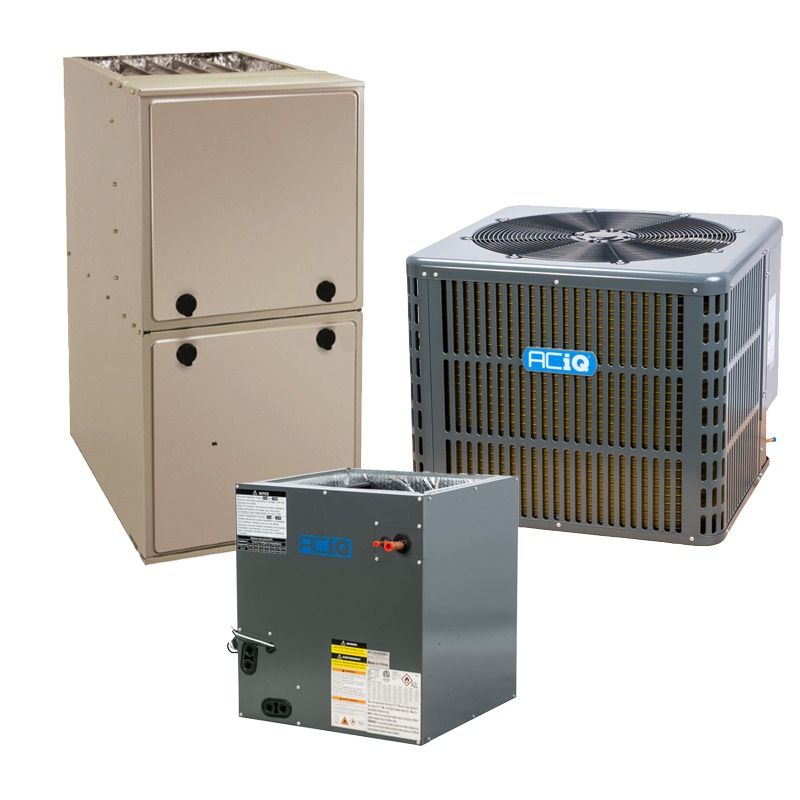

Aciq AC-I-36AC14 / AC-I-3036ACL-17 / R92MSN0801716A is a matched 3 ton split HVAC system that pairs a 14.3 SEER2 R32 outdoor condenser with a cased multi-positional evaporator coil and an 80,000 BTU 92% AFUE single-stage gas furnace. The condenser is pre-charged with R32 and operates on 208/230V; the furnace is 115V with a multi 18-speed constant torque ECM blower and requires plastic/PVC flue venting.

• Condenser: 36,000 BTU (3 Ton), 14.3 SEER2, 11.7 EER, rotary compressor, R32 pre-charge (79.37 oz), ~59 dBA

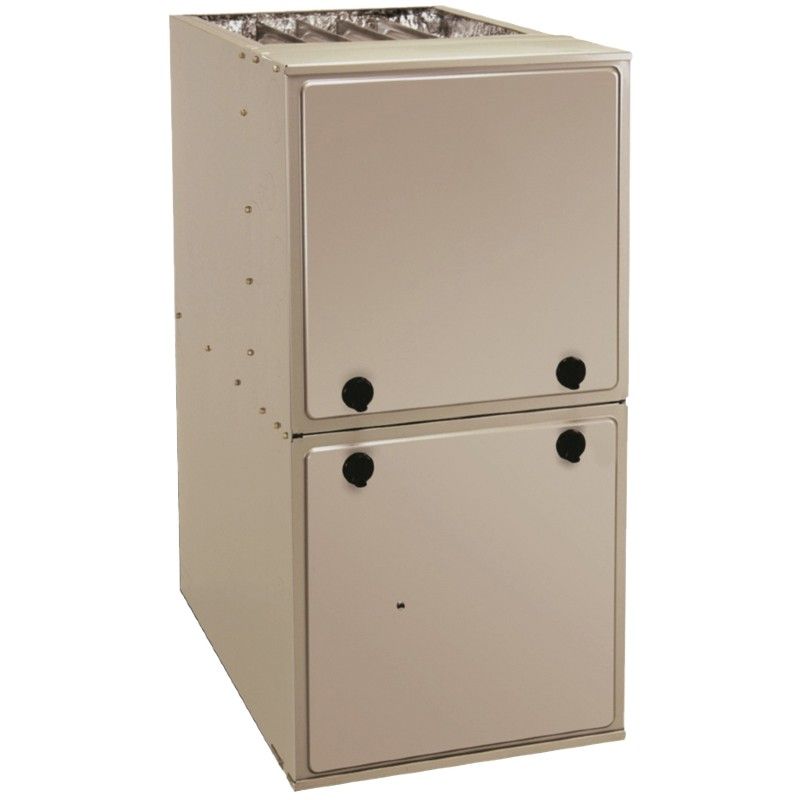

• Furnace: 80,000 BTU, 92% AFUE, single-stage natural gas (field-convertible to propane), 115V, multi 18-speed ECM blower, direct ignition
• Coil: AC-I-3036ACL-17 cased A-coil, multi-positional (upflow/downflow/horizontal), factory-installed TXV, compatible with R32 and includes leak mitigation kit

Product Highlights

Matched 3 ton R32 split system with 14.3 SEER2 condenser, 92% AFUE multi-positional furnace, cased A-coil with factory TXV.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: AC-I-36AC14 / AC-I-3036ACL-17 / R92MSN0801716A
• Country of Origin: China

Technical Specifications

• Brand: Aciq
• Model / MPN: AC-I-36AC14 / AC-I-3036ACL-17 / R92MSN0801716A
• System Type: Matched furnace, condenser and evaporator coil system
• Cooling Capacity: 36,000 BTU (3 Ton)
• Heating Capacity: 80,000 BTU
• Furnace AFUE: 92%
• SEER2: 14.3
• EER2: 11.7
• Refrigerant: R32 (pre-charged, 79.37 oz.)
• Condenser Compressor Type: Rotary
• Condenser Sound Level: Approximately 59 dBA
• Condenser Input Voltage: 208/230V 1 Phase 60 Hz
• Condenser Breaker Requirement: Min 24 Amps / Max 30 Amps
• Condenser Valve Sizes: Liquid 3/8", Suction 3/4"
• Coil SKU: AC-I-3036ACL-17
• Coil Type: Cased A-coil, multi-positional, factory-installed TXV
• Coil Tonnage: 2.5 to 3 Ton
• Coil Dimensions: Width 17.5", Height 23.58", Depth 21.02"
• Furnace SKU: R92MSN0801716A
• Furnace Input Voltage: 115V 1 Phase 60 Hz
• Furnace Blower Motor: Multi 18-Speed Constant Torque (MCT) ECM
• Furnace Maximum CFM: 1600
• Furnace Configuration: Upflow / Downflow / Horizontal (multi-positional)
• Furnace Ignition Type: Direct ignition with silicon nitride hot surface ignitor
• Fuel Type: Natural gas (field-convertible to propane with optional LP kit)
• Furnace Dimensions: Height 35", Width 17.5", Depth 29.5"
• Exhaust Flue Requirement: Plastic / PVC
• AHRI Certification: Coil AHRI certified; system AHRI-rated combinations available
• Equivalents: Carrier 59SC2D080E17--16; Tempstar R92ESN0801716A; Bryant 912SD48080E17
• System Requirements: Requires compatible indoor equipment and 208/230V electrical for condenser; proper breaker sizing
