Aciq AC-I-36AC14 / AC-I-3036ACL-17 / R92MSN0601714A 3 Ton 14.3 SEER2 92% AFUE 60,000 BTU Furnace and AC System (Multi-positional)

Product Description

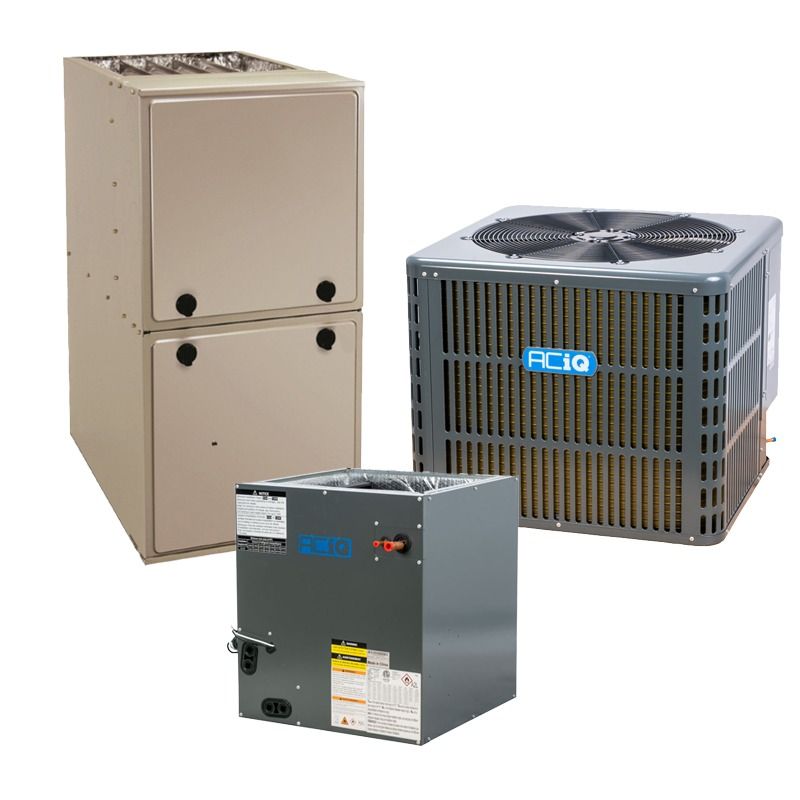

The ACiQ AC-I-36AC14 / AC-I-3036ACL-17 / R92MSN0601714A is a packaged 3-ton HVAC system that pairs a 36,000 BTU R32 condenser (14.3 SEER2) with a 60,000 BTU 92% AFUE multi-positional gas furnace and a 17.5" cased A-coil. The condenser is pre-charged with R32 and includes a refrigerant leak mitigation kit; the furnace features a multi-speed ECM blower and silicon nitride hot surface ignitor and is field-convertible to propane with an optional LP kit.

• Condenser: 36,000 BTU (3 Ton), 14.3 SEER2, R32 refrigerant, 79.37 oz charge, rotary compressor
• Furnace: 60,000 BTU, 92% AFUE, single-stage burner, multi-speed ECM blower, 115V 1 phase electrical
• Coil: 17.5" width cased A-coil with factory TXV, compatible with 2.5–3 Ton systems; multi-positional installation

Product Highlights

Packaged 3-ton R32 system with top-discharge condenser, multi-positional furnace and coil

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: AC-I-36AC14 / AC-I-3036ACL-17 / R92MSN0601714A

Technical Specifications

• System Model / MPN: AC-I-36AC14 / AC-I-3036ACL-17 / R92MSN0601714A
• Brand: ACiQ
• System Type: AC and furnace system (packaged 3-ton R32 system)
• Refrigerant: R32 (A2L)
• Condenser Model: AC-I-36AC14
• Condenser Cooling Capacity: 36,000 BTU (3 Ton)
• Condenser SEER2: 14.3
• Condenser EER2: 11.7
• Condenser Refrigerant Charge: 79.37 oz
• Condenser Compressor Type: Rotary
• Condenser Noise Level: 59 dBA
• Condenser Liquid Valve Size: 3/8"
• Condenser Suction Valve Size: 3/4"
• Condenser Electrical: 208/230V 1 Phase 60 Hz
• Condenser Max Breaker Size: 30 Amps
• Condenser Min Breaker Size: 24 Amps
• Condenser Dimensions: Height 25", Width 29.13", Depth 29.13"
• Condenser Weight: 154 lbs
• Coil Model: AC-I-3036ACL-17
• Coil Style: A-coil (cased, multi-positional) with factory TXV
• Coil Tonnage Range: 2.5 to 3 Ton
• Coil Liquid Line: 3/8"
• Coil Suction Line: 3/4"
• Coil Dimensions: Height 23.58", Width 17.5", Depth 21.02"
• Coil Weight: 60 lbs

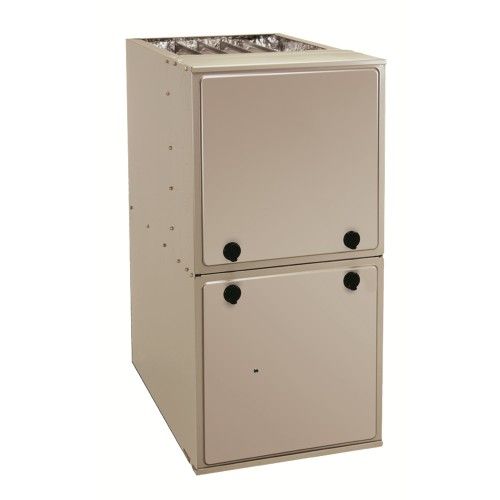

• Furnace Model: R92MSN0601714A
• Furnace Heating Capacity: 60,000 BTU
• Furnace AFUE: 92%
• Furnace Blower Motor: Multi-speed ECM
• Furnace Ignition Type: Direct ignition with silicon nitride hot surface ignitor
• Furnace Burner Stages: Single
• Furnace Fuel Type: Natural gas (field-convertible to propane with optional LP kit)
• Furnace Electrical: 115V 1 Phase 60 Hz
• Furnace Configuration: Upflow / Downflow / Horizontal (multi-positional)
• Furnace Exhaust Flue Requirement: Plastic / PVC
• Furnace Dimensions: Height 35", Width 17.5", Depth 29.5"
• Furnace Weight: 136 lbs
• System Requirements: Compatible indoor equipment required for R32; 208/230V supply for condenser; requires 30A max breaker for condenser
• Notes on Refrigerant: R32 is A2L and requires refrigerant leakage detection system and compatible indoor equipment
