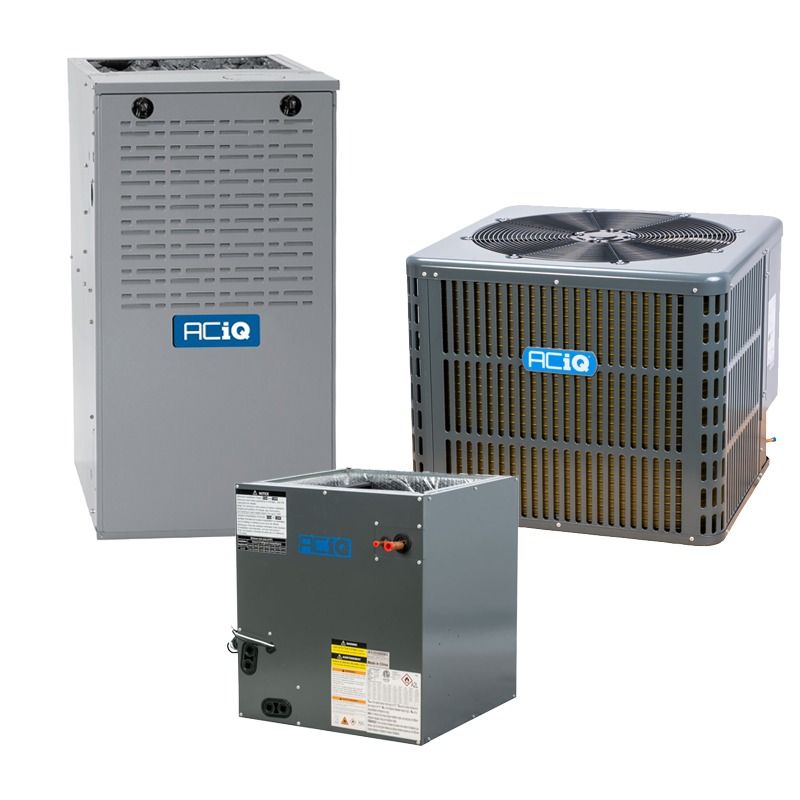

Aciq AC-I-36AC14 / AC-I-3036ACL-17 / N80MSN0701712A 3 ton 14.3 SEER2 66,000 BTU matched system (pack)

Product Description

The AciQ AC-I-36AC14 / AC-I-3036ACL-17 / N80MSN0701712A is a matched central HVAC split system combining a 3 ton 14.3 SEER2 R32 condenser, a 66,000 BTU 80% AFUE multi-positional furnace, and a 2.5 to 3 ton cased evaporator coil with factory-installed TXV. The condenser is top-discharge, pre-charged for R32 with a rotary compressor and rated about 59 dBA. The furnace uses a single-stage burner, multi-speed ECM blower, direct silicon nitride ignition, supports upflow/downflow/horizontal installation, and requires metal flue venting.

• 3 ton condenser (36,000 BTU) with 14.3 SEER2, rotary compressor, pre-charged for R32
• 66,000 BTU input 80% AFUE multi-positional furnace with multi-speed ECM blower and silicon nitride hot surface ignitor
• Cased A-coil (17.5 inch width) rated for 2.5 to 3 ton with factory-installed TXV and compatible liquid/suction line sizes

Product Highlights

Matched R32 split system: 3 ton condenser, 17.5" cased A-coil with TXV, and 66,000 BTU 80% AFUE multi-positional furnace.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: AC-I-36AC14 / AC-I-3036ACL-17 / N80MSN0701712A

Technical Specifications

• Brand: AciQ
• Model / MPN: AC-I-36AC14 / AC-I-3036ACL-17 / N80MSN0701712A
• System Type: Matched split system (condenser, evaporator coil, furnace)
• Condenser Cooling Capacity: 36,000 BTU (3 Ton)
• Condenser SEER2: 14.3
• Condenser EER2: 11.7
• Condenser Refrigerant Type: R32 (A2L)
• Condenser Refrigerant Charge: 79.37 oz.
• Condenser Compressor Type: Rotary
• Condenser Stages: Single stage
• Condenser Liquid Line Size: 3/8"
• Condenser Suction Line Size: 3/4"
• Condenser Electrical (Input Voltage): 208/230V 1 Phase 60 Hz
• Condenser Min Breaker Size: 24 Amps
• Condenser Max Breaker Size: 30 Amps
• Condenser Dimensions (H x W x D): 25" x 29.13" x 29.13"
• Condenser Weight: 154 lbs
• Condenser Sound Level: 59 dBA (approx.)
• Evaporator Coil SKU: AC-I-3036ACL-17
• Evaporator Coil Tonnage: 2.5 to 3 Ton
• Evaporator Coil Style: Cased A-coil, multi-positional
• Evaporator Coil Refrigerant: R32
• Evaporator Coil Liquid Line Size: 3/8"
• Evaporator Coil Suction Line Size: 3/4"
• Evaporator Coil Cabinet Width: 17.5"
• Evaporator Coil Dimensions (H x W x D): 23.58" x 17.5" x 21.02"
• Evaporator Coil Weight: 60 lbs
• Furnace SKU: N80MSN0701712A
• Furnace Input BTU: 66,000 BTU
• Furnace Output BTU: 52,800 BTU (approx.)
• Furnace AFUE: 80%
• Furnace Configuration: Upflow / Downflow / Horizontal (multi-positional)
• Furnace Burner Stages: Single stage
• Furnace Blower Motor: Multi-speed ECM
• Furnace Max CFM: 1005
• Furnace Ignition Type: Direct ignition with silicon nitride hot surface ignitor
• Furnace Fuel Type: Natural gas (field-convertible to propane with optional kit)
• Furnace Electrical (Input Voltage): 115V 1 Phase 60 Hz
• Furnace Max Breaker Size: 15 Amps
• Furnace Dimensions (H x W x D): 33 1/3" x 17 1/2" x 29"
• Furnace Weight: 120 lbs
• Furnace Exhaust Flue Requirement: Metal
• Furnace AHRI Certificate Number: 213146136
• Included Accessories: R32 refrigerant leak mitigation kit
• Electrical Requirements (system): Condenser 208/230V 1Ph 60Hz; furnace 115V 1Ph 60Hz
• Safety / Compliance: R32 (A2L) refrigerant requires leakage detection per installation requirements; furnace not Low NOx/ULN in CA
