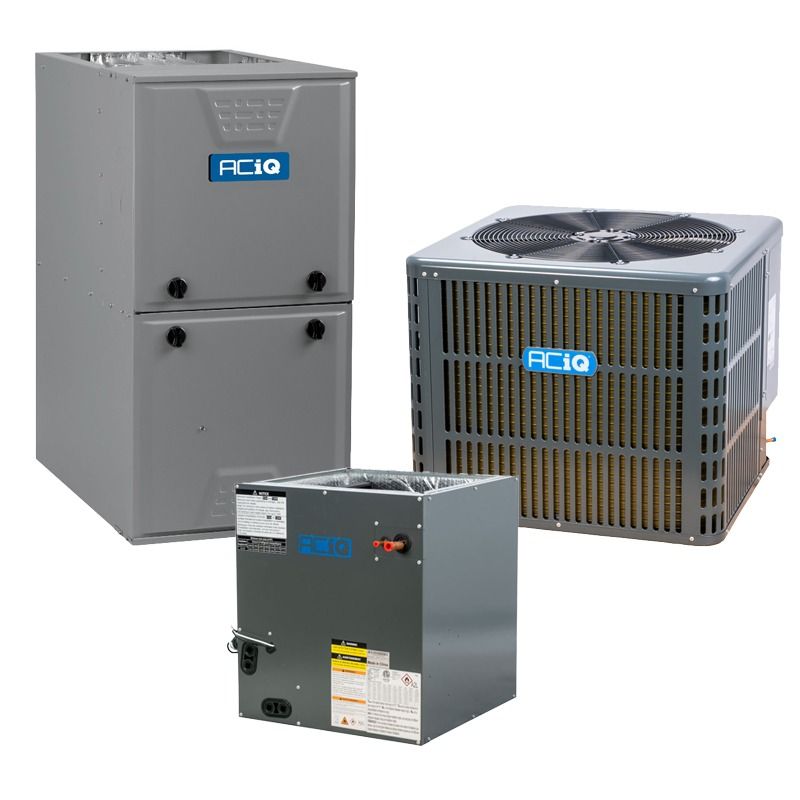

Aciq AC-I-36AC14 / AC-I-3036ACL-17 / G96VTN0401712 3 Ton 14.3 SEER2 96% AFUE 40,000 BTU Furnace and AC System (Multi-Positional) G96VTN0401712

Product Description

ACiQ AC-I-36AC14 / AC-I-3036ACL-17 / G96VTN0401712 is a matched central HVAC system that bundles a 3 ton 14.3 SEER2 R32 condenser, a 40,000 BTU 96% AFUE two-stage multi-positional gas furnace, and a compatible cased A-coil evaporator. The condenser operates on 208/230V single phase and is pre-charged with R32; the furnace uses 120V single phase and features a variable speed blower for modulated airflow and two-stage heating.

• Condenser: 36,000 BTU (3 ton), 14.3 SEER2, rotary compressor, pre-charged with R32, 208/230V 1 phase, approximately 59 dBA
• Furnace: 40,000 BTU, 96% AFUE, two-stage gas burner, variable speed blower, multi-positional upflow/downflow/horizontal, 120V 1 phase
• Evaporator coil: cased A-coil compatible with R32, factory TXV, liquid line 3/8 in, suction line 3/4 in, cabinet width 17.5 in

Product Highlights

Matched 3 ton R32 split system with 14.3 SEER2 cooling, 96% AFUE two-stage furnace, multi-positional installations.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: AC-I-36AC14 / AC-I-3036ACL-17 / G96VTN0401712
• Country of Origin: China

Technical Specifications

• Brand: ACiQ
• Model / MPN: AC-I-36AC14 / AC-I-3036ACL-17 / G96VTN0401712
• System type: Matched condenser, evaporator coil and gas furnace split system
• Cooling capacity: 36,000 BTU (3 Ton)
• SEER2 Rating: 14.3
• EER2 / EER: 11.7
• Refrigerant: R32 (pre-charged)
• Condenser compressor type: Rotary
• Condenser refrigerant charge: 79.37 oz.
• Condenser decibel level: 59 dBA
• Condenser electrical / Input Voltage: 208/230V 1 Phase 60 Hz
• Condenser max breaker size: 30 Amps
• Condenser min breaker size: 24 Amps
• Condenser liquid valve size: 3/8 inch
• Condenser suction valve size: 3/4 inch
• Condenser dimensions (H x W x D): 25 in x 29.13 in x 29.13 in
• Condenser weight: 154 lbs
• Furnace heating BTU: 40,000 BTU
• Furnace AFUE: 96%
• Furnace blower motor: Variable speed (ECM)
• Furnace burner stages: Two
• Furnace fuel type: Natural gas (field-convertible to propane with optional LP kit)
• Furnace electrical / Input Voltage: 120V 1 Phase 60 Hz
• Furnace dimensions (H x W x D): 35 in x 17.5 in x 29.5 in
• Furnace weight: 133 lbs
• Furnace exhaust flue requirement: Plastic / PVC
• Coil SKU: AC-I-3036ACL-17
• Coil style: Cased A-coil (multi-positional)
• Coil tonnage compatibility: 2.5 to 3 Ton
• Coil liquid line: 3/8 inch
• Coil suction line: 3/4 inch
• Coil dimensions (H x W x D): 23.58 in x 17.5 in x 21.02 in
• Coil weight: 60 lbs
• Coil features: Factory-installed TXV, all-aluminum construction (corrosion resistant)
• System configuration / Mounting type: Multi-positional: upflow, downflow, horizontal
• Power phase: Single phase
• Recommended breaker: Condenser requires 24 to 30 Amp breaker
• AHRI certificate number: 213148540
• Included items: Outdoor condenser, cased evaporator coil, 40,000 BTU furnace, R32 leak mitigation kit
• Country of origin: China
