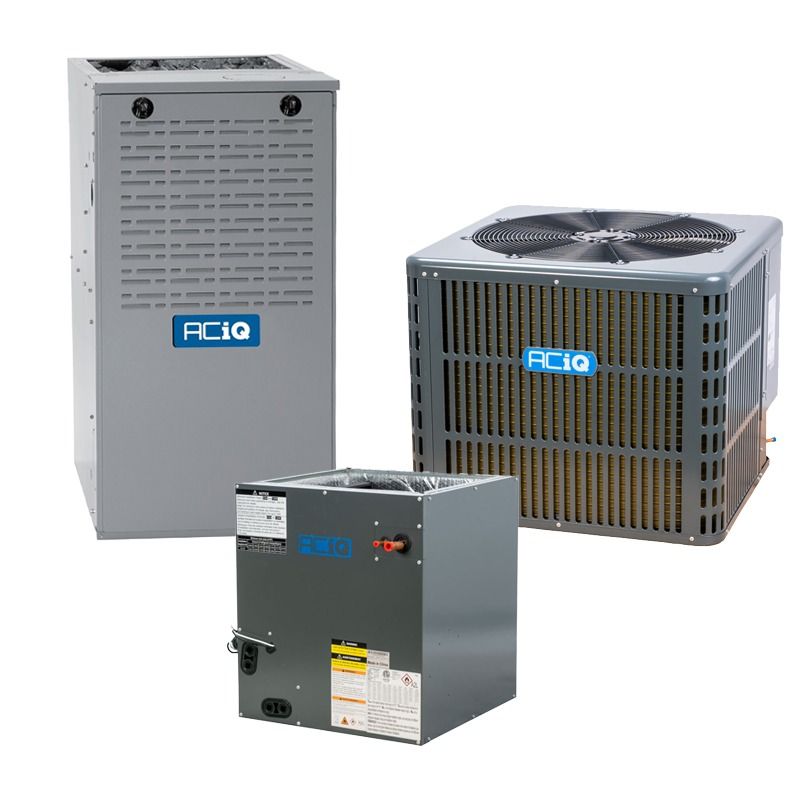

Aciq AC-I-36AC14 AC-I-3036ACL-17 G80CTL0701716 3 Ton 14.3 SEER2 80% AFUE 60,000 BTU Furnace and AC System (Multi-Positional)

Product Description

The ACIQ AC-I-36AC14 / AC-I-3036ACL-17 / G80CTL0701716 is a matched 3-ton split HVAC system combining a R32 pre-charged outdoor condenser, a multi-positional two-stage gas furnace, and a cased evaporator coil. The condenser is rated 14.3 SEER2 and 11.7 EER for cooling, and the furnace is specified as an 80% AFUE two-stage unit with variable speed ECM blower and silicon nitride hot surface ignition. The system supports upflow, downflow, and horizontal installations and requires compatible indoor equipment and appropriate electrical supplies.

• Condenser: 36,000 BTU (3 ton), 14.3 SEER2, 11.7 EER, R32 refrigerant pre-charge (79.37 oz.), rotary compressor, 208/230 V 1 phase
• Furnace: multi-positional two-stage gas furnace (listed 60,000 BTU), 66,000 BTU input / ~53,000 BTU output at 80% AFUE, variable speed ECM blower, direct silicon nitride ignition, 115 V
• Evaporator coil: cased A-coil for 2.5 to 3 ton systems, liquid line 3/8 inch, suction line 3/4 inch; system includes R32 leak mitigation kit and matched indoor/outdoor components

Product Highlights

Matched 3-ton R32 split system with 14.3 SEER2 condenser, multi-positional 80% AFUE two-stage furnace, and cased A-coil; designed for residential split-system installations.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: AC-I-36AC14 / AC-I-3036ACL-17 / G80CTL0701716
• Country of Origin: China

Technical Specifications

• Brand: ACiQ
• Model / MPN: AC-I-36AC14 / AC-I-3036ACL-17 / G80CTL0701716
• System type: Residential central split-system
• Condenser cooling capacity: 36,000 BTU (3 Ton)
• Condenser SEER2: 14.3
• Condenser EER2: 11.7
• Condenser refrigerant: R32
• Condenser refrigerant charge: 79.37 oz.
• Condenser compressor type: Rotary
• Condenser electrical: 208/230 V, 1 Phase, 60 Hz
• Condenser max breaker size: 30 Amps
• Condenser min breaker size: 24 Amps
• Condenser dimensions (H x W x D): 25" x 29.13" x 29.13"
• Condenser weight: 154 lbs
• Condenser sound level: 59 dBA (approx)
• Coil SKU: AC-I-3036ACL-17
• Coil tonnage: 2.5 to 3 Ton
• Coil style: Cased A-coil, multi-positional
• Coil cabinet width: 17.5"
• Coil dimensions (H x W x D): 23.58" x 17.5" x 21.02"
• Coil refrigerant: R32
• Coil liquid line size: 3/8"
• Coil suction line size: 3/4"
• Coil weight: 60 lbs
• Furnace SKU: G80CTL0701716
• Furnace configuration: Upflow / Downflow / Horizontal (multi-positional)
• Furnace heating input BTU: 66,000 BTU (input)
• Furnace output BTU (approx): 53,000 BTU (approx, 80% of input)
• Furnace AFUE: 80%
• Furnace burner stages: Two
• Furnace blower motor: Variable speed ECM (communicating)
• Furnace maximum CFM: 1375
• Furnace ignition type: Direct ignition with silicon nitride hot surface ignitor
• Furnace fuel type: Natural Gas (field-convertible to propane with optional LP kit)
• Furnace electrical: 115 V, 1 Phase, 60 Hz
• Furnace dimensions (H x W x D): 33 1/3" x 17 1/2" x 29"
• Furnace weight: 126 lbs
• Exhaust flue requirement (furnace): Metal
• Power phase: 1 Phase
• Compressor quantity: 1
• Cooling stage: Single stage
• Heating stages: Two stage
• Notes on refrigerant compatibility: R32 (A2L) - requires refrigerant leakage detection system and compatible indoor equipment when installed
