Aciq AC-I-36AC14 / AC-I-3036ACL-17 3 Ton 14.3 SEER2 Air Conditioner with 17.5 inches Multi-Positional Cased Coil (17.5 inches Cabinet)

Product Description

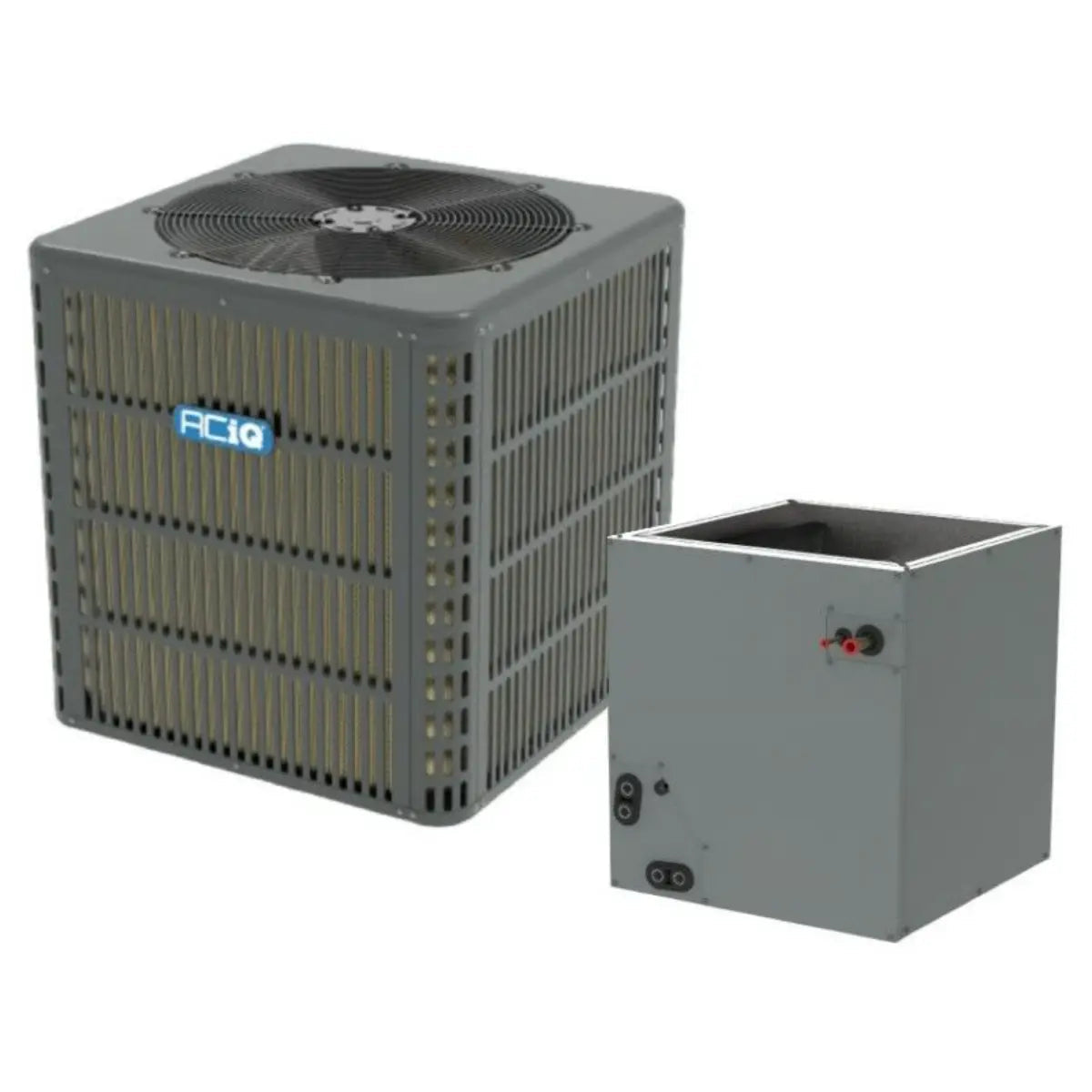

The Aciq AC-I-36AC14 / AC-I-3036ACL-17 is a matched 3 ton (36,000 BTU) air conditioner condenser and 17.5-inch multi-positional cased evaporator coil kit. The condenser is a single-stage rotary compressor unit rated 14.3 SEER2, pre-charged with R32 (79.37 oz) and designed for 208/230V 1Ø 60 Hz operation. The coil is all-aluminum, factory-equipped with a TXV and includes an R32 leak mitigation control kit.

• Condenser: 36,000 BTU (3 ton), 14.3 SEER2, single-stage rotary compressor, ~59 dBA, pre-charged with R32 (79.37 oz).
• Electrical and refrigerant: 208/230V 1 Phase 60 Hz input, max breaker 30 A, liquid line 3/8" and suction line 3/4" connections.
• Coil: 17.5" multi-positional cased A-coil, all-aluminum construction, factory-installed TXV, includes R32 leak mitigation control kit; coil fits upflow, downflow, or horizontal installations.

Product Highlights

Matched 3 ton condenser and 17.5" multi-positional cased evaporator coil; 14.3 SEER2; R32 refrigerant; factory TXV.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: AC-I-36AC14 / AC-I-3036ACL-17

Technical Specifications

• Brand: Aciq
• Model / MPN: AC-I-36AC14 / AC-I-3036ACL-17
• Product ID: 223313

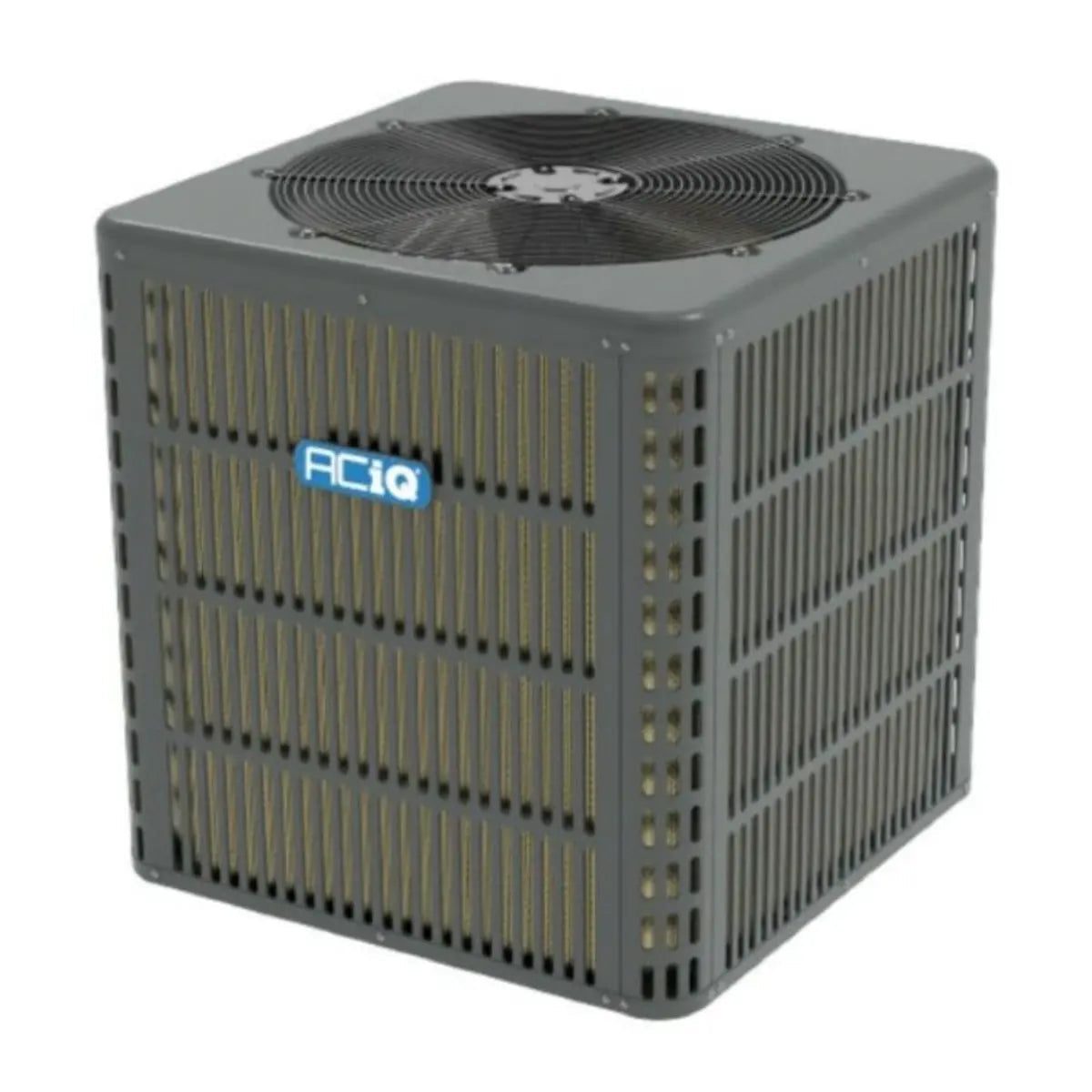

• Condenser SKU: AC-I-36AC14
• Condenser cooling capacity: 36,000 BTU
• Condenser tonnage: 3 Ton
• Condenser SEER2: 14.3
• Condenser EER2: 11.7
• Refrigerant: R32 (A2L)
• Refrigerant charge: 79.37 oz.
• Compressor type: Rotary
• Compressor stages: Single stage
• Sound level: 59 dBA
• Input Voltage: 208/230V 1 Phase 60 Hz
• Max breaker size: 30 Amps
• Min breaker size: 24 Amps
• Condenser liquid valve size: 3/8"
• Condenser suction valve size: 3/4"
• Condenser weight: 154 lbs
• Condenser dimensions (H x W x D): 25" x 29.13" x 29.13"

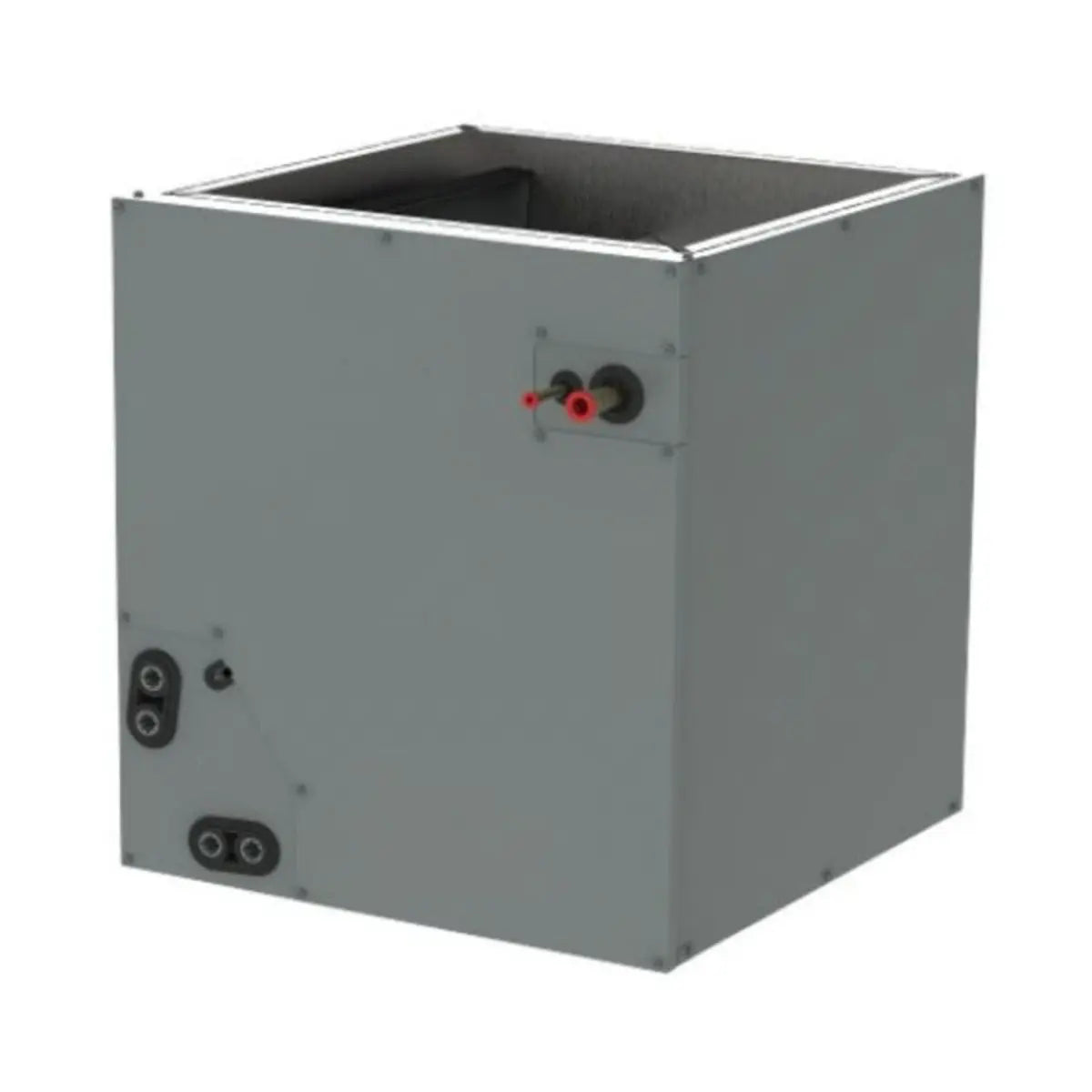

• Coil SKU: AC-I-3036ACL-17
• Coil tonnage range: 2.5 Ton to 3 Ton
• Coil style: Multi-positional cased A-coil
• Coil cabinet width: 17.5"
• Coil height: 23.58"
• Coil depth: 21.02"
• Coil weight: 60 lbs
• Coil liquid line size: 3/8"
• Coil suction line size: 3/4"
• Coil construction: All-aluminum
• Coil features: Factory-installed TXV; R32 leak mitigation control kit included
• Included items: Outdoor condenser and 17.5" multi-positional cased evaporator coil
