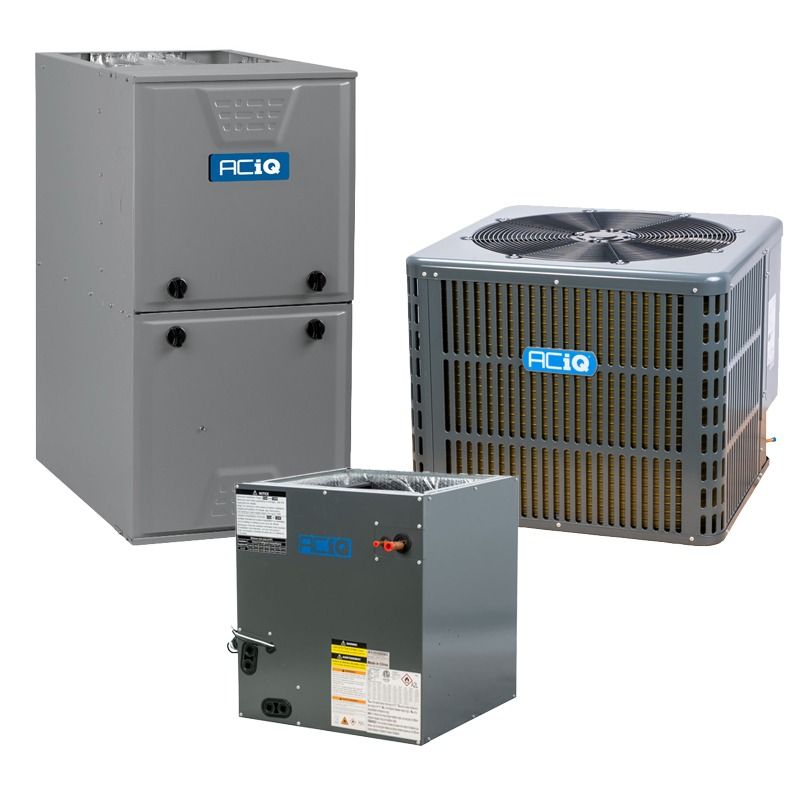

Aciq AC-I-36AC14 3 Ton 14.3 SEER2 Matched Furnace and AC System 80,000 BTU (21 in Coil) G96CTN0802120

Product Description

The ACiQ AC-I-36AC14 system pairs a 36,000 BTU (3 ton) 14.3 SEER2 R32 condenser (AC-I-36AC14 / AC-I-3036ACL-21) with an 80,000 BTU, 96% AFUE two-stage multi-positional gas furnace (G96CTN0802120). The condenser is pre-charged with R32 and operates on 208/230 V, 1 phase, 60 Hz while the furnace uses 120 V, 1 phase, 60 Hz. The matched package includes a cased A-coil with a 21 in cabinet for upflow, downflow, and horizontal installations.

• Condenser: 36,000 BTU (3 ton), 14.3 SEER2, 11.7 EER2, pre-charged R32, approx. 59 dBA
• Furnace: 80,000 BTU, 96% AFUE, two-stage operation, variable speed constant torque ECM blower, multi-positional
• Evaporator coil: cased A-coil, 21 in cabinet width; condenser requires pairing with R32 coil or air handler with leakage detection

Product Highlights

Matched 3 ton R32 condenser and 80,000 BTU two-stage furnace with multi-positional cased A-coil

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: AC-I-36AC14 / AC-I-3036ACL-21 / G96CTN0802120

Technical Specifications

• Brand: ACiQ
• Model Numbers: AC-I-36AC14 / AC-I-3036ACL-21 / G96CTN0802120
• System Type: Matched condenser, evaporator coil, and two-stage gas furnace system
• Condenser Cooling Capacity: 36,000 BTU (3 Ton)
• Condenser SEER2: 14.3
• Condenser EER2: 11.7
• Condenser Sound Level: 59 dBA (approximate)
• Condenser Refrigerant: R32 (A2L) - pre-charged
• Refrigerant Charge: 79.37 oz.
• Condenser Electrical (Voltage/Phase/Frequency): 208/230 V, 1 Phase, 60 Hz
• Condenser Breaker Size (Min): 24 Amps
• Condenser Breaker Size (Max): 30 Amps
• Evaporator Coil Model: AC-I-3036ACL-21
• Evaporator Coil Type: Cased A-coil
• Evaporator Coil Cabinet Width: 21 in
• Coil Compatibility Tonnage: 2.5 to 3 Ton
• Furnace Model: G96CTN0802120
• Furnace Heating Capacity (BTU): 80,000 BTU
• Furnace AFUE: 96%
• Furnace Configuration: Upflow/Downflow/Horizontal (multi-positional)
• Furnace Blower Motor: Variable speed, constant torque ECM
• Furnace Fuel Type: Natural Gas (convertible to Propane with kit)
• Furnace Electrical (Voltage/Phase/Frequency): 120 V, 1 Phase, 60 Hz
• Furnace Dimensions (H x W x D): 35 in x 21 in x 29-1/2 in
• Required Venting: Plastic / PVC flue vent piping
• AHRI Certificate Number (Furnace): 213148726
• Compatibility Requirement: Condenser must be paired with R32 evaporator coil or air handler equipped with leakage detection system
• Evaporator Coil SKU: AC-I-3036ACL-21
• Condenser SKU: AC-I-36AC14
• Furnace SKU: G96CTN0802120
