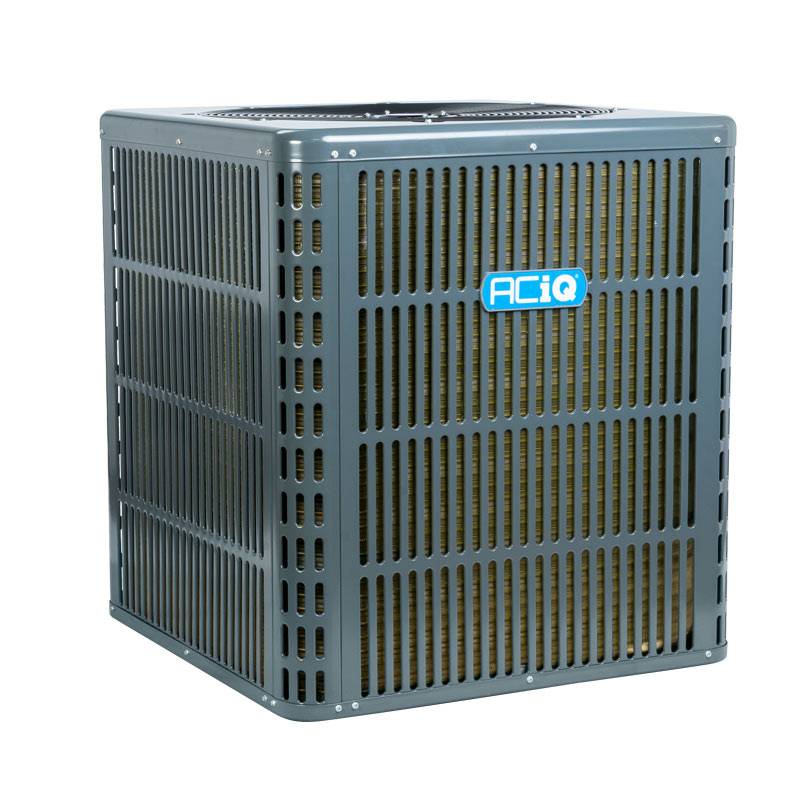

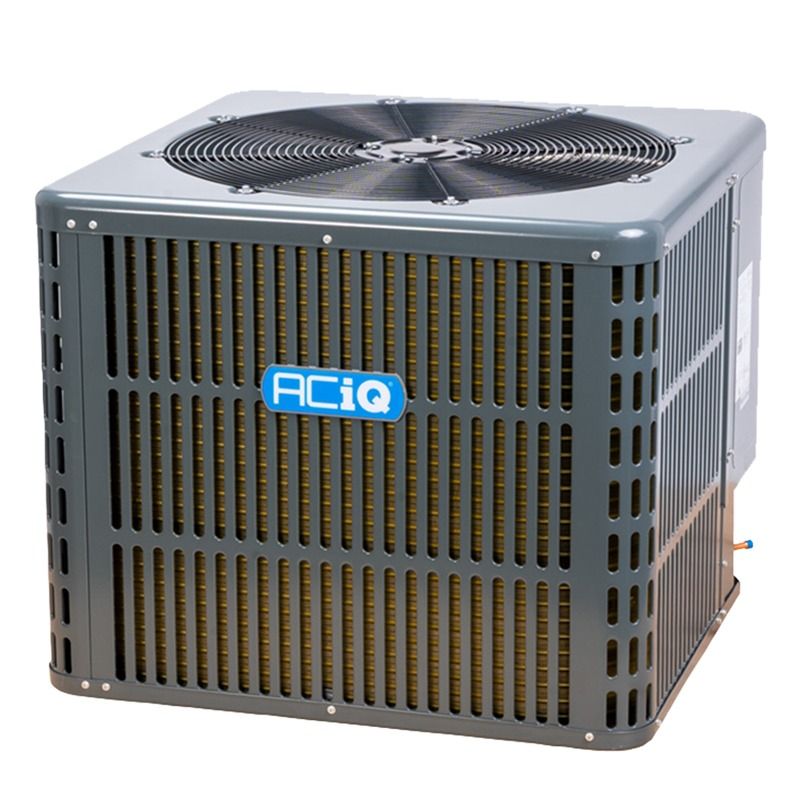

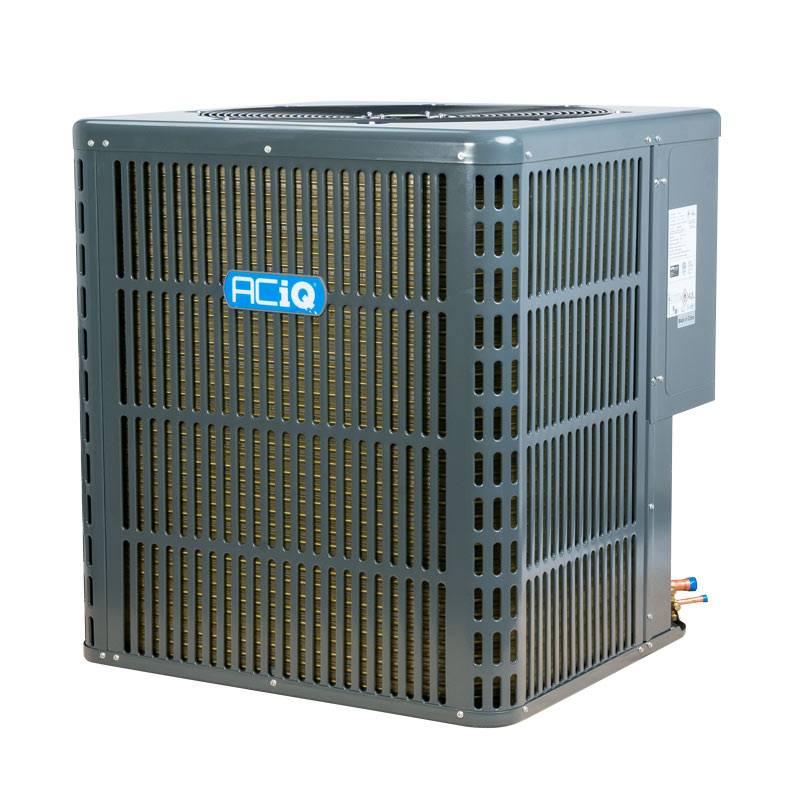

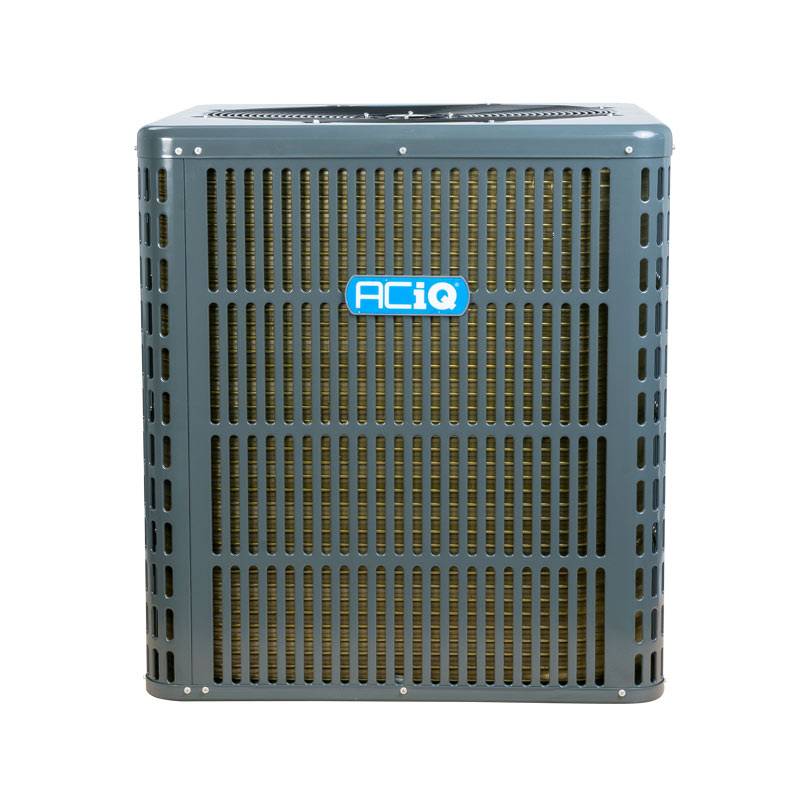

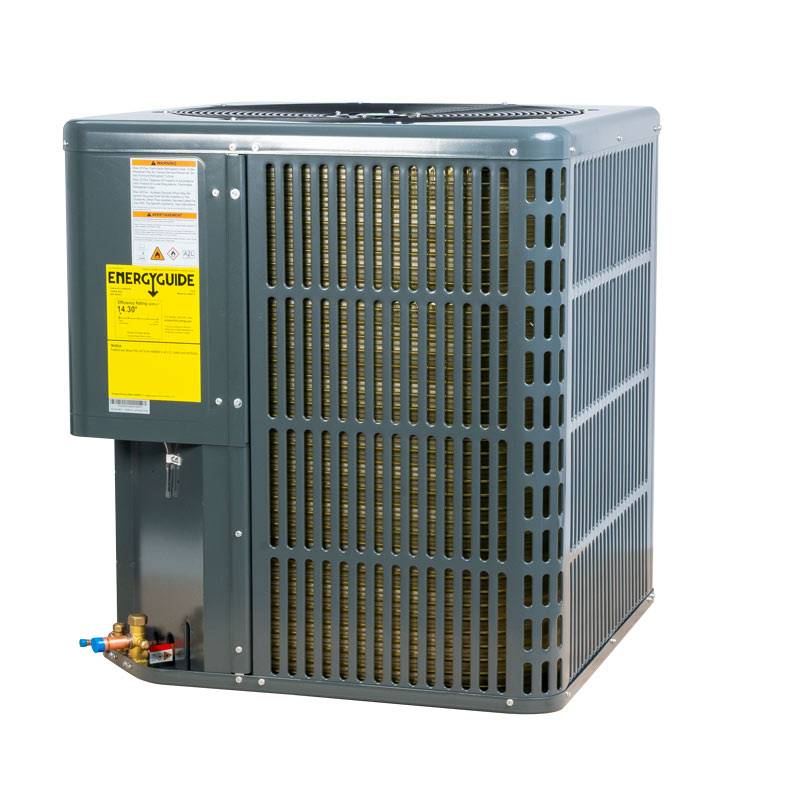

Aciq AC-I-36AC14 3 Ton 14.3 SEER2 Central Air Conditioner Condenser (35,000 BTU)

Product Description

AciQ AC-I-36AC14 is a 3 Ton central air conditioner condenser rated at 14.3 SEER2 and charged for R32 refrigerant. The cooling-only outdoor unit provides a nominal cooling capacity of 35,000 BTU with a rotary compressor and operates on 208-230 V, 1 phase, 60 Hz. The unit is corrosion-resistant, designed for quiet outdoor operation, and is TXV-controlled for improved humidity control; it requires pairing with an indoor coil or air handler.

• 14.3 SEER2 efficiency; nominal cooling capacity 35,000 BTU with rotary compressor
• Pre-charged for R32 refrigerant; TXV-controlled for improved humidity control
• 208-230 V, 1 Phase, 60 Hz electrical; corrosion-resistant cabinet and quiet outdoor operation

Product Highlights

3 Ton cooling-only outdoor condenser, 14.3 SEER2, R32 refrigerant, rotary compressor, 208-230 V single-phase

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: AC-I-36AC14

Technical Specifications

• Model: AC-I-36AC14
• Brand: AciQ
• Tonnage: 3 Ton
• Cooling Capacity: 35,000 BTU
• SEER2 (Efficiency): 14.3 SEER2
• Compressor Type: Rotary
• Condenser Stages: Single stage
• Refrigerant: R32
• Refrigerant Charge: 79.37 oz.
• Input Voltage: 208-230 V
• Phase: 1 Phase
• Frequency: 60 Hz
• Max Breaker Size: 30 Amps
• Min Breaker Size: 24 Amps
• Liquid Line Size: 3/8"
• Suction Line Size (Gas Line): 3/4"
• Sound Level: 58 dB(A)
• Dimensions (W x D x H): 29.13" x 29.13" x 25.00"
• Weight: 145 lbs
• Metering Device: TXV-controlled
• Operating Temperature Range: 5° to 131°F
• Product Type: Cooling-only outdoor condenser
• Installation Requirement: Requires pairing with compatible indoor coil or air handler
