Aciq AC-I-36AC14 3 Ton 14.3 SEER2 Air Conditioner with 21 inches Multi-Positional Cased Coil AC-I-3036ACL-21

Product Description

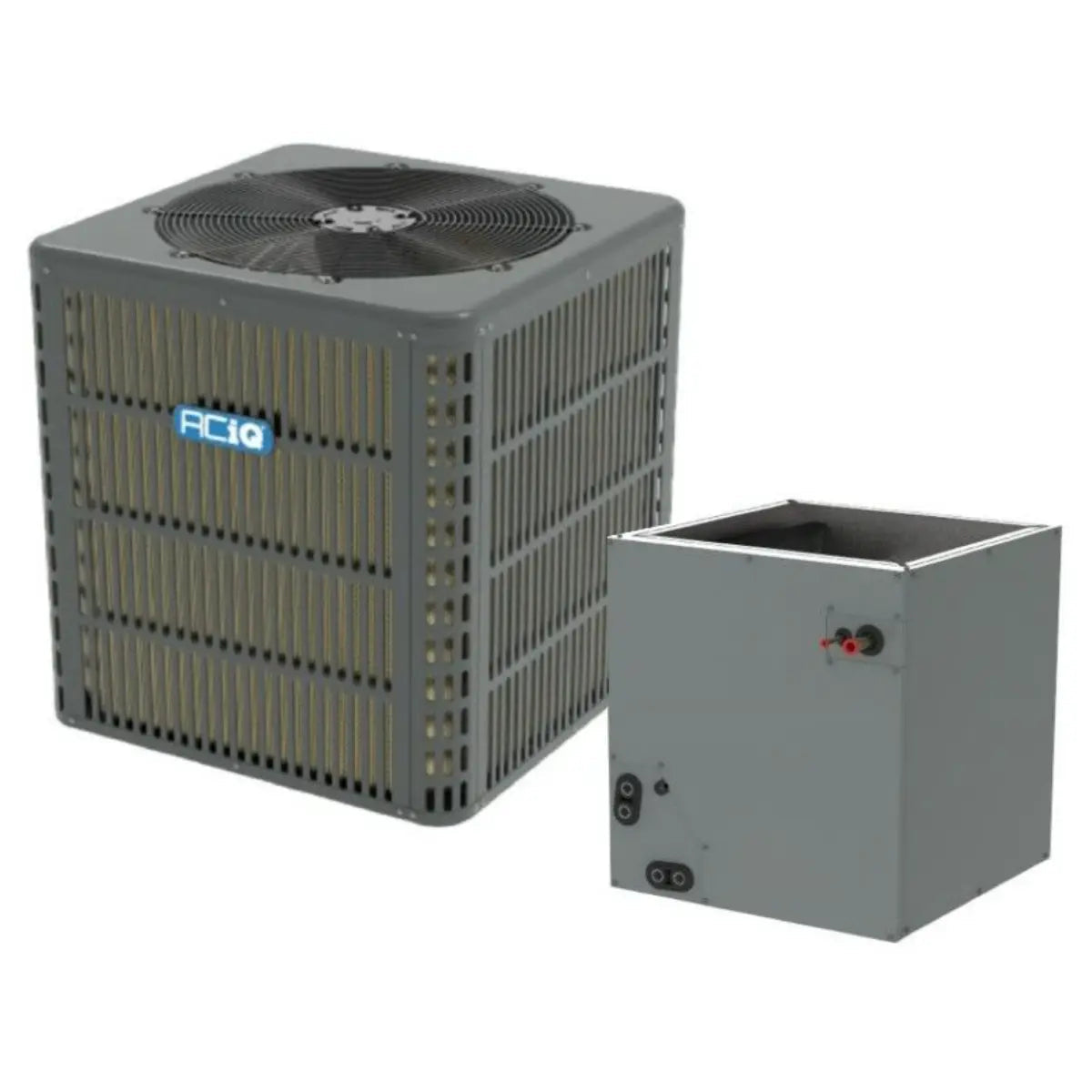

The AciQ AC-I-36AC14 / AC-I-3036ACL-21 is a matched 3 ton split cooling system pairing a 36,000 BTU, 14.3 SEER2 outdoor condenser pre-charged with R32 and a 21" multi-positional cased evaporator coil sized for 2.5–3 ton systems. The condenser uses a rotary compressor, single-stage operation, and requires 208/230V 1Ph 60Hz power; the coil includes a factory-installed TXV and an R32 refrigerant leak mitigation kit.

• 36,000 BTU (3 ton) condenser, 14.3 SEER2, pre-charged with R32 (79.37 oz refrigerant charge)

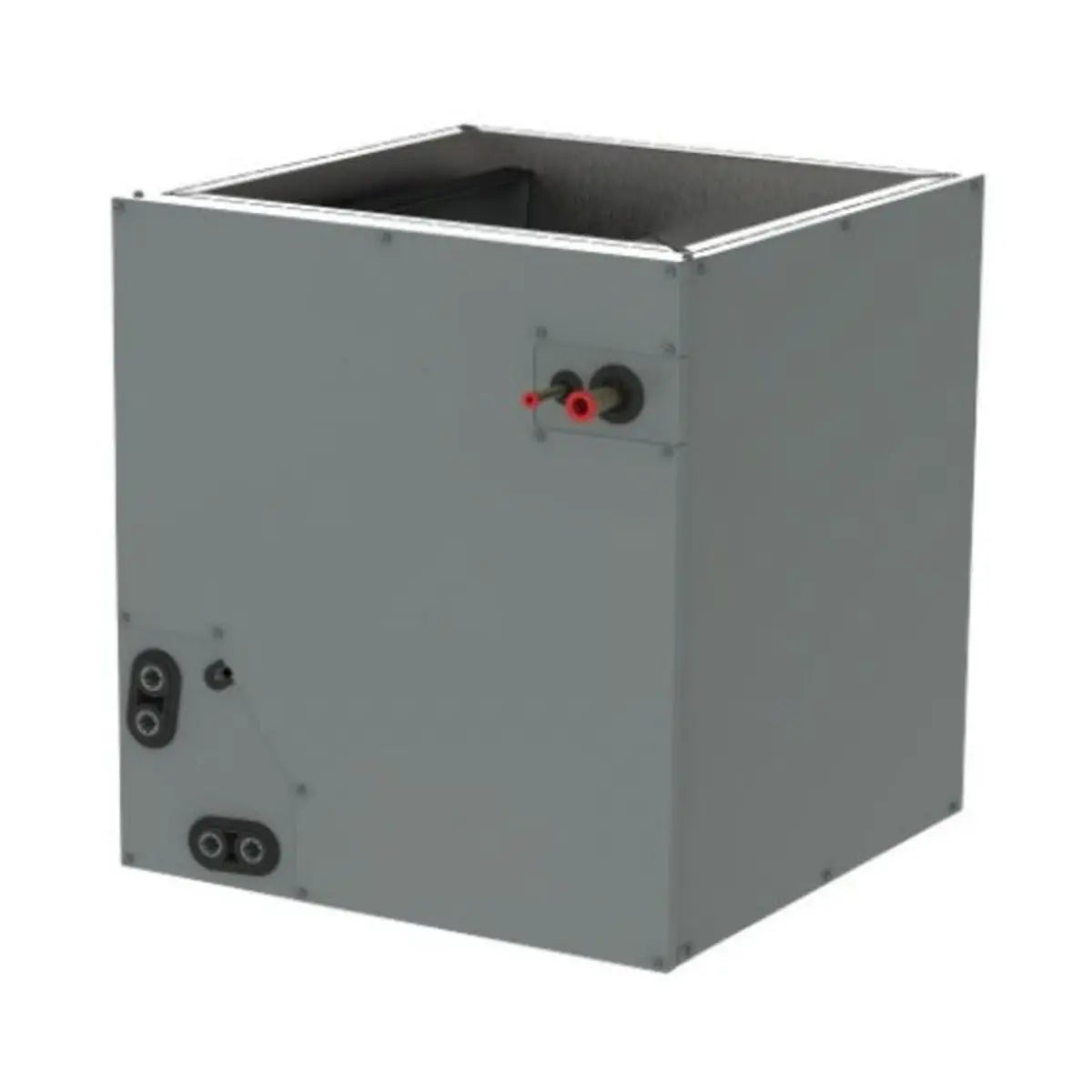

• 21" multi-positional cased evaporator coil (upflow, downflow, horizontal) with factory-installed TXV and all-aluminum construction

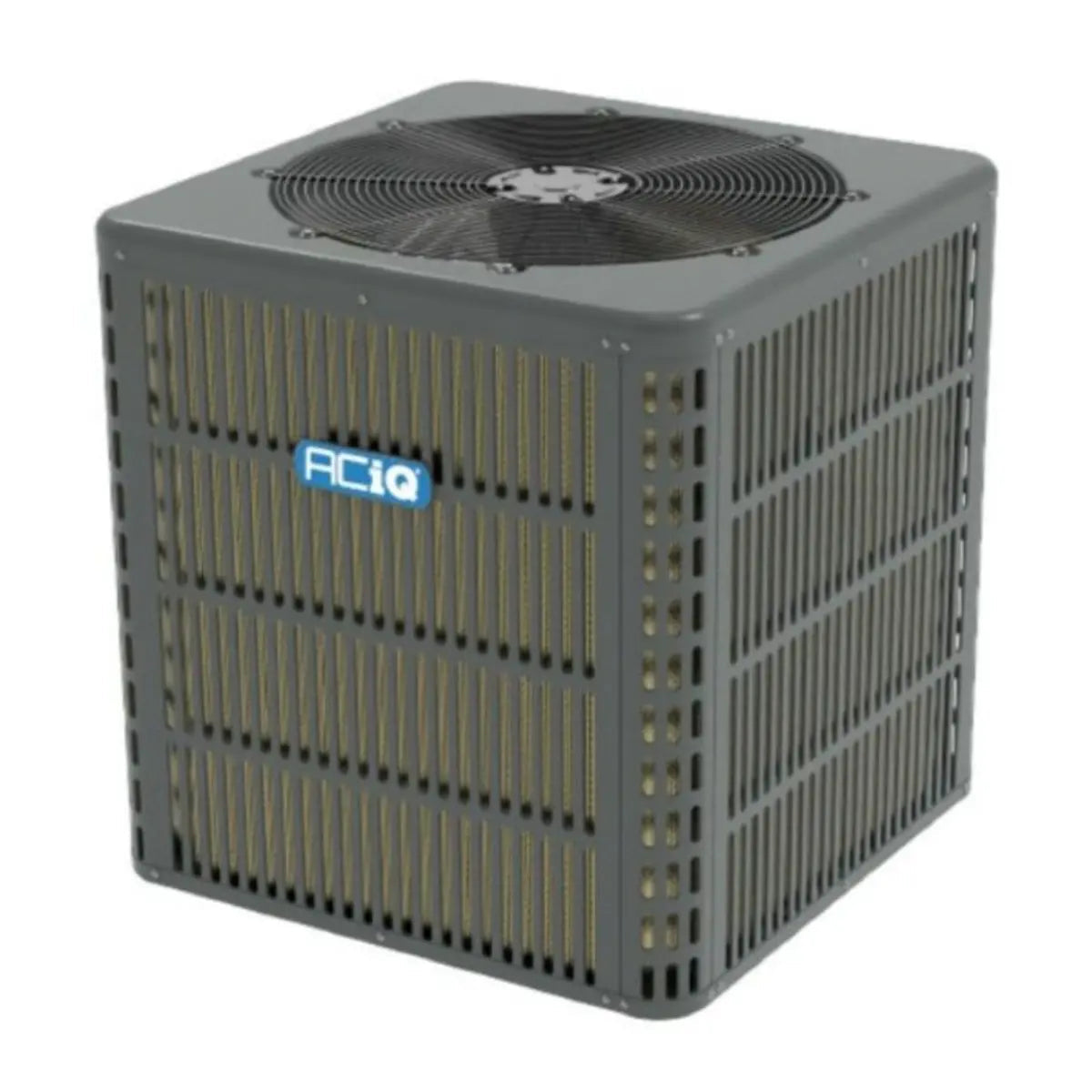

• Condenser: rotary compressor, single-stage, 59 dBA sound level, 208/230V 1Ph 60Hz, liquid line 3/8" and suction line 3/4"

Product Highlights

Matched condenser and 21" multi-positional coil for partial HVAC replacement; R32 refrigerant requires compatible indoor equipment and leak detection system; factory-included coil TXV and R32 leak mitigation kit.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: AC-I-36AC14 / AC-I-3036ACL-21

Technical Specifications

• Brand: AciQ
• Manufacturer Part Number: AC-I-36AC14 / AC-I-3036ACL-21
• Condenser SKU: AC-I-36AC14
• Coil SKU: AC-I-3036ACL-21
• Cooling Capacity: 36,000 BTU
• Tonnage: 3 Ton (condenser); 2.5 to 3 Ton (coil)
• SEER2: 14.3
• EER2: 11.7
• Refrigerant: R32 (A2L)
• Refrigerant Charge (Condenser): 79.37 oz.
• Compressor Type: Rotary
• Condenser Stages: Single stage
• Input Voltage: 208/230V 1 Phase 60 Hz
• Max Breaker Size: 30 Amps
• Min Breaker Size: 24 Amps
• Liquid Line Size: 3/8"
• Suction Line Size: 3/4"
• Condenser Sound Level: 59 dBA
• Condenser Dimensions (H x W x D): 25" x 29.13" x 29.13"
• Condenser Weight: 154.00 lbs
• Coil Dimensions (H x W x D): 23.58" x 21.02" x 21.02"
• Coil Weight: 73.00 lbs
• Coil Type: 21" multi-positional cased evaporator coil (A-coil)
• Coil Construction: All-aluminum
• Coil Features: Factory-installed TXV; R32 refrigerant leak mitigation kit included
• Application: Residential; designed for medium-sized homes (~1,600 to 1,900 sq. ft. depending on conditions)
• Notes on Compatibility: Condenser must be paired with compatible R32 evaporator coil or air handler and requires an R32 refrigerant leakage detection system when installed with R32 equipment
