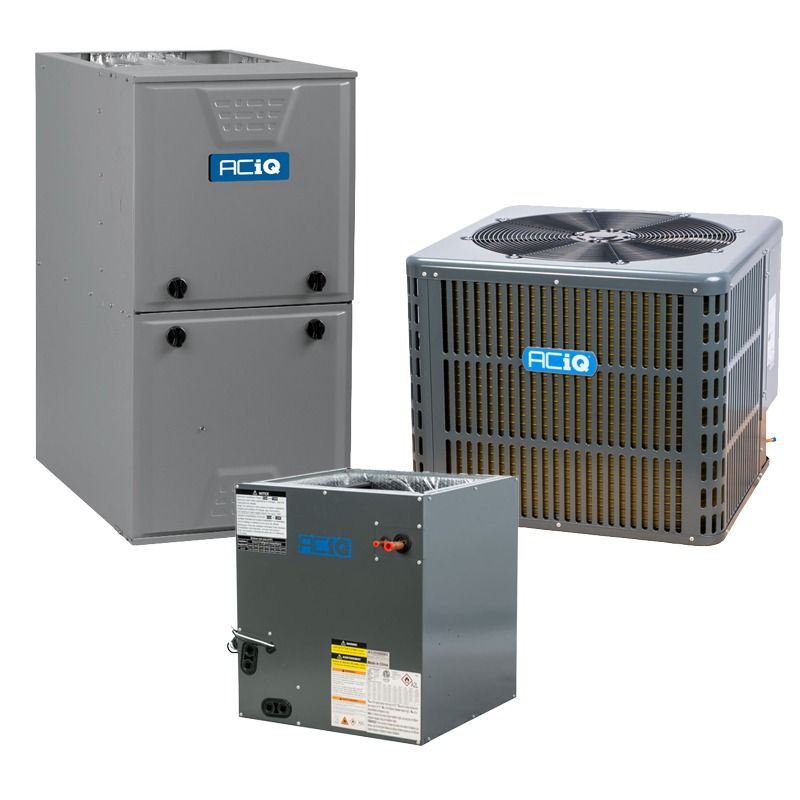

Aciq AC-I-36AC14 3 Ton 14.3 SEER2 96% AFUE Furnace and AC System (17.5 in Coil) AC-I-3036ACL-17 / G96VTN0601716

Product Description

Aciq AC-I-36AC14 / AC-I-3036ACL-17 / G96VTN0601716 is a matched residential HVAC system that pairs a 36,000 BTU (3 ton) 14.3 SEER2 R32 condenser with a 60,000 BTU 96% AFUE two-stage gas furnace and a 17.5 in multi-positional cased evaporator coil. The system includes a variable speed blower, two-stage burner, rotary compressor, and condenser pre-charged with R32 refrigerant for use with compatible indoor coils.

• Outdoor condenser: 36,000 BTU (3 ton), 14.3 SEER2, rotary compressor, R32 refrigerant pre-charge, ~59 dBA
• Furnace: 60,000 BTU, 96% AFUE, two-stage burner, variable speed ECM blower, multi-positional (upflow/downflow/horizontal)
• Evaporator coil: 17.5 in cased A-coil, 2.5-3 ton rating, factory TXV, liquid line 3/8 in, suction line 3/4 in, R32 compatible (leak mitigation kit)

Product Highlights

Matched 3-ton R32 condenser, 60,000 BTU 96% AFUE two-stage furnace, 17.5 in cased evaporator coil

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: AC-I-36AC14 / AC-I-3036ACL-17 / G96VTN0601716

Technical Specifications

• Brand: Aciq
• Model / MPN: AC-I-36AC14 / AC-I-3036ACL-17 / G96VTN0601716
• System type: AC and furnace system
• Refrigerant type: R32
• AC cooling capacity: 36,000 BTU (3 Ton)
• AC SEER2: 14.3
• AC EER2: 11.7
• AC condenser stages: Single stage
• Compressor type: Rotary
• Condenser decibel level: 59 dBA
• Condenser electrical: 208/230 V, 1 Phase, 60 Hz
• Condenser breaker min: 24 Amps
• Condenser breaker max: 30 Amps
• Condenser refrigerant charge: 79.37 oz
• Condenser dimensions (H x W x D): 25 in x 29.13 in x 29.13 in
• Condenser weight: 154.00 lbs
• Evaporator coil SKU: AC-I-3036ACL-17
• Coil tonnage rating: 2.5 - 3 Ton
• Coil cabinet width: 17.5 in
• Coil dimensions (H x W x D): 23.58 in x 17.5 in x 21.02 in
• Coil liquid line: 3/8 in
• Coil suction line: 3/4 in
• Coil weight: 60.00 lbs
• Coil style: Cased A-coil (factory TXV)
• Furnace SKU: G96VTN0601716
• Furnace heating BTU: 60,000 BTU
• Furnace AFUE: 96%
• Furnace blower motor: Variable speed (ECM)
• Furnace burner stages: Two stages
• Furnace fuel type: Natural Gas (field-convertible to Propane with optional LP kit)
• Furnace max CFM: 1475
• Furnace dimensions (H x W x D): 35 in x 17.5 in x 29.5 in
• Furnace weight: 139.00 lbs
• Configuration: Upflow, Downflow, Horizontal (multi-positional)
• AHRI certificate number (furnace): 213148548
• Exhaust flue requirement: Plastic / PVC
• Notes: Condenser is cooling-only and must be paired with compatible indoor coil or air handler; R32 (A2L) refrigerant requires leak mitigation/detection measures
