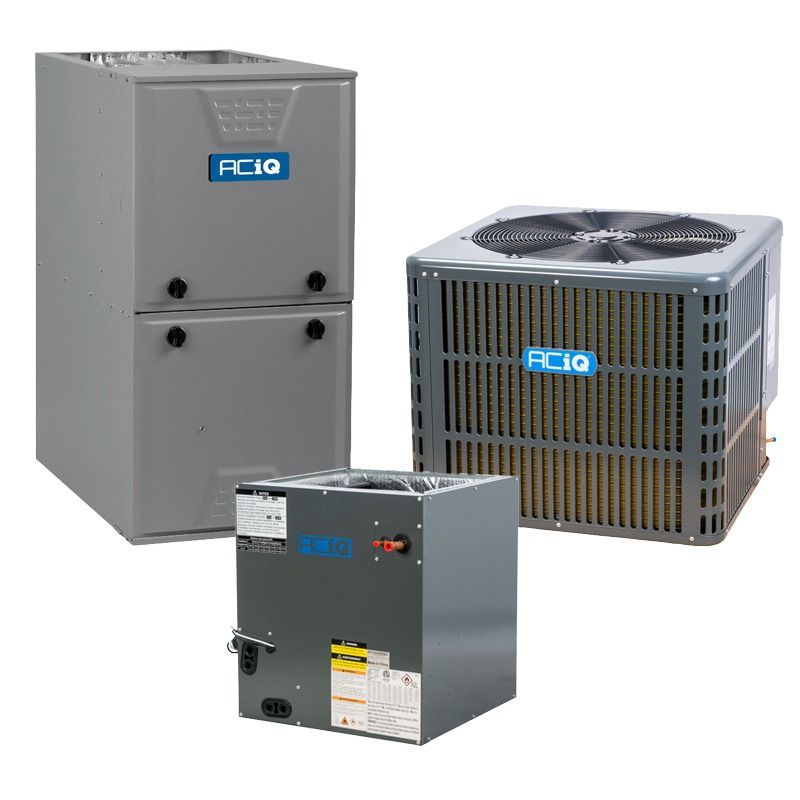

Aciq AC-I-36AC14 3 Ton 14.3 SEER2 96% AFUE 100,000 BTU Multi-Positional Split System (AC-I-3036ACL-21 / G96CTN1002122)

Product Description

The Aciq AC-I-36AC14 / AC-I-3036ACL-21 / G96CTN1002122 is a matched residential split system that includes a 14.3 SEER2 R32 condenser, a 100,000 BTU 96% AFUE two-stage gas furnace with variable-speed blower, and a multi-positional 2.5–3 ton cased evaporator coil. The condenser operates on 208/230 V single-phase power and is pre-charged with R32 refrigerant; the furnace requires 120 V power and supports upflow, downflow, and horizontal installations.

• 3 ton cooling capacity with 14.3 SEER2 and 11.7 EER2; condenser pre-charged with R32 (79.37 oz.)
• 100,000 BTU two-stage gas furnace with 96% AFUE, variable-speed ECM blower, convertible to propane
• Multi-positional cased A-coil (2.5–3 ton) with 3/8 in liquid and 3/4 in suction connections; system requires R32-compatible indoor equipment and leak mitigation

Product Highlights

Matched 3-ton split system: 14.3 SEER2 R32 condenser, 96% AFUE two-stage furnace, multi-positional cased coil.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: AC-I-36AC14 / AC-I-3036ACL-21 / G96CTN1002122
• Country of Origin: China

Technical Specifications

• Brand: Aciq
• Model / MPN: AC-I-36AC14 / AC-I-3036ACL-21 / G96CTN1002122
• Product ID: 225499
• System Type: Matched residential split system (condenser, furnace, cased evaporator coil)
• Cooling Capacity: 36,000 BTU (3 Ton)
• SEER2: 14.3
• EER2: 11.7
• Refrigerant: R32 (A2L)
• Refrigerant Charge: 79.37 oz.
• Condenser Compressor Type: Rotary
• Condenser Electrical: 208/230 V, 1 Phase, 60 Hz
• Condenser Max Breaker Size: 30 Amps
• Condenser Min Breaker Size: 24 Amps
• Condenser Decibel Level: 59 dBA
• Number of Compressors: 1
• Cooling Stage: Single stage
• Heating Capacity (Furnace): 100,000 BTU
• AFUE (Furnace): 96%
• Furnace Burner Stages: Two
• Furnace Blower Motor: Variable speed (ECM)
• Furnace Maximum CFM: 2160
• Furnace Fuel Type: Natural Gas (convertible to Propane)
• Furnace Electrical: 120 V, 1 Phase, 60 Hz
• Furnace Dimensions (H x W x D): 35.00 in x 21.00 in x 29.50 in
• Furnace Weight: 179 lb
• Exhaust Flue Requirement: Plastic / PVC
• Coil SKU / Model: AC-I-3036ACL-21
• Coil Tonnage: 2.5 to 3 Ton
• Coil Style: A-coil (cased), multi-positional
• Coil Liquid Line: 3/8 in
• Coil Suction Line: 3/4 in
• Coil Dimensions (H x W x D): 23.58 in x 21.02 in x 21.02 in
• Coil Weight: 73 lb
• System Configuration: Upflow / Downflow / Horizontal (multi-positional)
• Power Phase: 1 Phase
• Number of Fan Motors: 1
• Number of Heat Settings: Two stage
• AHRI Certificate Number (Furnace): 213148727
• Notes on Refrigerant: Contains R32 (A2L) — requires refrigerant leakage detection system and pairing with R32-compatible indoor equipment
• Country of Origin: China
