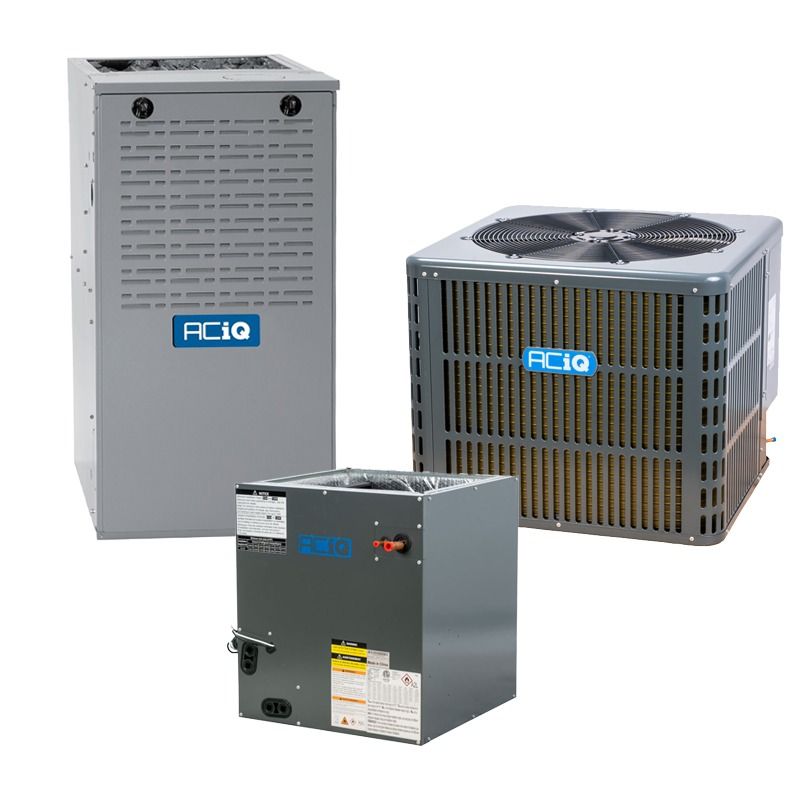

Aciq AC-I-36AC14 3 Ton 14.3 SEER2 88,000 BTU furnace & AC system (AC-I-3036ACL-17 / N80MSN0901714A)

Product Description

The AciQ AC-I-36AC14 / AC-I-3036ACL-17 / N80MSN0901714A is a matched central HVAC system that combines a 3 ton 14.3 SEER2 R32 condenser, a 17.5 inch cased evaporator coil with factory TXV, and an 88,000 BTU 80% AFUE single-stage multi-positional furnace. The condenser is pre-charged for R32 and rated about 36,000 BTU cooling; the furnace uses a multi-speed ECM blower and direct silicon nitride hot surface ignition.

• Condenser: 36,000 BTU (3 ton), 14.3 SEER2, R32 refrigerant (pre-charged, 79.37 oz), rotary compressor, approx. 59 dBA.
• Furnace: 88,000 BTU input, 80% AFUE (approx. 70,400 BTU output), multi-speed ECM blower, direct ignition, 115V electrical.
• Evaporator coil: 17.5 inch cased A-coil, compatible with R32, factory TXV, liquid 3/8 inch and suction 3/4 inch line sizes.

Product Highlights

Matched 3 ton R32 condenser, 17.5 inch cased R32-compatible coil, and 88k BTU multi-positional single-stage furnace with multi-speed ECM blower.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: AC-I-36AC14 / AC-I-3036ACL-17 / N80MSN0901714A

Technical Specifications

• Brand: ACiQ
• Manufacturer Part Number: AC-I-36AC14 / AC-I-3036ACL-17 / N80MSN0901714A
• System Components: 3 Ton condenser (AC-I-36AC14), 17.5 inch cased evaporator coil (AC-I-3036ACL-17), 88,000 BTU furnace (N80MSN0901714A)
• Condenser Cooling Capacity: 36,000 BTU (3 Ton)
• Condenser SEER2 Rating: 14.3
• Condenser EER2 Rating: 11.7
• Condenser Refrigerant Type: R32 (A2L)
• Condenser Refrigerant Charge: 79.37 oz.
• Condenser Compressor Type: Rotary
• Condenser Decibel Level: Approx. 59 dBA
• Condenser Electrical: 208/230V 1 Phase 60 Hz
• Condenser Breaker Size Max: 30 Amps
• Condenser Breaker Size Min: 24 Amps
• Condenser Liquid Valve Size: 3/8 inch
• Condenser Suction Valve Size: 3/4 inch
• Coil Type: Cased A-coil (multi-positional)
• Coil Cabinet Width: 17.5 inch
• Coil Refrigerant Compatibility: R32; includes leak mitigation control kit and factory TXV
• Coil Liquid Line Size: 3/8 inch
• Coil Suction Line Size: 3/4 inch
• Coil Dimensions (H x W x D): 23.58 inch x 17.5 inch x 21.02 inch
• Coil Weight: 60 lbs
• Furnace Heating Input: 88,000 BTU (input)
• Furnace Approximate Output: Approximately 70,400 BTU (at 80% AFUE)
• Furnace AFUE: 80%
• Furnace Burner Stages: Single stage
• Furnace Blower Motor: Multi-speed ECM
• Furnace Maximum CFM: 1210
• Furnace Electrical: 115V 1 Phase 60 Hz
• Furnace Maximum Breaker Size: 15 Amps
• Furnace Ignition Type: Direct ignition with silicon nitride hot surface ignitor
• Furnace Fuel Type: Natural gas (field-convertible to propane with optional LP kit)
• Furnace Configuration: Multi-positional: upflow, downflow, horizontal
• Furnace Gas Connection: 1/2 inch NPT
• Furnace Maximum Inlet Pressure: 13.6 inch wc
• Furnace Motor RPM: 1050 RPM
• Furnace Horsepower: 0.5 HP
• AHRI Certificate Number (Furnace): 213146139
• Equivalent Models: Carrier 58SB0A090E17--14; Tempstar TN80ESN0901714A; Bryant 810SA42090E17
• Required System Electrical: Condenser 208/230V 1 Phase 60 Hz; Furnace 115V 1 Phase 60 Hz
