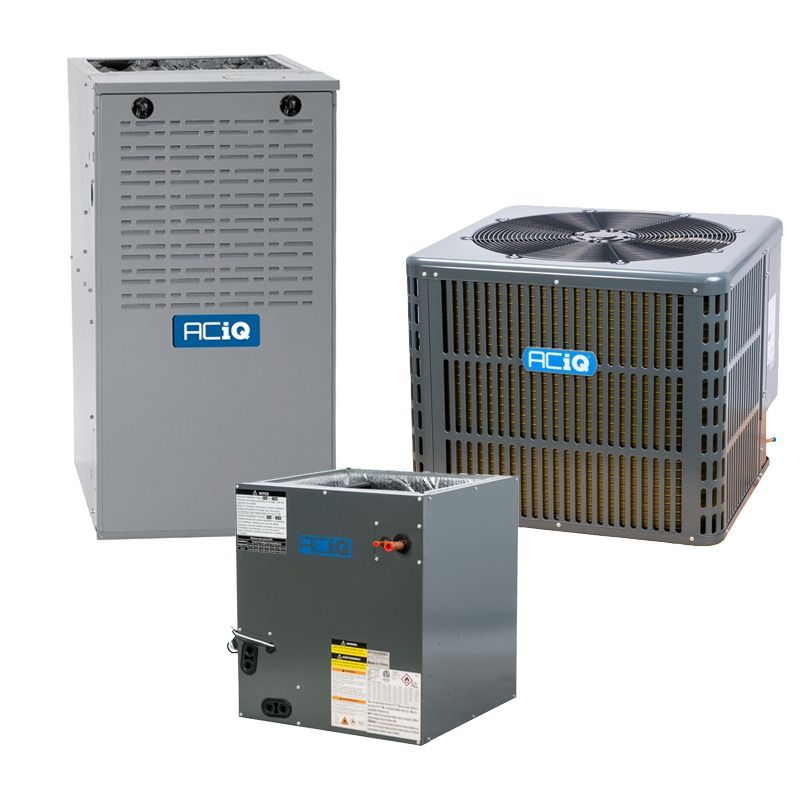

ACIQ Aciq AC-I-36AC14 3 Ton 14.3 SEER2 80% AFUE 80,000 BTU System (Multi-Positional) G80CTL0901716
ACIQ Aciq AC-I-36AC14 3 Ton 14.3 SEER2 80% AFUE 80,000 BTU System (Multi-Positional) G80CTL0901716

Aciq AC-I-36AC14 3 Ton 14.3 SEER2 80% AFUE 80,000 BTU System (Multi-Positional) G80CTL0901716

Brand: ACIQ
SKU: AC-I-36AC14 / AC-I-3036ACL-17 / G80CTL0901716
Availability: In Stock
{# fallback coming from a global/section setting #}

$3,851.84
$3,851.84
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

Aciq AC-I-36AC14 / AC-I-3036ACL-17 / G80CTL0901716 is a matched HVAC system that combines a 3 ton 14.3 SEER2 R32 outdoor condenser, an 80,000 BTU two-stage 80% AFUE multi-positional gas furnace, and a cased evaporator coil with factory TXV. The system is pre-charged for R32 and includes an R32 leak mitigation kit. It supports multi-positional installation and requires 208/230V condenser power and 115V furnace power.

  • Condenser: 36,000 BTU (3 ton), 14.3 SEER2, R32 refrigerant, rotary compressor, ~59 dBA, requires 208/230V 1 ph and 24–30 A breaker
  • Furnace: 88,000 BTU input / 71,000 BTU output, 80% AFUE, two-stage burner, communicating variable-speed ECM blower, silicon nitride hot surface ignitor, 115V 1 ph
  • Evaporator coil: cased 17.5" cabinet width, compatible with 2.5–3 ton systems, factory-installed TXV, 3/8" liquid line and 3/4" suction line

Product Highlights

Matched 3 ton R32 system with two-stage 80,000 BTU gas furnace, cased evaporator coil with TXV, R32 leak mitigation kit, and manufacturer-backed component warranties.

Product Information

Standard Information

  • Brand: ACIQ
  • Manufacturer Part Number: AC-I-36AC14 / AC-I-3036ACL-17 / G80CTL0901716
Technical Specifications
Brand
ACiQ
MPN / Model
AC-I-36AC14 / AC-I-3036ACL-17 / G80CTL0901716
Product ID
225461
System Type
Matched HVAC system (condenser + gas furnace + cased evaporator coil)
Condenser SKU
AC-I-36AC14
Condenser Cooling Capacity
36,000 BTU (3 Ton)
Condenser SEER2
14.3
Condenser EER2
11.7
Condenser Refrigerant
R32 (pre-charged)
Condenser Compressor Type
Rotary
Condenser Sound Level
59 dBA
Condenser Electrical
208/230V 1 Phase 60 Hz
Condenser Max Breaker
30 Amps
Condenser Min Breaker
24 Amps
Coil SKU
AC-I-3036ACL-17
Coil Tonnage Compatibility
2.5 to 3 Ton
Coil Cabinet Width
17.5"
Coil Refrigerant
R32
Coil Liquid Line
3/8"
Coil Suction Line
3/4"
Coil Height
23.58"
Coil Depth
21.02"
Furnace SKU
G80CTL0901716
Furnace Input BTU
88,000
Furnace Output BTU
71,000
Furnace AFUE
80%
Furnace Configuration
Upflow / Downflow / Horizontal (multi-positional)
Furnace Blower Motor
Communicating variable speed (ECM)
Furnace Maximum CFM
1595
Furnace Burner Stages
Two
Furnace Ignition Type
Direct ignition with silicon nitride hot surface ignitor
Furnace Fuel Type
Natural Gas (field-convertible to propane with optional LP kit)
Furnace Electrical
115V 1 Phase 60 Hz
Furnace Height
33 1/3"
Furnace Width
17.5"
Furnace Depth
29"
AHRI Certificate (Furnace)
213148663
Exhaust Flue Requirement (Furnace)
Metal
Required Electrical For Condenser
208/230V 1 Phase 60 Hz, 24–30 Amp breaker
Notes on Refrigerant
R32 is an A2L refrigerant; requires refrigerant leak detection system and pairing with compatible R32 indoor equipment
