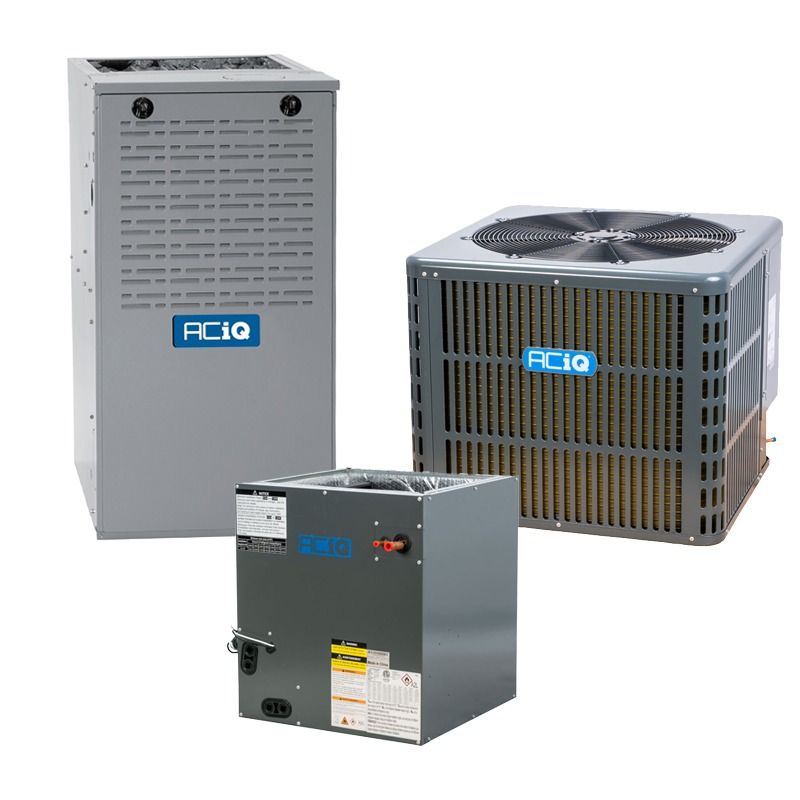

Aciq AC-I-36AC14 3 Ton 14.3 SEER2 80% AFUE 40,000 BTU System (Multi-Positional) Replaces N80ESN0451712A

Product Description

The ACiQ AC-I-36AC14 / AC-I-3036ACL-17 / N80MSN0451714A is a matched 3-ton split HVAC system pairing a 14.3 SEER2 R32 outdoor condenser with a 44,000 BTU 80% AFUE multi-positional gas furnace and a 2.5–3 ton multi-positional evaporator coil. The condenser is pre-charged with R32 and operates on 208/230V 1-phase power; the furnace uses a multi-speed ECM blower and silicon nitride hot surface ignition for single-stage heating.

• Matched system: 3 ton condenser (36,000 BTU), 44,000 BTU furnace, and multi-positional evaporator coil (2.5–3 ton).
• Condenser: 14.3 SEER2, R32 pre-charge (79.37 oz), rotary compressor, 208/230V 1 Ph 60 Hz, 30A max (24A min).
• Furnace: 44,000 BTU input (35,200 BTU output), 80% AFUE, 115V 1 Ph, multi-speed ECM blower, direct silicon nitride hot surface ignition; field-convertible to propane.

Product Highlights

Matched 3-ton R32 split system with multi-positional furnace and coil; condenser requires 208/230V 1-phase power.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: AC-I-36AC14 / AC-I-3036ACL-17 / N80MSN0451714A
• Country of Origin: China

Technical Specifications

• Brand: ACiQ
• Manufacturer Part Number: AC-I-36AC14 / AC-I-3036ACL-17 / N80MSN0451714A
• System Cooling Capacity: 3 Ton (36,000 BTU)
• SEER2: 14.3
• EER2: 11.7
• Refrigerant: R32 (pre-charged)
• Refrigerant Charge: 79.37 oz
• Condenser Model: AC-I-36AC14
• Condenser Compressor Type: Rotary
• Condenser Electrical (Input Voltage): 208/230V 1 Phase 60 Hz
• Condenser Max Breaker Size / Min Circuit Ampacity: 30 Amps (Maximum OCPD); Min Circuit Ampacity 24 Amps
• Condenser Decibel Level: 59 dBA (approx.)
• Condenser Dimensions (H x W x D): 25 in x 29.13 in x 29.13 in
• Evaporator Coil Model: AC-I-3036ACL-17
• Coil Tonnage: 2.5–3 Ton
• Coil Dimensions (W x H x D): 17.5 in x 23.58 in x 21.02 in
• Coil Liquid Line Size: 3/8 in
• Coil Suction Line Size: 3/4 in
• Coil Construction: All-aluminum
• Furnace Model: N80MSN0451714A
• Furnace Input BTU: 44,000
• Furnace Output BTU: 35,200
• AFUE: 80%
• Furnace Configuration: Upflow / Downflow / Horizontal (multi-positional)
• Furnace Blower Motor: Multi-Speed ECM
• Furnace Max CFM: 1215
• Furnace Electrical (Input Voltage): 115V 1 Phase 60 Hz
• Furnace Max Breaker Size: 15 Amps
• Furnace Burner Stages: Single
• Furnace Ignition Type: Direct ignition with silicon nitride hot surface ignitor
• Furnace Fuel Type: Natural Gas (field-convertible to Propane with optional LP kit)
• Furnace Dimensions (H x W x D): 33.33 in x 17.5 in x 29 in
• Furnace Exhaust Flue Requirement: Metal
• System Configuration: Matched split system, multi-positional installation
• Power Phase: 1 Phase
• Number of Compressors: 1
• Number of Fan Motors: 1
• Replaces: N80ESN0451712A (equivalent furnace SKU)
• Country of Origin: China
