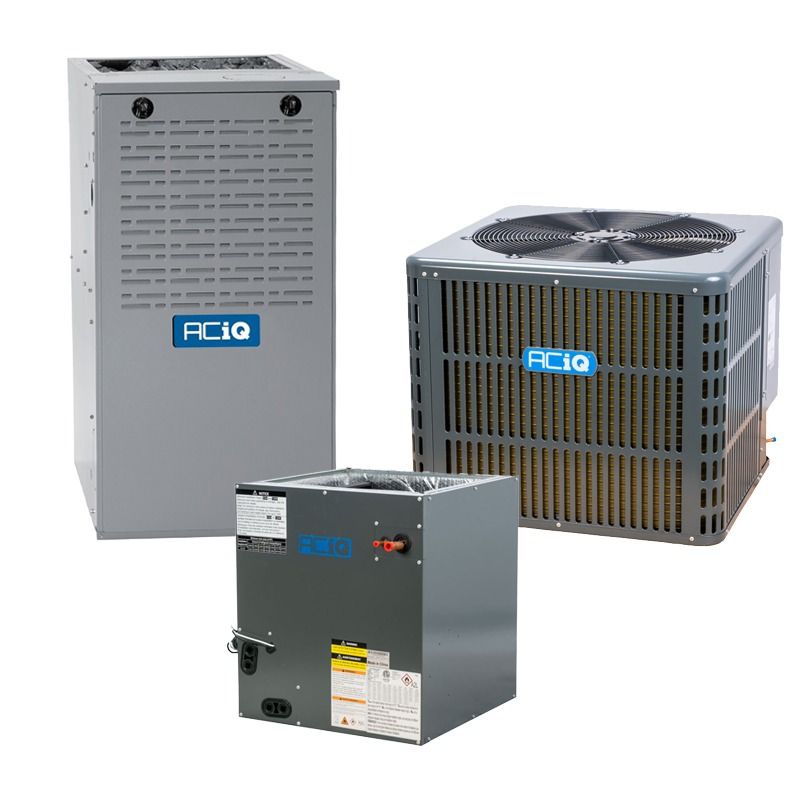

Aciq AC-I-36AC14 3 Ton 14.3 SEER2 80% AFUE (21 inches Width) N80ESN0702116A

Product Description

The Aciq AC-I-36AC14 / AC-I-3036ACL-21 / N80MSN0702116A is a matched 3-ton central split heating and cooling system that combines a 36,000 BTU R32 condenser (14.3 SEER2, 11.7 EER2) with a multi-positional furnace rated 80% AFUE (66,000 BTU input) and a cased 2.5–3 ton evaporator coil. The system is pre-charged with R32 refrigerant, supports upflow/downflow/horizontal installation, and specifies required electrical and flue connections.

• Condenser: 36,000 BTU, 14.3 SEER2, R32 refrigerant, rotary compressor, 208/230V 1Ph
• Furnace: 66,000 BTU input, 80% AFUE, multi 18-speed constant torque ECM blower, 115V 1Ph
• Coil: cased A-coil for 2.5–3 ton systems, 21 inch cabinet width, pre-charged with R32 and includes leak mitigation kit

Product Highlights

Matched 3-ton R32 split system with 14.3 SEER2 condenser and 80% AFUE multi-positional furnace

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: AC-I-36AC14 / AC-I-3036ACL-21 / N80MSN0702116A
• Country of Origin: China

Technical Specifications

• Brand: ACiQ
• Model / MPN: AC-I-36AC14 / AC-I-3036ACL-21 / N80MSN0702116A
• System models: AC-I-36AC14 / AC-I-3036ACL-21 / N80MSN0702116A
• Replaces: N80ESN0702116A
• System type: Matched central split heating and cooling system
• Condenser cooling capacity: 36,000 BTU
• Condenser tonnage: 3 Ton
• Condenser SEER2: 14.3
• Condenser EER2: 11.7
• Condenser refrigerant: R32
• Condenser refrigerant charge: 79.37 oz.
• Condenser compressor type: Rotary
• Condenser stages: Single Stage
• Condenser electrical: 208/230V 1 Phase 60 Hz
• Condenser max breaker size: 30 Amps
• Condenser min breaker size: 24 Amps
• Condenser decibel level: 59 dBA
• Condenser liquid valve size: 3/8"
• Condenser suction valve size: 3/4"
• Condenser dimensions (H x W x D): 25" x 29.13" x 29.13"
• Condenser weight (lbs): 154.00
• Furnace SKU / MPN: N80MSN0702116A
• Furnace heating BTU (input): 66,000
• Furnace efficiency / AFUE: 80%
• Furnace configuration: Multi-positional (Upflow / Downflow / Horizontal)
• Furnace blower motor: Multi 18-Speed Constant Torque ECM
• Furnace maximum CFM: 1545
• Furnace burner stages: Single
• Furnace ignition type: Direct Ignition with Silicon Nitride Hot Surface Ignitor
• Furnace fuel type: Natural Gas (field-convertible to propane with optional LP kit)
• Furnace electrical: 115V 1 Phase 60 Hz
• Furnace max breaker size: 15 Amps
• Furnace exhaust flue requirement: Metal
• Furnace dimensions (H x W x D): 33 1/4" x 21" x 29"
• Furnace weight (lbs): 142.00
• Coil SKU: AC-I-3036ACL-21
• Coil tonnage: 2.5 to 3 Ton
• Coil style: A-Coil (cased)
• Coil liquid line: 3/8"
• Coil suction line: 3/4"
• Coil dimensions (H x W x D): 23.58" x 21.02" x 21.02"
• Coil weight (lbs): 73.00
• Electrical requirements note: Condenser requires 208/230V 1Ph 60Hz; furnace requires 115V 1Ph 60Hz
• Safety / installation note: R32 (A2L) condenser requires refrigerant leak detection system and compatible R32 indoor unit
• AHRI / Certification: AHRI-rated system combinations where applicable
• Furnace AHRI Certificate Number: 213146137
• Country of Origin: China
• Number of compressors: 1
• Number of fan motors: 1
• Number of heat settings: Single Stage
• Power phase: 1 Phase
• System combined weight (derived): 369.00 lbs
