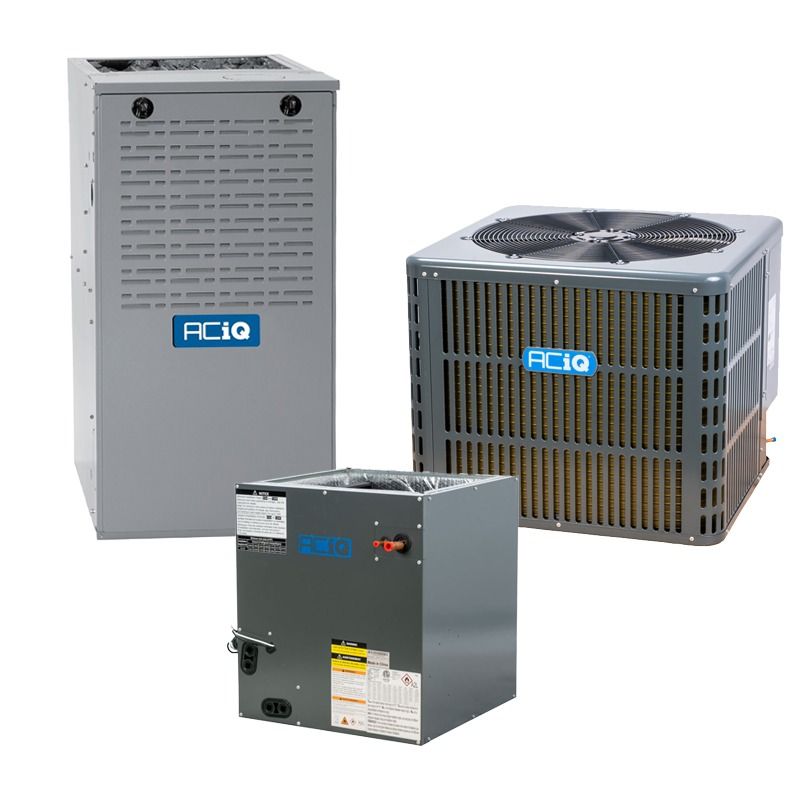

Aciq AC-I-36AC14 3 Ton 14.3 SEER2 80% AFUE 110,000 BTU Furnace & AC System (Multi-positional) N80MSN1102120A

Product Description

The ACiQ AC-I-36AC14 is a matched 3-ton split HVAC system that pairs a 14.3 SEER2 R32 outdoor condenser with an 80% AFUE multi-positional gas furnace (N80MSN1102120A) and a cased A-coil (AC-I-3036ACL-21). The system is configured for upflow, downflow, or horizontal installations and is pre-charged with R32 refrigerant. It requires 208/230V 1 phase power for the condenser and 115V for the furnace.

• Condenser: 14.3 SEER2, 11.7 EER, 36,000 BTU cooling, rotary single-stage compressor, R32 refrigerant, ~59 dBA
• Furnace: 110,000 BTU input, 80% AFUE, single-stage burner, multi 18-speed ECM blower, 115V electrical
• Cased evaporator coil AC-I-3036ACL-21: 2.5–3 ton, factory-installed TXV, all-aluminum construction

Product Highlights

Matched 3-ton R32 split system with multi-positional furnace, cased A-coil, and condenser pre-charged for R32.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: AC-I-36AC14 / AC-I-3036ACL-21 / N80MSN1102120A
• Country of Origin: China

Technical Specifications

• Brand: ACiQ
• Model / MPN: AC-I-36AC14 / AC-I-3036ACL-21 / N80MSN1102120A
• System Tonnage: 3 Ton (condenser)
• Condenser SEER2: 14.3
• Condenser EER2: 11.7
• Condenser Cooling Capacity: 36,000 BTU
• Condenser Refrigerant: R32 (pre-charged)
• Condenser Sound Level: 59 dBA (approx.)
• Input Voltage (Condenser): 208/230V 1 Phase 60 Hz
• Condenser Max Breaker Size: 30 Amps
• Condenser Compressor Type: Rotary (single stage)
• Condenser Liquid Line Size: 3/8"
• Condenser Suction Line Size: 3/4"
• Condenser Dimensions (H x W x D): 25" x 29.13" x 29.13"
• Furnace Input BTU: 110,000 BTU
• Furnace AFUE: 80%
• Furnace Output BTU (approx.): 88,000 BTU
• Furnace Configuration: Multi-positional (upflow / downflow / horizontal)
• Furnace Blower Motor: Multi 18-Speed Constant Torque ECM
• Furnace Maximum CFM: 2040
• Input Voltage (Furnace): 115V 1 Phase 60 Hz
• Furnace Max Breaker Size: 15 Amps
• Furnace Burner Stages: Single
• Furnace Ignition Type: Direct ignition with silicon nitride hot surface ignitor
• Furnace Fuel Type: Natural Gas (field-convertible to propane with optional LP kit)
• Furnace Dimensions (H x W x D): 33 1/4" x 21" x 29"
• Evaporator Coil Model: AC-I-3036ACL-21
• Coil Tonnage Range: 2.5 to 3 Ton
• Coil Type: Cased A-coil (installed TXV)
• Coil Refrigerant: R32
• Coil Liquid Line Size: 3/8"
• Coil Suction Line Size: 3/4"
• Coil Cabinet Width: 21"
• Coil Height: 23.58"
• Coil Depth: 21.02"
• Furnace AHRI Certificate Number: 213146143
• Exhaust Flue Requirement: Metal
• Coil AHRI / Certification: AHRI certified (when paired correctly)
• Included Accessories / Notes: R32 refrigerant leak mitigation kit included for coil; compatible indoor equipment required
• Power Phase: 1 Phase
• Number of Compressors: 1
• Number of Fan Motors: 1
• Number of Heat/Cool Stages: Single stage heating and cooling
• Country of Origin: China
