Aciq AC-I-36AC14 3 Ton 14.3 SEER2 80,000 BTU System (21 inch Coil) AC-I-3036ACL-21 / N80MSN0902116A

Product Description

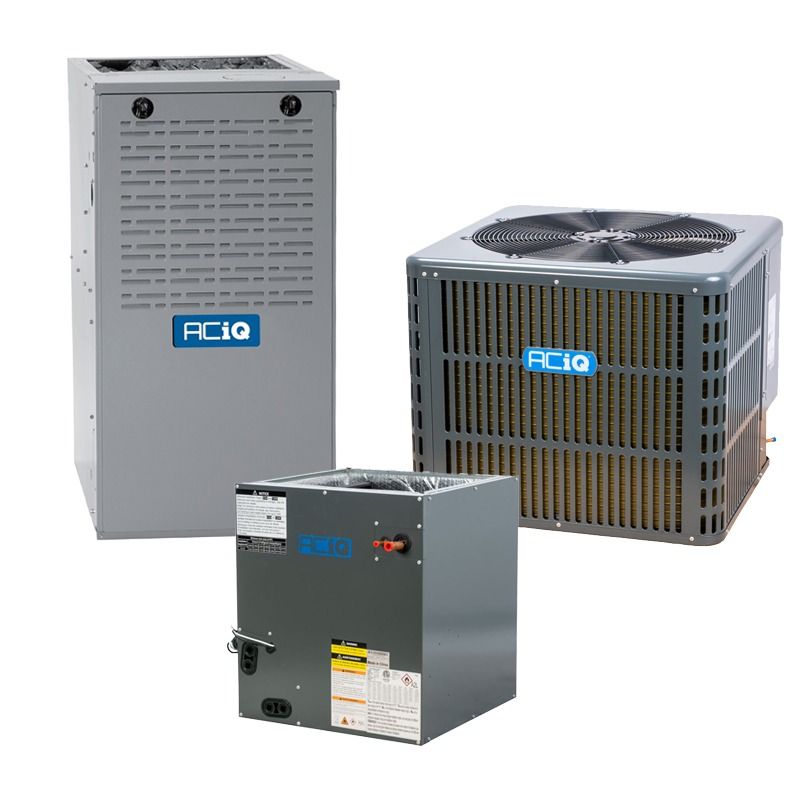

AciQ AC-I-36AC14 / AC-I-3036ACL-21 / N80MSN0902116A is a matched HVAC system including a 3-ton R32 outdoor condenser rated 14.3 SEER2, a 21 inch multi-positional cased evaporator coil, and an 88,000 BTU 80% AFUE multi-positional furnace. The condenser is pre-charged with R32 and features a rotary compressor and approx. 59 dBA operating noise. The furnace has an 18-speed constant torque blower and field-convertible fuel option.

• Outdoor condenser: 3 ton, 14.3 SEER2, R32 refrigerant, rotary compressor, approx. 59 dBA, 208/230 V 1 phase
• Evaporator coil: 21 inch cased A-coil, all-aluminum, factory-installed TXV, compatible with R32, AHRI certified
• Furnace: 88,000 BTU input (approx. 70,400 BTU output at 80% AFUE), multi-positional, 18-speed constant torque blower, direct ignition with silicon nitride hot surface ignitor

Product Highlights

Matched 3-ton R32 condenser, 21 inch multi-positional cased coil, and 88,000 BTU 80% AFUE multi-positional furnace with field-convertible fuel option.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: AC-I-36AC14 / AC-I-3036ACL-21 / N80MSN0902116A

Technical Specifications

• Brand: AciQ
• Model / MPN: AC-I-36AC14 / AC-I-3036ACL-21 / N80MSN0902116A
• System Tonnage: 3 Ton (outdoor condenser)
• Condenser SEER2: 14.3
• Condenser EER2: 11.7
• Condenser Cooling Capacity: 36,000 BTU
• Condenser Refrigerant: R32 (pre-charged)
• Condenser Noise Level: Approximately 59 dBA
• Compressor Type: Rotary
• Condenser Input Voltage: 208/230 V, 1 Phase, 60 Hz
• Condenser Minimum Breaker Size: 24 Amps
• Condenser Maximum Breaker Size: 30 Amps
• Condenser Liquid Line Size: 3/8 inch
• Condenser Suction Line Size: 3/4 inch
• Condenser Dimensions (H x W x D): 25 in x 29.13 in x 29.13 in
• Evaporator Coil SKU: AC-I-3036ACL-21
• Coil Compatibility: 2.5 to 3 Ton systems
• Coil Style: Cased A-coil, multi-positional
• Coil Cabinet Width: 21 inch
• Coil Refrigerant: R32 compatible
• Coil Liquid Line Size: 3/8 inch
• Coil Suction Line Size: 3/4 inch
• Coil Dimensions (H x W x D): 23.58 in x 21.02 in x 21.02 in
• Furnace SKU: N80MSN0902116A
• Furnace Input: 88,000 BTU
• Furnace Output (approx.): 70,400 BTU
• Furnace AFUE: 80%
• Furnace Configuration: Upflow / Downflow / Horizontal (multi-positional)
• Furnace Blower Motor: Multi 18-speed constant torque
• Furnace Maximum CFM: 1445
• Furnace Input Voltage: 115 V, 1 Phase, 60 Hz
• Furnace Maximum Breaker Size: 15 Amps
• Furnace Burner Stages: Single stage
• Furnace Ignition Type: Direct ignition with silicon nitride hot surface ignitor
• Furnace Fuel Type: Natural gas (field-convertible to propane with optional LP kit)
• Furnace Dimensions (H x W x D): 33 1/3 in x 21 in x 29 in
• Furnace Exhaust Flue Requirement: Metal flue venting required
• AHRI Certificate Number (furnace): 213146210
