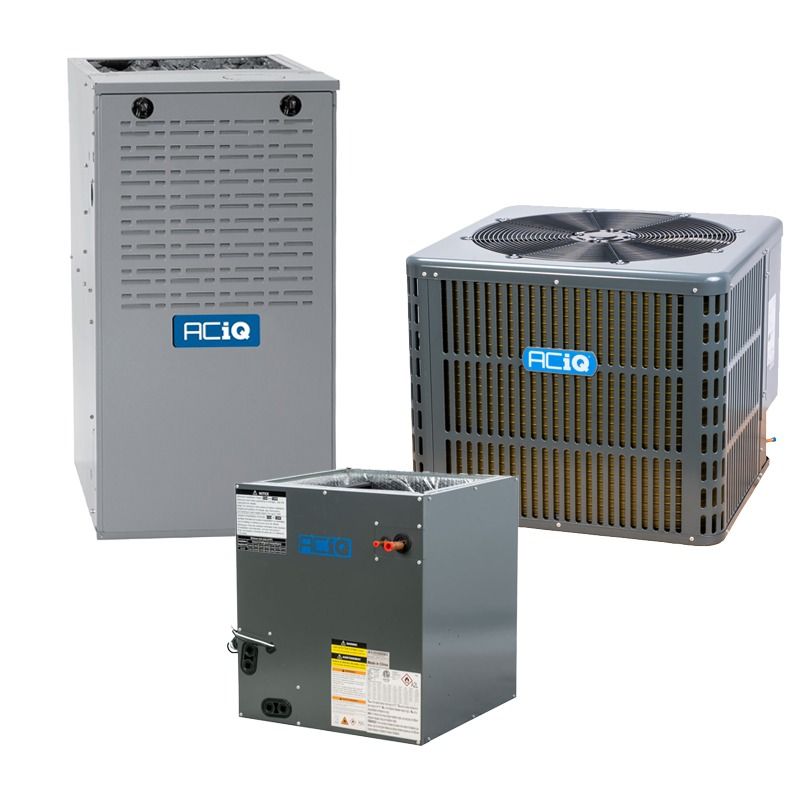

Aciq AC-I-30AC14 Matched Furnace & AC System 40,000 BTU (2.5 Ton Multi-positional) G80CTL0451712

Product Description

The ACiQ AC-I-30AC14 / AC-I-3036ACL-17 / G80CTL0451712 is a matched split system pairing a 2.5 ton (30,000 BTU) R32 condenser (14.3 SEER2) with a multi-positional 80% AFUE two-stage 40,000 BTU furnace and cased evaporator coil. The system is pre-charged with R32 refrigerant and includes a leak mitigation kit, supports upflow/downflow/horizontal installation, and is AHRI-rated for matched performance.

• Condenser: 2.5 ton (30,000 BTU), 14.3 SEER2, EER2 11.7, pre-charged R32 (75.84 oz), ~59 dBA, 208/230V 1 phase
• Furnace: Multi-positional two-stage 40,000 BTU (44,000 BTU input ~35,000 BTU output), 80% AFUE, variable-speed ECM blower, direct ignition with silicon nitride hot surface ignitor
• Evaporator coil: Cased 17.5 inch cabinet, compatible with R32, AHRI-rated matched performance; professional installation required

Product Highlights

Matched 2.5 ton split system, 14.3 SEER2 cooling, 80% AFUE two-stage heating, R32 refrigerant, multi-positional installation

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: AC-I-30AC14 / AC-I-3036ACL-17 / G80CTL0451712
• Country of Origin: China

Technical Specifications

• Brand: ACiQ
• Model / MPN: AC-I-30AC14 / AC-I-3036ACL-17 / G80CTL0451712
• System Type: Matched furnace + evaporator coil + condenser split system
• Condenser SKU: AC-I-30AC14
• Condenser Cooling Capacity: 30,000 BTU (2.5 Ton)
• SEER2: 14.3
• EER2: 11.7
• Condenser Refrigerant: R32 (pre-charged, 75.84 oz.)
• Condenser Decibel Level: 59 dBA
• Input Voltage (Condenser): 208/230V 1 Phase 60 Hz
• Condenser Breaker Requirements: Minimum 17 A, Maximum 25 A
• Furnace SKU: G80CTL0451712
• Furnace Heating BTU (input/output): 44,000 BTU input / ~35,000 BTU output
• Furnace Rated BTU: 40,000 BTU
• AFUE: 80%
• Furnace Configuration: Multi-positional (upflow / downflow / horizontal)
• Furnace Blower Motor: Variable speed ECM (communicating)
• Furnace Burner Stages: Two-stage
• Furnace Ignition Type: Direct ignition with silicon nitride hot surface ignitor
• Furnace Fuel Type: Natural gas (field-convertible to propane with LP kit)
• Furnace Exhaust Flue Requirement: Metal
• Evaporator Coil SKU: AC-I-3036ACL-17
• Evaporator Coil Tonnage: 2.5 to 3 Ton
• Evaporator Coil Cabinet Width: 17.5 inches (cased)
• Evaporator Coil Refrigerant: R32 (leak mitigation control kit included)
• AHRI Certificate Number: 213148658
• Compressor Type: Scroll
• Power Phase: 1 Phase
• Number of Compressors: 1
• Number of Cool Speeds: Single-stage cooling
• Number of Fan Motors: 1
• Number of Heat Settings: Two-stage heating
• Tonnage: 2.5 Ton
• BTU Heating Rating: 40,000 BTU
• Power Source: Electric (condenser) and natural gas (furnace)
• Furnace Input Voltage: 115V
• System Requirements: Compatible indoor equipment required for condenser (R32-compatible coil or air handler); professional installation and adherence to local/state codes
• Country of Origin: China
