Aciq AC-I-30AC14 / AC-I-3036ACL-21 / R92MSN1002120A 2.5 Ton 14.3 SEER2 92% AFUE 100,000 BTU Furnace and AC System (21 in Coil)

Product Description

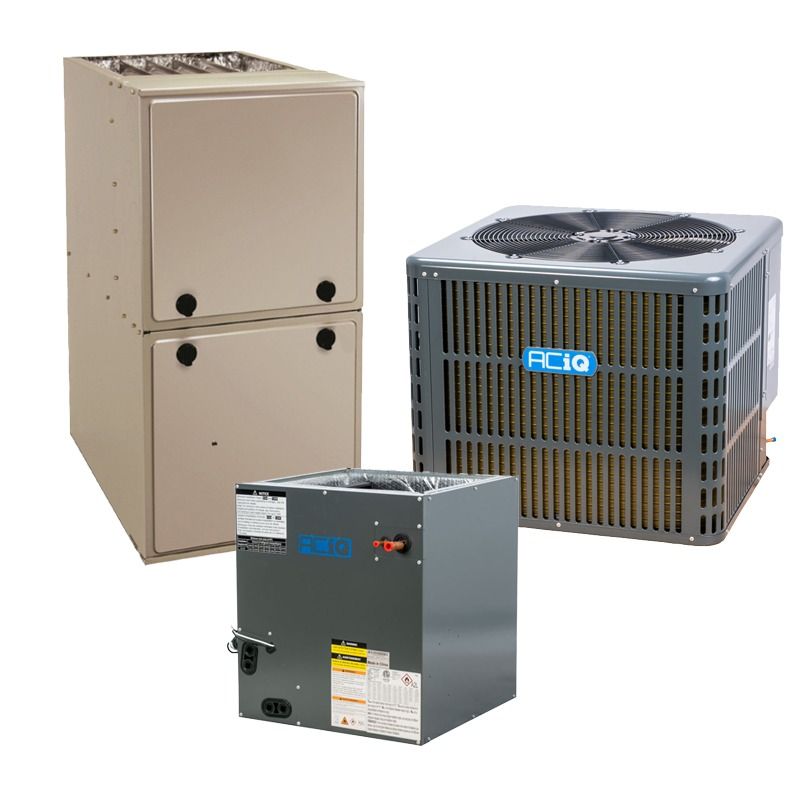

The ACiQ AC-I-30AC14 / AC-I-3036ACL-21 / R92MSN1002120A is a matched HVAC system combining a 2.5 ton (30,000 BTU) 14.3 SEER2 R32 condenser and a 100,000 BTU 92% AFUE multi-positional gas furnace with a 21 in cased evaporator coil. The system supports upflow, downflow, and horizontal installations, uses a multi-speed ECM blower, and is field-convertible to propane with an optional LP kit.

• Condenser: 30,000 BTU (2.5 Ton) 14.3 SEER2, pre-charged R32 refrigerant, rotary compressor, ~59 dBA, 208/230V 1 phase

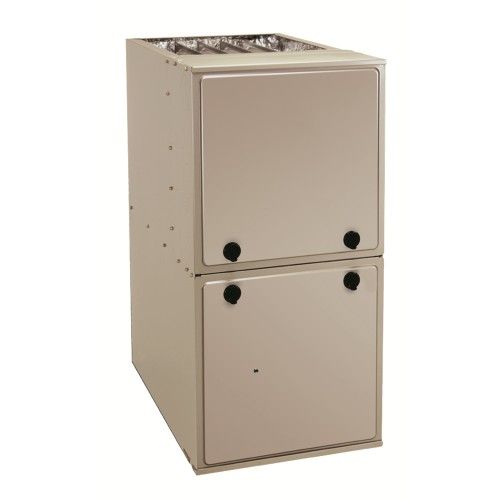

• Furnace: 100,000 BTU single-stage, 92% AFUE, multi-speed ECM blower, direct ignition with silicon nitride hot surface ignitor, 115V
• Evaporator coil: 21 in cased A-coil, factory-installed TXV, compatible with 2.5 to 3 ton R32 systems

Product Highlights

Matched 2.5 ton R32 condenser with 100,000 BTU 92% AFUE furnace and 21 in multi-positional cased coil; multi-speed ECM blower and factory TXV; warranties on compressor, coil, and furnace.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: AC-I-30AC14 / AC-I-3036ACL-21 / R92MSN1002120A

Technical Specifications

• Brand: ACiQ
• MPN: AC-I-30AC14 / AC-I-3036ACL-21 / R92MSN1002120A
• System Type: Matched air conditioner and gas furnace system
• Cooling Capacity: 30,000 BTU (2.5 Ton)
• SEER2: 14.3
• EER2: 11.7
• Refrigerant Type: R32 (pre-charged)
• Refrigerant Charge: 75.84 oz.
• Compressor Type: Rotary
• Condenser Decibel Level: 59 dBA
• Condenser Electrical: 208/230V 1 Phase 60 Hz
• Condenser Breaker Requirement: Min 17 Amps / Max 25 Amps
• Condenser Liquid Valve Size: 3/8 in
• Condenser Suction Valve Size: 3/4 in
• Coil Width: 21 in
• Coil Tonnage Compatibility: 2.5 to 3 Ton
• Coil Features: Cased A-coil with factory-installed TXV, all-aluminum construction, AHRI certified
• Furnace Heating BTU: 100,000 BTU
• Furnace Efficiency (AFUE): 92%
• Furnace Burner Stages: Single stage
• Furnace Blower Motor: Multi-speed ECM
• Furnace Maximum CFM: 2000
• Furnace Ignition Type: Direct ignition with silicon nitride hot surface ignitor
• Furnace Fuel Type: Natural gas (field-convertible to propane with optional LP kit)
• Furnace Electrical: 115V 1 Phase 60 Hz
• Furnace Connection: 1/2 in NPT
• Furnace Maximum Inlet Pressure: 13.6 in wc
• Furnace Configuration: Multi-positional (upflow/downflow/horizontal)
• Exhaust Flue Requirement: Plastic / PVC
• Condenser Dimensions (H x W x D): 25 in x 29.13 in x 29.13 in
• Coil Dimensions (H x W x D): 23.58 in x 21.02 in x 21.02 in
• Furnace Dimensions (H x W x D): 35 in x 21 in x 29.5 in
• Safety / Compliance Notes: Not Ultra Low NOx compliant; may be subject to mitigation fee for California; Proposition 65 warning
