Aciq AC-I-30AC14 / AC-I-3036ACL-21 / N96MSN1002120A 2.5 Ton 14.3 SEER2 96% AFUE 100,000 BTU Furnace and AC system (Multi-positional) Replaces N95ESN1002120A

Product Description

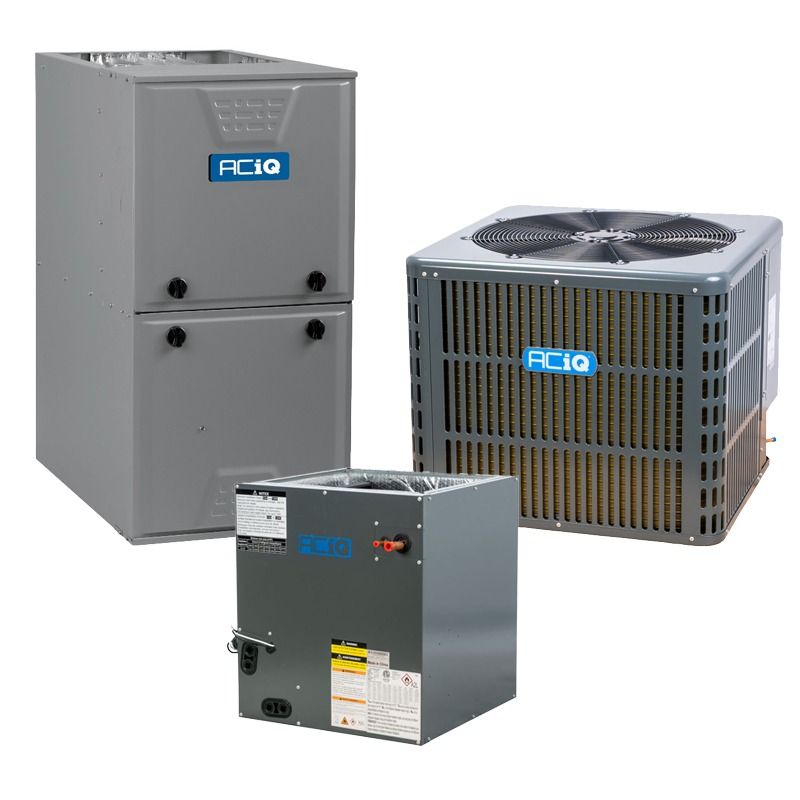

ACiQ AC-I-30AC14 / AC-I-3036ACL-21 / N96MSN1002120A is a matched HVAC system combining a 2.5 ton 14.3 SEER2 R32 condenser, a 2.5–3.0 ton cased evaporator coil, and a 100,000 BTU 96% AFUE single-stage multi-positional gas furnace. The condenser is pre-charged with R32 and rated near 59 dBA on 208/230V 1-phase power. The furnace includes an ECM blower with up to 2125 maximum CFM and is field-convertible to propane.

• Matched system: 2.5 ton 14.3 SEER2 R32 condenser, 2.5–3.0 ton cased A-coil with factory TXV, and 100,000 BTU 96% AFUE furnace
• Furnace features: multi-positional installation (upflow, downflow, horizontal), ECM blower, single-stage burner, 2125 maximum CFM, field-convertible to propane
• Condenser and coil: rotary compressor, pre-charged R32 refrigerant, condenser ~59 dBA, 208/230V 1 phase 60 Hz electrical, compatible with R32 (A2L) leak detection requirements

Product Highlights

Matched 2.5 ton SEER2 condenser, cased all-aluminum evaporator coil with TXV, and 100,000 BTU 96% AFUE multi-positional furnace; R32 refrigerant.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: AC-I-30AC14 / AC-I-3036ACL-21 / N96MSN1002120A

Technical Specifications

• Brand: ACiQ
• Manufacturer Part Number: AC-I-30AC14 / AC-I-3036ACL-21 / N96MSN1002120A
• Replacement MPN: N95ESN1002120A
• System type: Matched furnace and air conditioner system

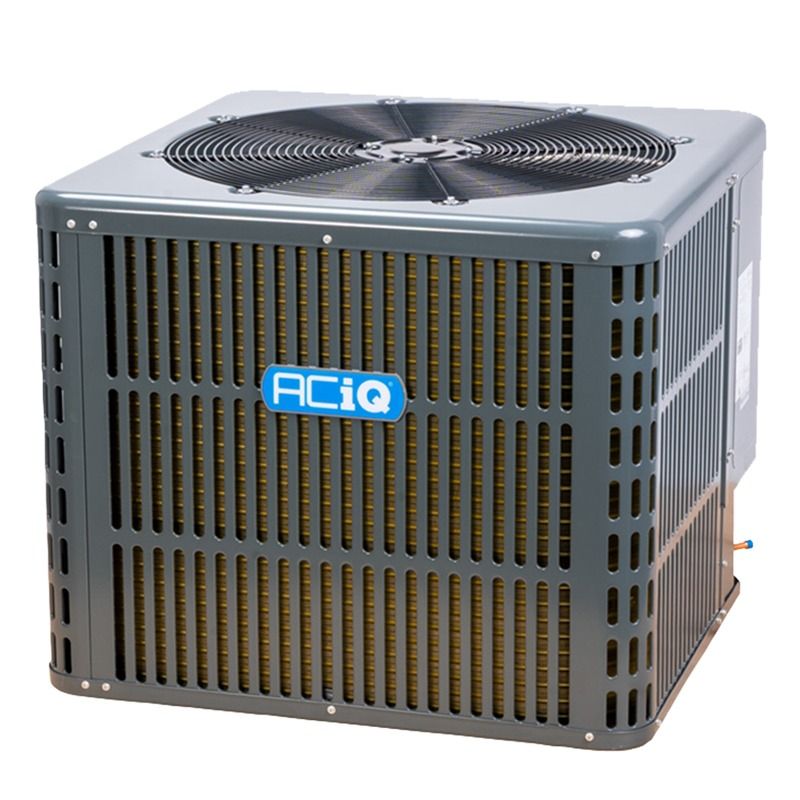

• Cooling capacity: 30,000 BTU (2.5 Ton)
• Condenser SEER2: 14.3
• Condenser EER2: 11.7
• Condenser refrigerant: R32 (pre-charged)
• Condenser refrigerant charge: 75.84 oz.
• Condenser compressor type: Rotary
• Condenser sound level: 59 dBA
• Condenser electrical: 208/230V 1 Phase 60 Hz
• Condenser minimum breaker size: 17 Amps
• Condenser maximum breaker size: 25 Amps
• Condenser liquid valve size: 3/8"
• Condenser suction valve size: 3/4"

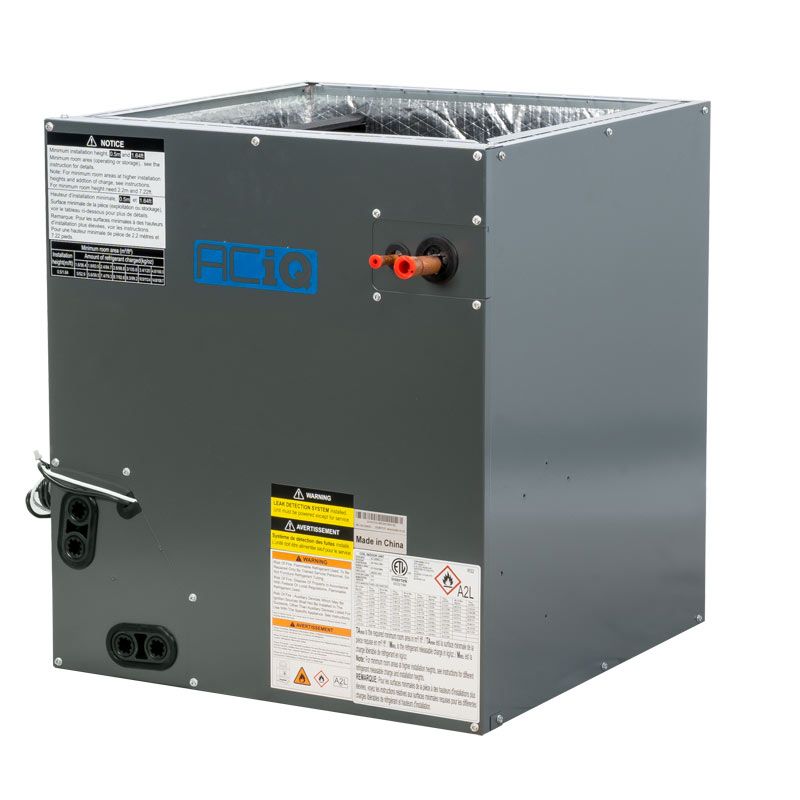

• Coil SKU: AC-I-3036ACL-21
• Coil type: Cased A-coil, all-aluminum
• Coil tonnage range: 2.5 to 3.0 Ton
• Coil cabinet width: 21.02"
• Coil factory TXV: Yes
• Coil AHRI certified: Yes

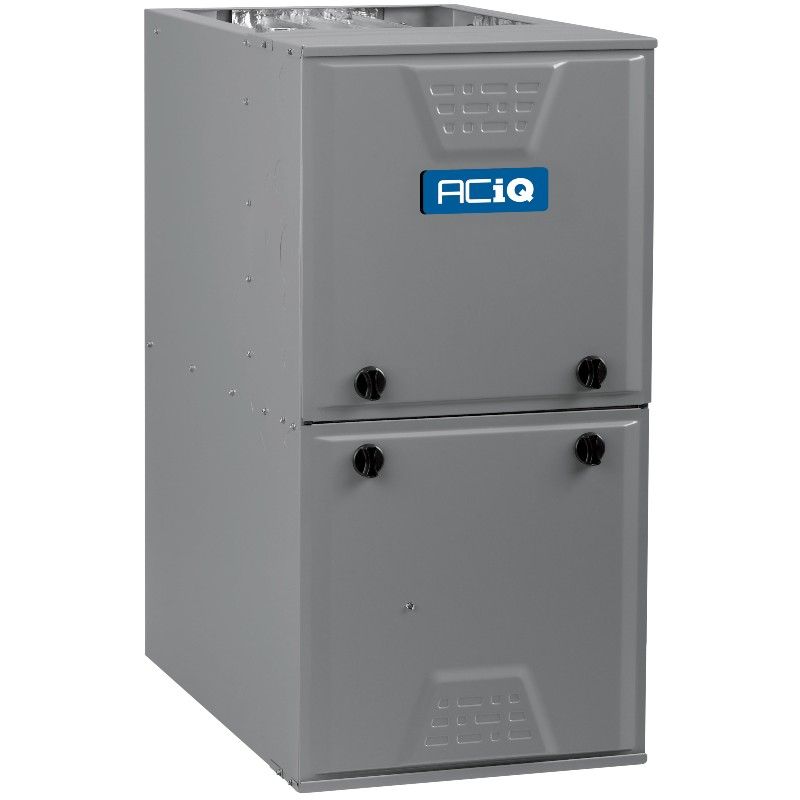

• Furnace SKU: N96MSN1002120A
• Furnace heating input: 100,000 BTU
• Furnace AFUE: 96%
• Furnace blower motor: ECM
• Furnace maximum CFM: 2125
• Furnace burner stages: Single stage
• Furnace fuel type: Natural Gas (field-convertible to Propane)
• Furnace configuration: Upflow/Downflow/Horizontal (multi-positional)
• Furnace dimensions (HxWxD): 35" x 21" x 29.5"
• Furnace weight: 164 lbs
• Condenser dimensions (HxWxD): 25" x 29.13" x 29.13"
• Condenser weight: 148 lbs
• Coil dimensions (HxWxD): 23.58" x 21.02" x 21.02"
• Coil weight: 73 lbs
• Energy Star certified (furnace): Yes
• AHRI certificate number (furnace): 213148762
• Compatible refrigerant note: R32 (A2L) requires leak detection system on indoor equipment
