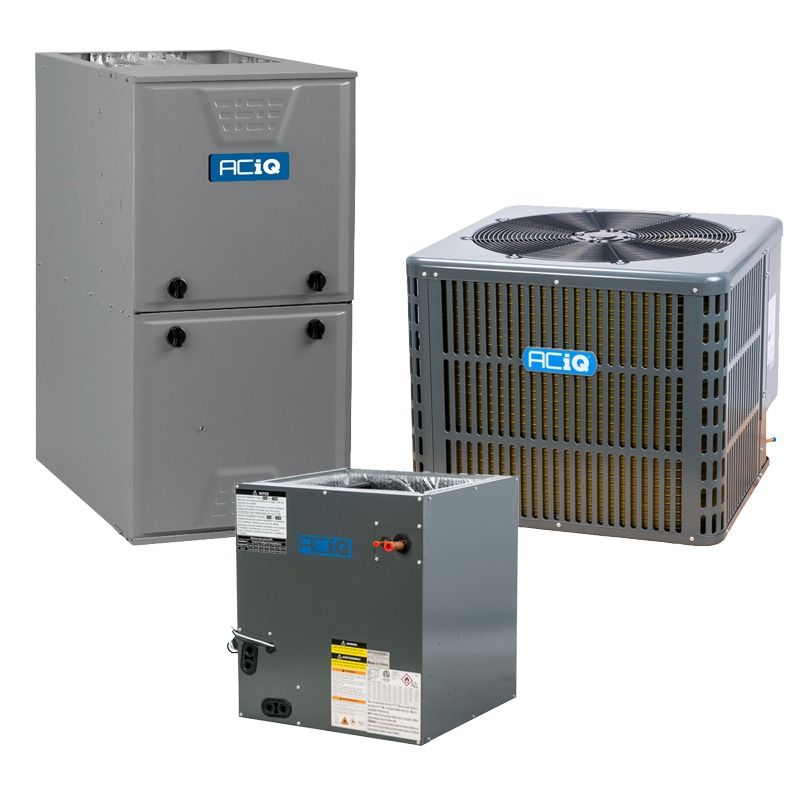

Aciq AC-I-30AC14 / AC-I-3036ACL-21 / G96VTN0802120 2.5 Ton 14.3 SEER2 96% AFUE 80,000 BTU Furnace & AC System (Multi-positional)

Product Description

AciQ AC-I-30AC14 / AC-I-3036ACL-21 / G96VTN0802120 is a matched 2.5 ton split HVAC system combining a 14.3 SEER2 condenser, a cased 21" multi-positional evaporator coil, and an 80,000 BTU input, 96% AFUE variable-speed two-stage gas furnace. The outdoor unit is pre-charged with R32 refrigerant and the system supports upflow, downflow, or horizontal installation with 208/230V condenser and 120V furnace electrical requirements.

• Condenser: 2.5 ton (30,000 BTU) cooling, 14.3 SEER2, 11.7 EER, rotary compressor, 208/230V 1 phase, pre-charged with R32 (75.84 oz.)
• Furnace: 80,000 BTU input, 96% AFUE, variable speed ECM blower, two-stage burner, 120V electrical, multi-positional configuration
• Coil and installation: 21" cased A-coil for 2.5–3 ton systems, 3/8" liquid line and 3/4" suction line; suitable for upflow, downflow, or horizontal installation

Product Highlights

Matched 2.5 ton system with 14.3 SEER2 cooling, 96% AFUE furnace, R32 refrigerant, multi-positional coil, and AHRI-certified combinations

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: AC-I-30AC14 / AC-I-3036ACL-21 / G96VTN0802120
• Country of Origin: China

Technical Specifications

• Brand: AciQ
• Model/MPN: AC-I-30AC14 / AC-I-3036ACL-21 / G96VTN0802120
• System type: Matched split system (condenser + cased evaporator coil + gas furnace)
• Cooling capacity: 2.5 Ton (30,000 BTU)
• SEER2: 14.3
• EER: 11.7
• Refrigerant: R32
• Refrigerant charge: 75.84 oz.
• Condenser compressor type: Rotary
• Condenser input voltage: 208/230V 1 Phase 60 Hz
• Condenser max breaker: 25 Amps
• Condenser min breaker: 17 Amps
• Condenser decibel level: 59 dBA
• Condenser liquid valve size: 3/8"
• Condenser suction valve size: 3/4"
• Furnace heating input: 80,000 BTU
• Furnace AFUE: 96%
• Furnace output (approx): 76,800 BTU
• Furnace blower motor: Variable speed ECM
• Furnace burner stages: Two
• Furnace configuration: Upflow / Downflow / Horizontal (multi-positional)
• Furnace input voltage: 120 V 1 Phase 60 Hz
• Furnace cabinet width: 21"
• Furnace height: 35"
• Furnace depth: 29.5"
• Coil SKU: AC-I-3036ACL-21
• Coil tonnage: 2.5 to 3 Ton
• Coil style: Cased A-coil
• Coil cabinet width: 21"
• Coil liquid line size: 3/8"
• Coil suction line size: 3/4"
• System configuration: Dedicated upflow, dedicated horizontal, dedicated downflow
• AHRI certificate number: 213148556
• Exhaust flue requirement: Plastic / PVC (for 96% furnaces)
• Country of origin: China
