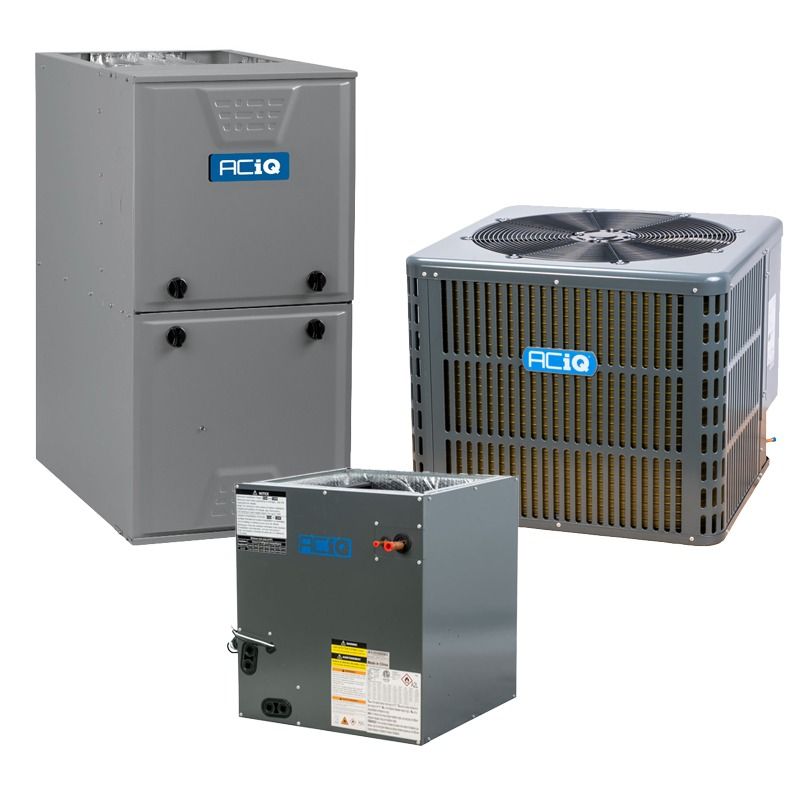

Aciq AC-I-30AC14 / AC-I-3036ACL-21 / G96CTN1002122 2.5 Ton 14.3 SEER2 96% AFUE Furnace and AC System 100,000 BTU (Multi-positional)

Product Description

Aciq AC-I-30AC14 / AC-I-3036ACL-21 / G96CTN1002122 is a matched HVAC system combining a 2.5 ton R32 central air condenser (14.3 SEER2) with a cased multi-positional evaporator coil and a 100,000 BTU two-stage gas furnace rated 96% AFUE. The system is pre-charged with R32, supports upflow, downflow, or horizontal installation, and includes a refrigerant leak mitigation kit for R32 A2L refrigerant.

• Condenser: 2.5 ton (30,000 BTU), 14.3 SEER2, rotary compressor, 208/230 V 1Ph 60 Hz, pre-charged with 75.84 oz R32
• Furnace: 100,000 BTU, 96% AFUE, two-stage burners, variable-speed ECM blower, 120 V 1Ph 60 Hz, up to 2160 CFM
• Evaporator coil: cased A-coil with factory-installed TXV, 3/8 in liquid line, 3/4 in suction line; multi-positional compatible

Product Highlights

Matched R32 2.5 ton condenser, cased evaporator coil, and 100,000 BTU two-stage 96% AFUE multi-positional furnace; includes R32 leak mitigation kit.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: AC-I-30AC14 / AC-I-3036ACL-21 / G96CTN1002122

Technical Specifications

• Brand: ACiQ
• MPN: AC-I-30AC14 / AC-I-3036ACL-21 / G96CTN1002122
• Product ID: 225403
• System type: Matched condenser, evaporator coil, and furnace system
• Condenser tonnage: 2.5 Ton
• Condenser cooling capacity: 30,000 BTU
• Condenser SEER2: 14.3
• Condenser EER2: 11.7
• Condenser refrigerant: R32 (A2L)
• Condenser pre-charge: 75.84 oz
• Condenser sound level: 59 dBA
• Condenser electrical: 208/230 V 1 Phase 60 Hz
• Condenser max breaker: 25 Amps
• Condenser min breaker: 17 Amps
• Condenser compressor type: Rotary
• Condenser dimensions (H x W x D in): 25" x 29.13" x 29.13"
• Condenser weight (lbs): 148.00
• Evaporator coil SKU: AC-I-3036ACL-21
• Coil type: Cased A-coil
• Coil tonnage range: 2.5 to 3 Ton
• Coil refrigerant: R32
• Coil liquid line size: 3/8"
• Coil suction line size: 3/4"
• Coil dimensions (H x W x D in): 23.58" x 21.02" x 21.02"
• Coil weight (lbs): 73.00
• Furnace model: G96CTN1002122
• Furnace heating capacity: 100,000 BTU
• Furnace AFUE: 96%
• Furnace configuration: Upflow / Downflow / Horizontal (multi-positional)
• Furnace blower motor: Variable speed (ECM)
• Furnace maximum CFM: 2160
• Furnace electrical: 120 V 1 Phase 60 Hz
• Furnace burner stages: Two
• Furnace fuel type: Natural gas (convertible to Propane with kit)
• Furnace exhaust flue: Plastic / PVC
• Furnace dimensions (H x W x D in): 35" x 21" x 29.5"
• Furnace weight (lbs): 179.00
• Factory features: Factory-installed TXV on coil; R32 refrigerant leak mitigation kit included
• AHRI certificate number: 213148727
• Compatibility notes: Condenser must be paired with compatible R32 evaporator coil or air handler; professional installation recommended
