Aciq AC-I-30AC14 / AC-I-3036ACL-21 / G96CTN0802120 2.5 Ton 14.3 SEER2 96% AFUE Furnace & AC System (21 in Cabinet Width)

Product Description

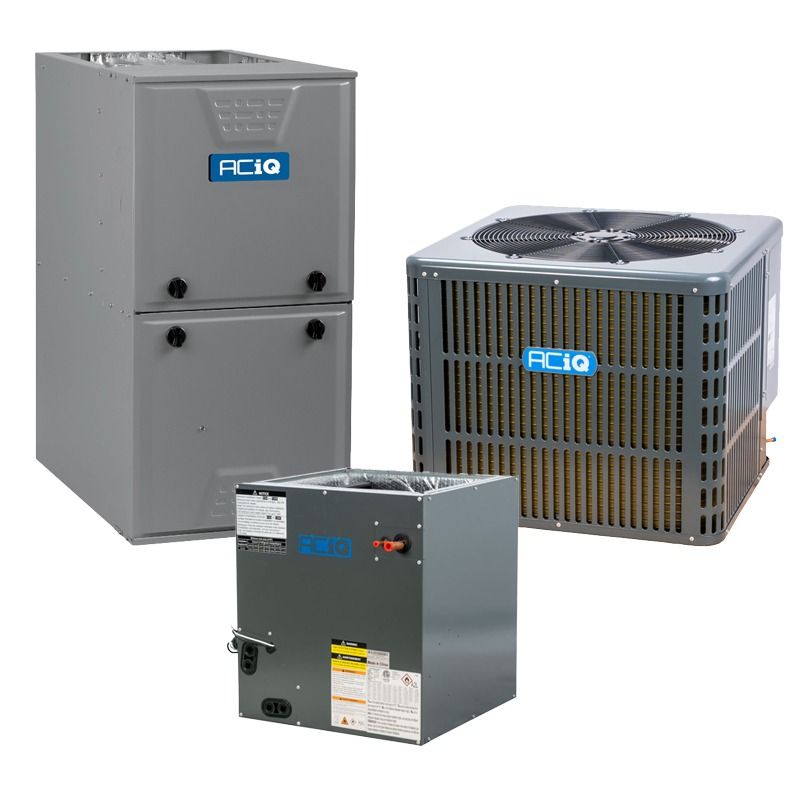

The ACiQ AC-I-30AC14 / AC-I-3036ACL-21 / G96CTN0802120 is a matched HVAC system combining a 2.5 ton 14.3 SEER2 R32 condenser, a multi-positional 80,000 BTU 96% AFUE two-stage gas furnace, and a 21 in cased A-coil evaporator with factory-installed TXV. The condenser is pre-charged for R32 and rated around 59 dBA; the furnace uses a variable speed ECM blower and supports upflow, downflow, and horizontal installations.

• Condenser: AC-I-30AC14 — 2.5 ton, 14.3 SEER2, R32 refrigerant, 75.84 oz charge, ~59 dBA, rotary compressor
• Furnace: G96CTN0802120 — 80,000 BTU, 96% AFUE, two-stage burner, variable speed ECM blower, multi-positional, 120 V
• Evaporator coil: AC-I-3036ACL-21 — cased A-coil, 21 in cabinet width, factory-installed TXV, compatible with R32

Product Highlights

Matched 2.5 ton condenser, cased 21 in evaporator coil with TXV, and 96% AFUE two-stage multi-positional furnace for residential HVAC installations using R32 refrigerant.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: AC-I-30AC14 / AC-I-3036ACL-21 / G96CTN0802120

Technical Specifications

• Brand: ACiQ
• Manufacturer Part Number: AC-I-30AC14 / AC-I-3036ACL-21 / G96CTN0802120
• System Type: Matched air conditioner, evaporator coil, and gas furnace system

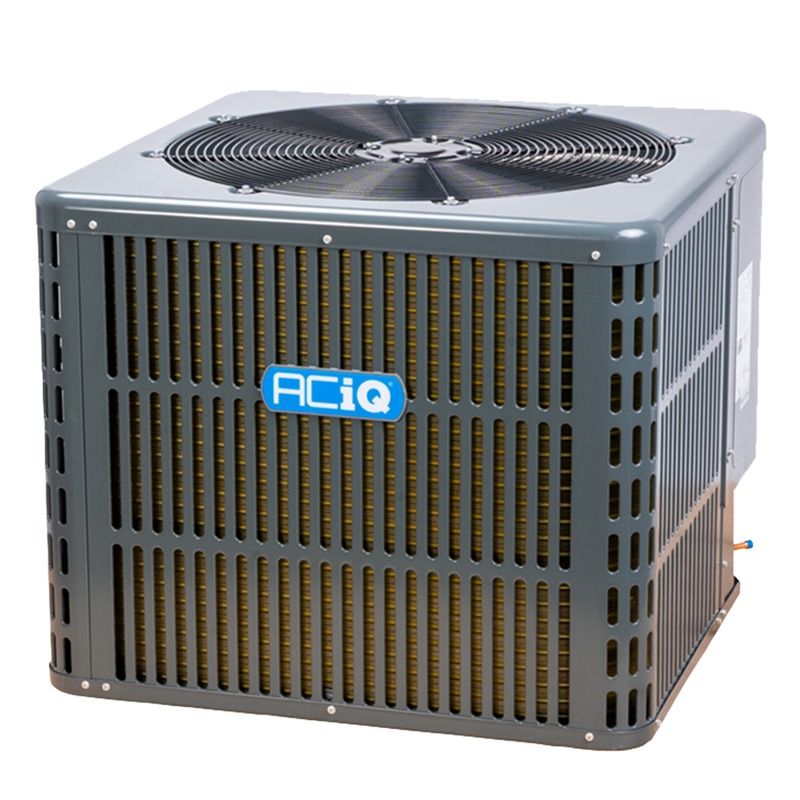

• Condenser Model: AC-I-30AC14
• Condenser Cooling Capacity: 30,000 BTU (2.5 Ton)
• Condenser SEER2: 14.3
• Condenser EER2: 11.7
• Condenser Refrigerant: R32 (A2L)
• Condenser Refrigerant Charge: 75.84 oz.
• Condenser Noise Level: 59 dBA
• Condenser Compressor Type: Rotary
• Condenser Liquid Line Size: 3/8 in
• Condenser Suction Line Size: 3/4 in
• Condenser Electrical: 208/230 V, 1 Phase, 60 Hz
• Condenser Breaker Requirements: Max 25 Amps, Min 17 Amps
• Condenser Dimensions (H x W x D): 25 in x 29.13 in x 29.13 in
• Condenser Weight: 148.00 lbs

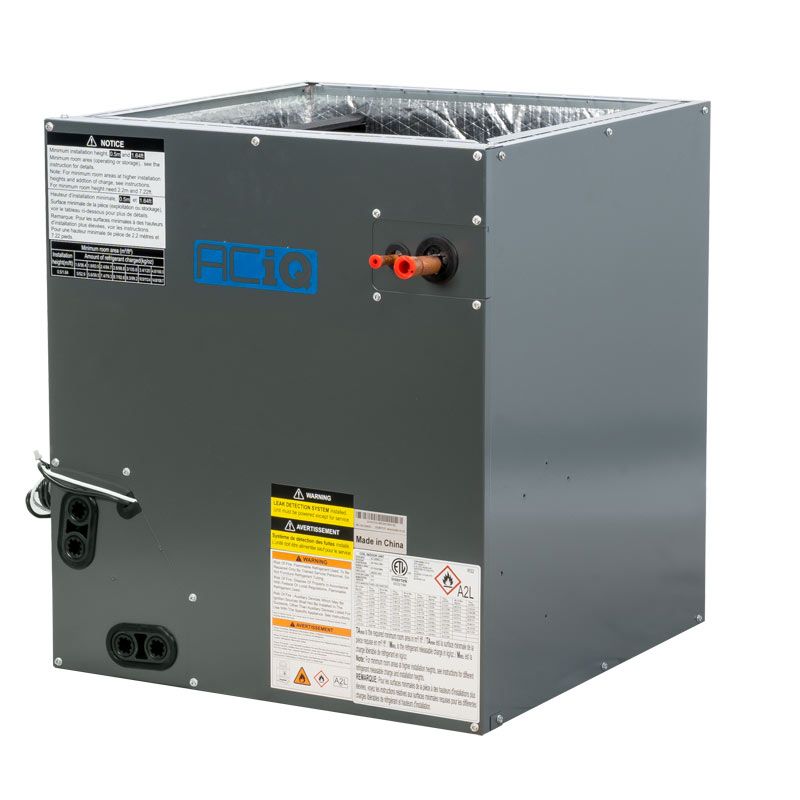

• Evaporator Coil Model: AC-I-3036ACL-21
• Coil Type: A-coil, cased
• Coil Cabinet Width: 21 in
• Coil Tonnage Range: 2.5 to 3 Ton
• Coil Refrigerant Compatibility: R32
• Coil Liquid Line Size: 3/8 in
• Coil Suction Line Size: 3/4 in
• Coil Dimensions (H x W x D): 23.58 in x 21.02 in x 21.02 in
• Coil Weight: 73.00 lbs
• Coil Features: Factory-installed TXV, all-aluminum construction (corrosion resistant)

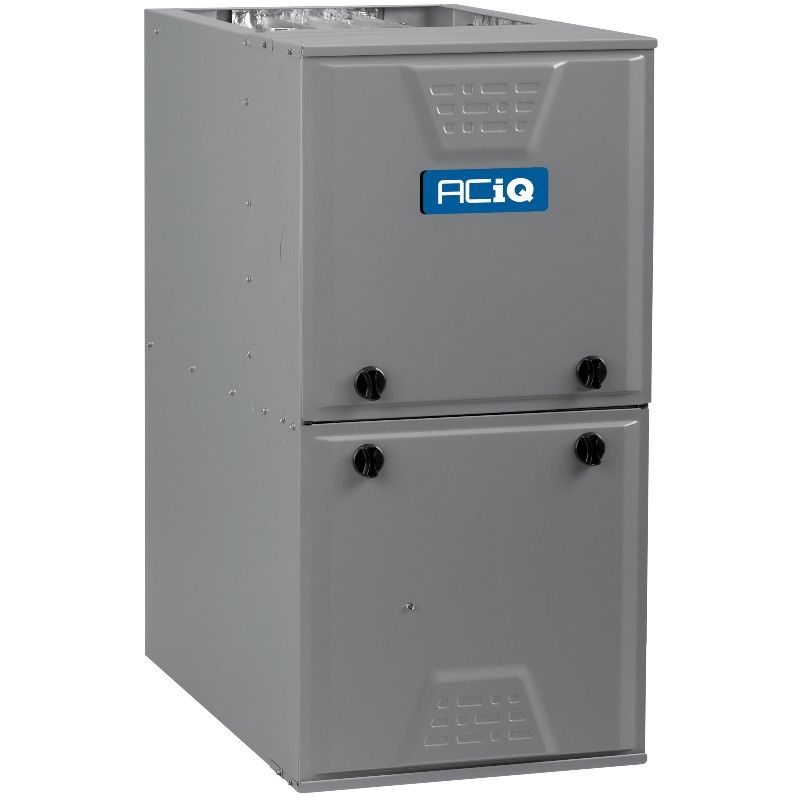

• Furnace Model: G96CTN0802120
• Furnace Heating Capacity: 80,000 BTU
• Furnace AFUE: 96%
• Furnace Blower Motor: Variable speed ECM
• Furnace Maximum CFM: 1945
• Furnace Configuration: Upflow / Downflow / Horizontal (multi-positional)
• Furnace Electrical: 120 V, 1 Phase, 60 Hz
• Furnace Burner Stages: Two
• Furnace Fuel Type: Natural gas (convertible to propane with kit)
• Furnace Dimensions (H x W x D): 35 in x 21 in x 29.5 in
• Furnace Weight: 152.50 lbs
• Furnace Exhaust Flue Requirement: Plastic / PVC
• AHRI Certificate (Furnace): 213148726
• Safety Notes: R32 is A2L refrigerant; requires compatible pairing and leak mitigation measures
