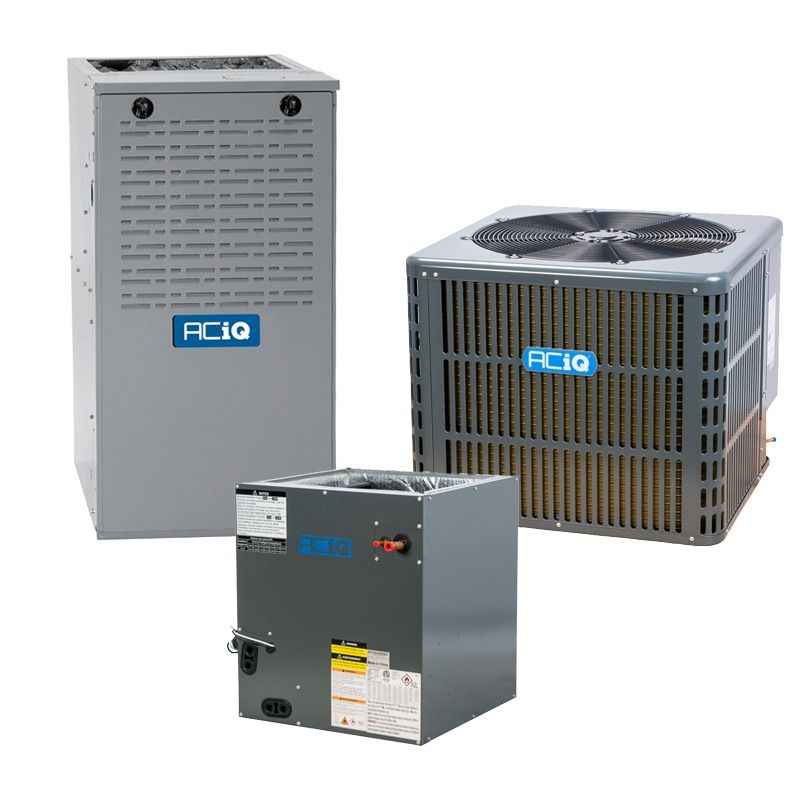

Aciq AC-I-30AC14 / AC-I-3036ACL-21 / G80CTL1102120 2.5 Ton 14.3 SEER2 100,000 BTU System

Product Description

AciQ AC-I-30AC14 / AC-I-3036ACL-21 / G80CTL1102120 is a matched 2.5 ton central HVAC system that combines a 14.3 SEER2 R32 outdoor condenser, a 100,000 BTU 80% AFUE two-stage multi-positional gas furnace, and a 21" cased evaporator coil. The system is pre-charged with R32 refrigerant and includes a leak mitigation kit. It supports upflow, downflow, and horizontal installations and uses a variable-speed ECM blower for airflow control.

• Condenser: 14.3 SEER2, 30,000 BTU cooling, pre-charged with R32 refrigerant; rotary single-stage compressor; ~59 dBA
• Furnace: 100,000 BTU input (see notes), 80% AFUE, two-stage burner, variable-speed ECM blower, multi-positional upflow/downflow/horizontal
• Coil: 21" cased evaporator coil with factory-installed TXV, compatible with R32; system includes R32 refrigerant leak mitigation kit

Product Highlights

Matched 2.5 ton R32 condenser, two-stage furnace, and 21" cased evaporator coil; multi-positional configuration with variable-speed blower.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: AC-I-30AC14 / AC-I-3036ACL-21 / G80CTL1102120

Technical Specifications

• Brand: AciQ
• Manufacturer Part Number: AC-I-30AC14 / AC-I-3036ACL-21 / G80CTL1102120
• System tonnage: 2.5 Ton
• SEER2: 14.3
• EER2: 11.7
• Condenser cooling capacity: 30,000 BTU
• Condenser refrigerant: R32 (pre-charged)
• Refrigerant charge (condenser): 75.84 oz.
• Condenser compressor type: Rotary (single stage)
• Condenser decibel level: 59 dBA
• Input Voltage: 208/230V 1 Phase 60 Hz
• Condenser breaker requirements: Min 17 Amps, Max 25 Amps
• Condenser liquid valve size: 3/8"
• Condenser suction valve size: 3/4"
• Furnace AFUE: 80%
• Furnace input (BTU): 110,000
• Furnace output (BTU): 89,000 (approximate)
• Furnace blower motor: Variable Speed - ECM
• Burner stages: Two
• Ignition: Direct ignition with silicon nitride hot surface ignitor
• Furnace configuration: Multi-positional (Upflow/Downflow/Horizontal)
• Fuel type: Natural Gas (field-convertible to propane with optional LP kit)
• Furnace AHRI certificate: 213148665
• Furnace exhaust flue requirement: Metal
• Coil style: Cased evaporator coil (A-coil) with factory-installed TXV and all-aluminum construction
• Coil tonnage range: 2.5 to 3 Ton
• Coil cabinet width: 21"
• Coil refrigerant compatibility: R32
• Included accessories: R32 refrigerant leak mitigation kit
• Furnace dimensions (H x W x D): 33 1/3" x 21" x 29"
• Condenser dimensions (H x W x D): 25" x 29.13" x 29.13"
• Coil dimensions (H x W x D): 23.58" x 21.02" x 21.02"
• Furnace weight: 152.00 lbs
• Condenser weight: 148.00 lbs
• Coil weight: 73.00 lbs
• SKUs: Condenser SKU: AC-I-30AC14; Coil SKU: AC-I-3036ACL-21; Furnace SKU: G80CTL1102120
