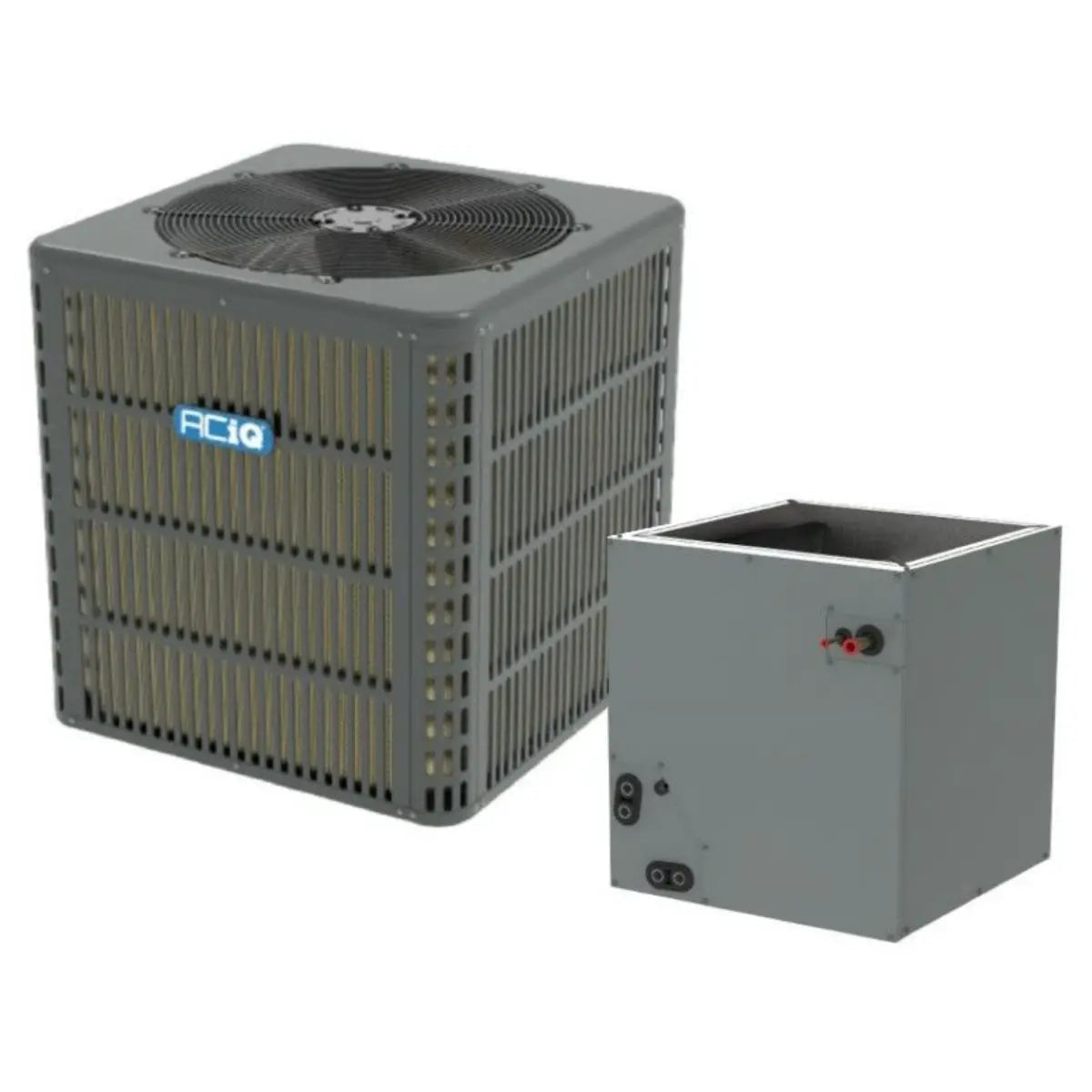

Aciq AC-I-30AC14 / AC-I-3036ACL-21 2.5 Ton 14.3 SEER2 Air Conditioner (21 inches Multi-Positional Cased Coil)

Product Description

The Aciq AC-I-30AC14 / AC-I-3036ACL-21 is a packaged 2.5 ton (30,000 BTU) air conditioning system that combines an outdoor condenser and a 21" multi-positional cased evaporator coil. The condenser is a single-stage rotary compressor unit precharged for R32 refrigerant and rated 14.3 SEER2 with 208/230V 1 Phase 60 Hz electrical. The coil is an all-aluminum A-coil with a factory-installed TXV and includes an R32 leak mitigation kit.

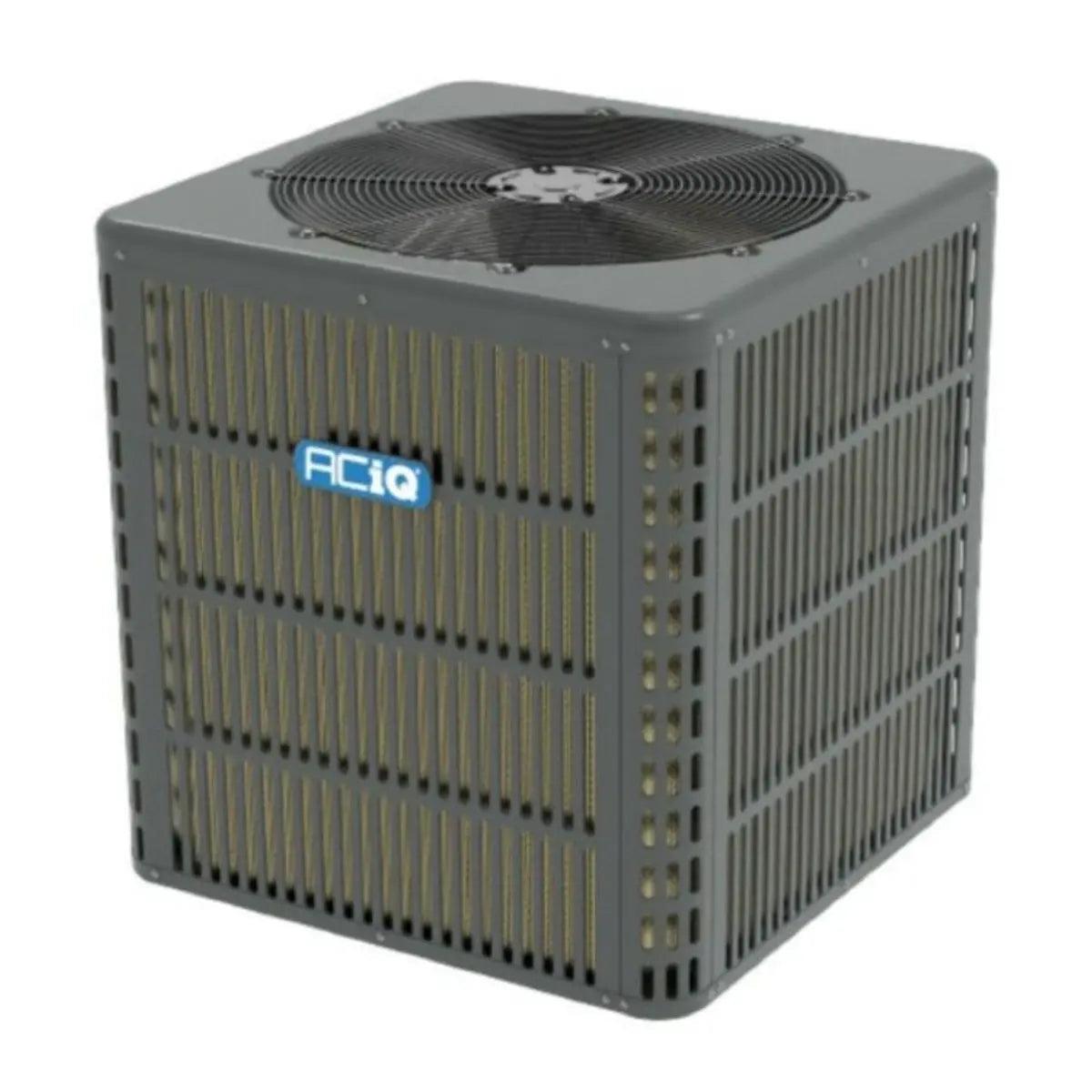

• 30,000 BTU (2.5 ton) condenser, 14.3 SEER2, single-stage rotary compressor, precharged for R32

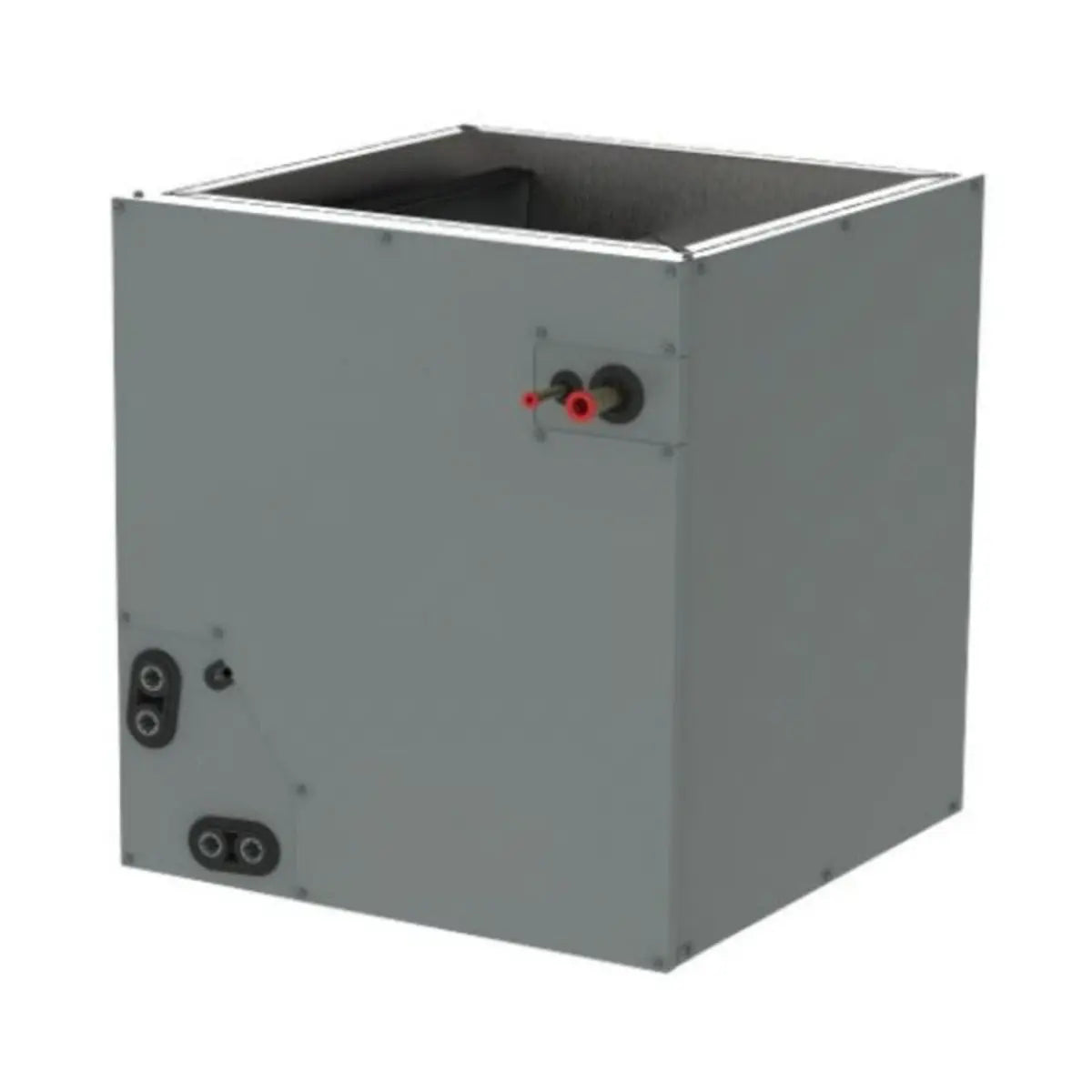

• 21" multi-positional cased A-coil with factory-installed TXV, all-aluminum construction, includes R32 leak mitigation kit
• Electrical 208/230V 1 Phase 60 Hz; outdoor sound level ~59 dBA; recommended breaker range 17–25 Amps

Product Highlights

Packaged Aciq 2.5 ton R32 system with 21" multi-positional coil, factory TXV, 14.3 SEER2, 208/230V single-phase

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: AC-I-30AC14 / AC-I-3036ACL-21

Technical Specifications

• Model / Kit: AC-I-30AC14 / AC-I-3036ACL-21
• Condenser SKU: AC-I-30AC14
• Coil SKU: AC-I-3036ACL-21
• Cooling Capacity: 30,000 BTU (2.5 Ton)
• SEER2: 14.3
• Refrigerant: R32
• Refrigerant Charge: 75.84 oz.
• Compressor Type: Rotary
• Condenser Stages: Single Stage
• Outdoor Sound Level: 59 dBA
• Liquid Valve Size (Condenser): 3/8"
• Suction Valve Size (Condenser): 3/4"
• Liquid Line Size (Coil): 3/8"
• Suction Line Size (Coil): 3/4"
• Input Voltage: 208/230V 1 Phase 60 Hz
• Max Breaker Size: 25 Amps
• Min Breaker Size: 17 Amps
• Tonnage: 2.5 Ton
• Condenser Dimensions (H x W x D): 25" x 29.13" x 29.13"
• Coil Dimensions (H x W x D): 23.58" x 21.02" x 21.02"
• Condenser Weight: 148 lb
• Coil Weight: 73 lb
• Coil Style: A-Coil (cased evaporator)
• Cabinet Width (coil): 21"
• Installation Orientation (coil): Multi-positional (upflow, downflow, horizontal)
• TXV: Factory-installed (coil)
• AHRI Certified: Yes (coil)
• Manufacturer: ACiQ
