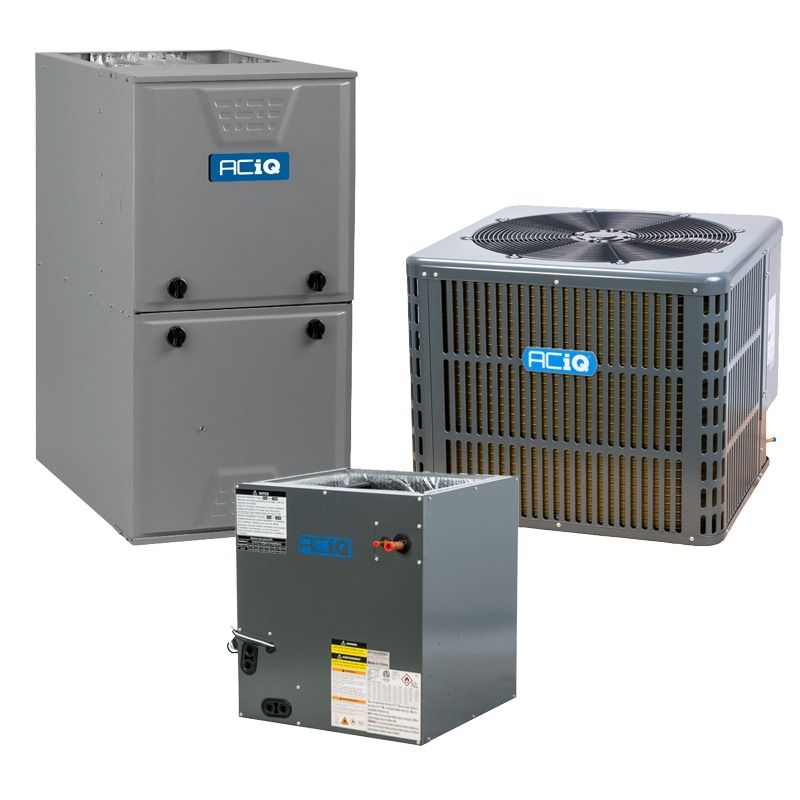

Aciq AC-I-30AC14 / AC-I-3036ACL-17 / G96VTN0601716 2.5 Ton 14.3 SEER2 96% AFUE 60,000 BTU Multi-Positional HVAC System

Product Description

ACiQ AC-I-30AC14 / AC-I-3036ACL-17 / G96VTN0601716 is a matched 2.5 ton split HVAC system combining a 14.3 SEER2 R32 condenser, a 17.5 inch cased evaporator coil, and a 60,000 BTU 96% AFUE multi-positional gas furnace. The condenser is pre-charged with R32 and includes a refrigerant leak mitigation kit, the furnace features a variable-speed blower and two-stage burner, and the coil supports R32 with 3/8" liquid and 3/4" suction lines.

• Condenser: 2.5 ton, 14.3 SEER2, R32 pre-charged, rotary single-stage compressor, condenser electrical 208/230V 1 phase
• Furnace: 60,000 BTU input, 96% AFUE, variable-speed blower, two-stage burner, multi-positional (upflow/downflow/horizontal), furnace electrical 120V 1 phase
• Coil: 17.5" cased A-coil compatible with R32, liquid line 3/8" and suction line 3/4"; system includes R32 leak mitigation kit

Product Highlights

Matched 2.5 ton R32 split system for central heating and cooling with multi-positional 60,000 BTU 96% AFUE furnace and 17.5" cased coil; condenser ~59 dBA.

Product Information

Standard Information

• Brand: ACIQ
• Manufacturer Part Number: AC-I-30AC14 / AC-I-3036ACL-17 / G96VTN0601716
• Country of Origin: China

Technical Specifications

• Brand: ACiQ
• Model / MPN: AC-I-30AC14 / AC-I-3036ACL-17 / G96VTN0601716
• System tonnage: 2.5 Ton
• Cooling capacity (BTU): 30,000 BTU
• SEER2: 14.3
• EER2: 11.7
• Condenser refrigerant: R32 (pre-charged)
• Condenser noise: Approximately 59 dBA
• Input Voltage (Condenser): 208/230V 1 Phase 60 Hz
• Condenser breaker requirements: Max 25 Amps / Min 17 Amps
• Condenser compressor type: Rotary (single stage)
• Number of compressors: 1
• Furnace input (BTU): 60,000 BTU
• Furnace AFUE: 96%
• Furnace blower motor: Variable speed
• Furnace burner stages: Two
• Furnace configuration: Multi-positional (upflow/downflow/horizontal)
• Input Voltage (Furnace): 120V 1 Phase 60 Hz
• Furnace exhaust flue requirement: Plastic / PVC
• Coil cabinet width: 17.5 inches
• Coil style: Cased A-coil
• Coil refrigerant compatibility: R32
• Coil liquid line: 3/8"
• Coil suction line: 3/4"
• Included accessories: R32 refrigerant leak mitigation kit
• AHRI Certificate (Furnace): 213148548
• Power phase: 1 Phase
• EER: 11.7
• Country of origin: China
• System configuration: Matched split system (condenser, evaporator coil, furnace)
